Explosion Proof Switch - Class I, II, III - 480V AC 3PH Wye, 4-pole - 30A Rating - 20 HP Rating
Explosion Proof Switch - Class I, II, III - 480V AC 3PH Wye, 4-pole - 30A Rating - 20 HP Rating
| EPSW-3PH-480V-4P5W-30A Explosion Proof Switch | Ratings |
| Listing: United States | Class I, Div 1&2 Groups B,C,D |
| Dimensions: 5.75" W x 8.06" H x 6.31" D | Class II, Div 1&2 Groups E,F,G |
| Weight: 11 lbs | Class III |
| Voltage: 480V AC 3PH | NEMA 3, 4, and 4X |
| Configuration: Wye | NEMA 7 (B,C,D), 9 (E,F,G) |
| Maximum Amps: 30 | UL 98 |
| Horsepower Rating: 20 | Â |
| Poles: 4P | Â |
| Enclosure Material: Copper-Free Aluminum | |
| Cover Bolt Materials: Stainless Steel | |
| Gasket Material: Silicone | |
| Exterior Finish: Grey Powder Polyester Paint | |
| Mounting: Flat Surface | |
| Hub Size: 1" NPT Hub or 3/4" NPT Hub |
Made in the USA

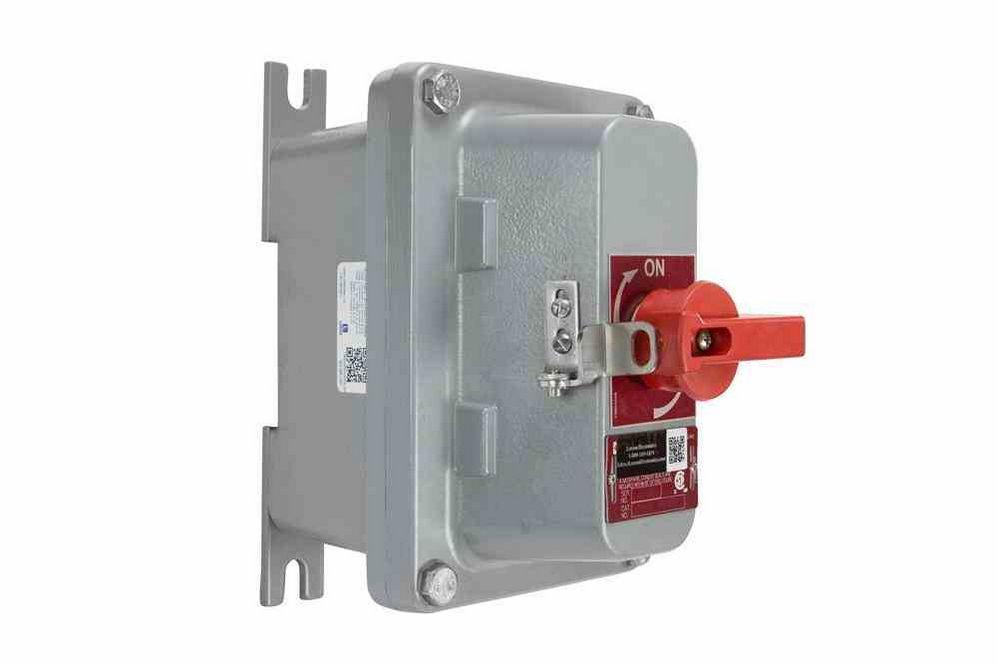

The EPSW-3PH-480V-4P5W-30A from Larson Electronics is a 480V AC three-phase explosion proof switch with a 30 amp and 20 horsepower rating. This 4-pole explosion proof switch is rated Class I Divisions 1 & 2 Groups B, C and D, Class II Divisions 1 & 2 Groups E, F and G, and Class III. This unit is available with multiple hub options including 1" and 3/4" NPT hub sizes. The EPSW-3PH-480V-4P5W-30A can be used in hazardous work locations both indoors and outdoors and can also be used in areas where frequent washdowns, heavy rain or water spray occur.
The EPSW-3PH-480V-4P5W-30A explosion proof switch features a copper-free aluminum enclosure to protect the internal components from water damage and to make the unit explosion proof and safe to use in hazardous areas. This 4-pole 480V 3PH switch features a Wye configuration, stainless steel cover bolts and a silicone gasket to seal out moisture. The exterior is finished with electrostatically applied grey powder polyester paint for long-lasting durability.
Applications: Suitable for use as motor disconnects or industrial control panel disconnects on service entrance equipment, panelboards, switchboards, industrial control equipment and motor control centers.
|
||||
