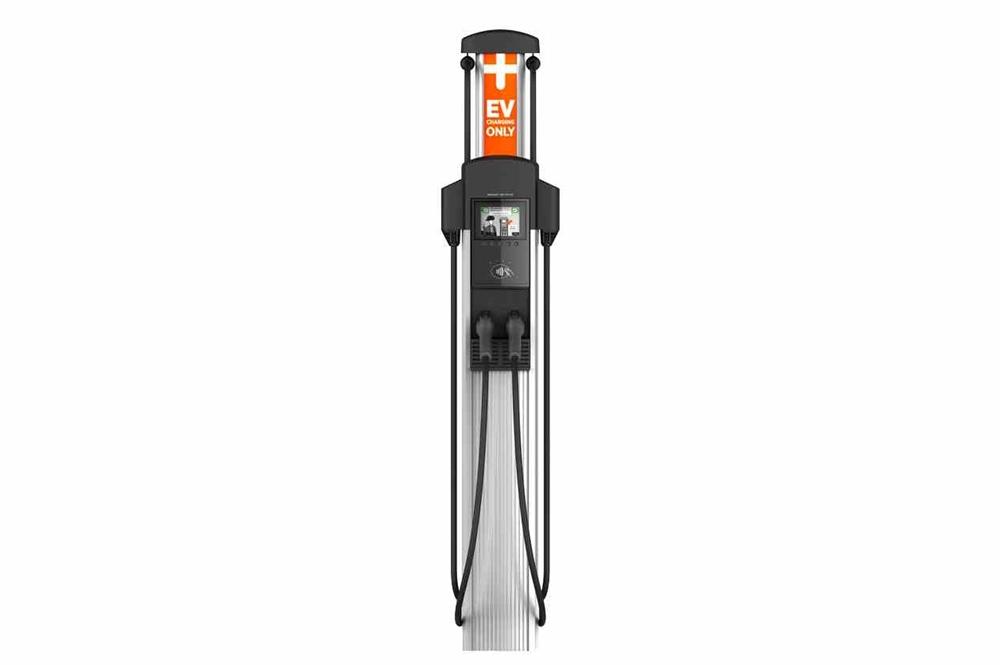

Dual Station EV Charger - 240V, 1-phase - Level 2 Charger, (2) Ports - Pedestal Mount/Outdoor Rated

LARSON ELECTRONICSSKU: PL3-EV-CHS-GT-WR-1P-240V-7.2KW-2X-M1
filler

Price:
Sale price$31,250.00

Description

Specifications / Additional Information
EV-CHS-GT-WR-1P-240V-7.2KW-2X-M1 Level 2 Electric Vehicle Charging Station Ratings/Approvals
Unit Type: Dual EV Charging Station Energy Star Certified
Dimensions: 71.3" x 18.5" x 13.7" Type 3R Indoor and Outdoor Enclosure Protection
Weight: - Overhead Cable Management System
Voltage: 240V AC, 1-phase EMC: FCC Part 15 Class A
Maximum Output: 7.2 kW
Amps: 30A @ 240V AC x 2
Charging Level: Level 2
Input Power Connection: (2) Independent 40A Branch Circuits
Required Service Panel Breaker: (2) 40A Dual Pole - Non GFCI
Power Module Ports: Double
Networking: Included Integral LTE Category 4 Modem w/ Automatic Configuration for Gateway or Non-gateway
Local Area Network: 2.4 GHz Wi-Fi (802.11 b/g/n)
Touchscreen: 5.7" LCD - Full Color, 640 x 480, 30 fps - UV Protected
Charge Station Management: Cloud/Remote, 24/7 Station Monitoring
Availability: Mobile App and In-dash Integration
Charging Rate: Set by Property Owner
Charging Payment Method: Official CP Mobile App (Credit System) or CP Card
Card Reader: ISO 15693, ISO 14443, NFC
Surge Protection: 6kV @ 3,000A
Ground Fault Protection: 20 mA CCID w/ Auto Retry
Open Safety Ground Detection: Continuously Monitors Presence of Safety (Green Wire) Ground Connection
Plug-out Detection: Power Terminated per SAE J1772 Specifications
Power Measurement Accuracy: +/- 2% From 2% to Full Scale (30A)
Power Report/Store Interval: 15 Minute, Aligned to Hour
Station Power: 8W (Standby), 15W Max (Operation)
Ambient Operating Temp Range: -40°C to 50°C
Storage/Non-Operating Temp Range: -40°C to 60°C
Operating Humidity: Up to 85% @ 50°C - Non-condensing
Non-operating Humidity: Up to 95% @ 50°C - Non-condensing
Terminal Block Temperature Rating: 105°C
Materials: -
Mounting: Pedestal Mount
Cable Length: (2) 6 Feet
Connector: (2) SAE J1772
Wiring: 5-wire (L1, L1, L2, L2, Earth)
Locking Holster: (2)
' Product Overview '
Made in the USA The EV-CHS-GT-WR-1P-240V-7.2KW-2X-M1 Dual Station EV Charger from Larson Electronics is a powerful charging station for electric vehicles in commercial sites. This station has two ports and offers Level 2 charging with 7.2kW output. Compatible with single-phase 240V AC, the system features a pedestal base for easy mounting without a stand. This EV charging station is equipped with two SAE J1772 connectors. The EV-CHS-GT-WR-1P-240V-7.2KW-2X-M1 is an EV charging station for commercial areas. This system features two EV charging ports on a single station secured on a pedestal base. The double-port station operates on single-phase 240V AC and delivers 7.2kW (240V AC @ 30A x 2). The Level 2 charger requires two independent 40-amp branch circuits during installation. External GFCI should not be provided, as it may conflict with internal GFCI (CCID). Wiring configuration is 5-wire: L1, L1, L2, L2, Earth. Customers can make selections, see real-time charging updates and view instructional videos using a 5.7" LCD screen (full color, 640 x 480, 30 fps and UV protected). A cloud-based management platform is available for 24/7 station monitoring by the property owner, as well as managing authentication and payment information. The EV charging station features a mobile app for checking real-time availability, managing payments and charging status of the station. Payments: There are two ways for customers to pay for the EV charging service (applicable to stations with a fee): ChargePoint mobile app or ChargePoint card. To pay with any of the two options, simply tap your card or mobile phone with the official mobile app open and signed into your account on the station. This action unlocks the connector, allowing you to plug the unit into the vehicle. After charging is complete, tap the card or mobile phone with the official mobile app open and signed into your account on the station to finish the session (charging costs will appear on the screen). Cables/connectors: Two 6-foot charging cords are available on the station. Equipped with locking holsters, there are two SAE J1772 connectors available for charging two EVs. Mounting: All system components are secured on a pedestal base that does not need to be mounted to a stand during installation. Suggested Applications: Electric vehicle charging, commercial sites, parking lots and more.


EV-CHS-GT-WR-1P-240V-7.2KW-2X-M1 Level 2 Electric Vehicle Charging Station Ratings/Approvals
Unit Type: Dual EV Charging Station Energy Star Certified
Dimensions: 71.3" x 18.5" x 13.7" Type 3R Indoor and Outdoor Enclosure Protection
Weight: - Overhead Cable Management System
Voltage: 240V AC, 1-phase EMC: FCC Part 15 Class A
Maximum Output: 7.2 kW
Amps: 30A @ 240V AC x 2
Charging Level: Level 2
Input Power Connection: (2) Independent 40A Branch Circuits
Required Service Panel Breaker: (2) 40A Dual Pole - Non GFCI
Power Module Ports: Double
Networking: Included Integral LTE Category 4 Modem w/ Automatic Configuration for Gateway or Non-gateway
Local Area Network: 2.4 GHz Wi-Fi (802.11 b/g/n)
Touchscreen: 5.7" LCD - Full Color, 640 x 480, 30 fps - UV Protected
Charge Station Management: Cloud/Remote, 24/7 Station Monitoring
Availability: Mobile App and In-dash Integration
Charging Rate: Set by Property Owner
Charging Payment Method: Official CP Mobile App (Credit System) or CP Card
Card Reader: ISO 15693, ISO 14443, NFC
Surge Protection: 6kV @ 3,000A
Ground Fault Protection: 20 mA CCID w/ Auto Retry
Open Safety Ground Detection: Continuously Monitors Presence of Safety (Green Wire) Ground Connection
Plug-out Detection: Power Terminated per SAE J1772 Specifications
Power Measurement Accuracy: +/- 2% From 2% to Full Scale (30A)
Power Report/Store Interval: 15 Minute, Aligned to Hour
Station Power: 8W (Standby), 15W Max (Operation)
Ambient Operating Temp Range: -40°C to 50°C
Storage/Non-Operating Temp Range: -40°C to 60°C
Operating Humidity: Up to 85% @ 50°C - Non-condensing
Non-operating Humidity: Up to 95% @ 50°C - Non-condensing
Terminal Block Temperature Rating: 105°C
Materials: -
Mounting: Pedestal Mount
Cable Length: (2) 6 Feet
Connector: (2) SAE J1772
Wiring: 5-wire (L1, L1, L2, L2, Earth)
Locking Holster: (2)
