12W Explosion Proof Handheld LED Light - 120-277VAC Stepped Down 12/24VDC - Trunnion Mount
12W Explosion Proof Handheld LED Light - 120-277VAC Stepped Down 12/24VDC - Trunnion Mount
常规价格
$6,892.00 CAD
常规价格
促销价
$6,892.00 CAD
结账时计算的运费。
Specifications / Additional Information
| EXHL-TRN-LE1-XLV-C1D1-150 Explosion Proof LED Light Fixture w/ Adjustable Trunnion Mount | Ratings/Approvals |
| Lamp Type: LED | Listed for United States, Canada, Europe, Asia |
| Dimensions: 8"L x 6"W x 14"H | Class I, Div. 1 & 2, Groups B, C, D |
| Watts: 12W | Class I, Zones 1 & 2, Groups IIB+H2, IIA |
| Voltage:120-277V AC Stepped Down to 12V DC or 24V DC | Class II, Div. 1 & 2, Groups E, F ,G |
| Lumens: 1,350 | Class III, Div. 1 & 2 |
| Luminous Efficacy: 110 Lm/W | NEMA Type 3, 4, 4X, 7 (B,C,D), 9 (E,F,G) |
| LED Light Color: 6000K - White | ATEX Ex II 2 G / D |
| LED Life Expectancy: 50,000 hours | IECEx db IIC Gb |
| Lighting Configuration: 10° Spot or 40° Flood | IECEx tb IIC Db IP66 |
| Spot Beam: 800`L x 140`W | |
| Flood Beam: 300`L x 225`W | |
| Ambient Operating Temp Range: -40°C to +60°C | |
| Wiring: 150` 12/2 SOOW Between Transformer & Light - 10` 16/3 SOOW Between Transformer & Plug | |
| Cord Cap Options: 15-Amp 5-15 (125V), 20-Amp 5-20 (125V), or 20-Amp 6-20 (250V) | |
| Housing Material: Aluminum | |
| Housing Color: Powder Coated - Grey | Toll Free:Â 1-800-369-6671 |
| Lens Material: Borosilicate Glass | Intl:Â 1-903-270-1187 |
| Mounting: Adjustable Trunnion Mount | E-mail:Â |

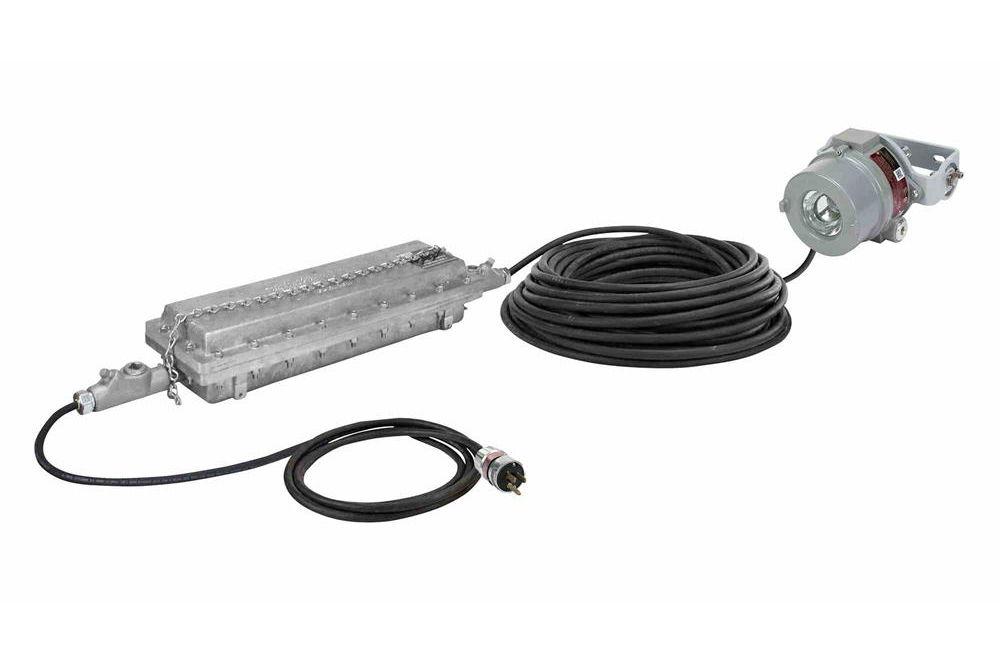

The EXHL-TRN-LE1-XLV-C1D1-150 from Larson Electronics is an Explosion Proof LED Light Fixture that operates on 120-277V AC that is stepped down to 12V DC or 24V DC via an inline transformer and that produces 1350 lumens while drawing only 12 watts. The EXHL-TRN-LE1-XLV-C1D1-150 is Class I, Divisions 1 & 2, Groups B, C, D, Class I, Zones 1 & 2, Groups IIB+H2, IIA, Class II, Divisions 1 & 2, Groups E, F ,G and Class III Divisions 1 & 2 rated for hazardous areas and is listed for use worldwide including the United States, Canada, Europe and Asia. This explosion proof LED light fixture also features an adjustable trunnion mount, allowing operators to tilt the light after mounting.
The EXHL-TRN-LE1-XLV-C1D1-150 produces 1,350 lumens of high-intensity LED light for illumination within hazardous areas and potentially explosive work environments. This explosion proof LED light fixture operates on voltages ranging from 120-277V AC. This input voltage is then stepped down to either 12V DC or 24V DC to operate the light via an inline transformer. The transformer is encapsulated to make it weatherproof, but it is NOT explosion proof and must remain located outside of the hazardous area. With 150` of 12/2 SOOW cable between the light and the encapsulated transformer, there is plenty of room to move around the hazardous work area while keeping the transformer in a safe location. There is 10` of 16/3 SOOW between transformer and plug. The EXHL-TRN-LE1-XLV-C1D1-150 is available in two lighting configurations; spot and flood. The spot configuration features a 10° beam that measures 800`L and 140` W. The flood configuration throws a 40° beam that measures 300`L and 225`W.
This explosion proof LED fixture is supported by an adjustable trunnion mount. Operators may securely and quickly mount the light for hands-free lighting in hazardous locations and confined spaces. After mounting, operators can adjust the angle of the LED fixture by tilting the light head up and down to reach the desired position. This versatile mounting system is ideal for industrial work that requires gloves. When a gloved hand is supporting the light through the opening of the trunnion mount, operators may use the LED fixture as a handheld unit for robust control.
LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life.
LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps.
Heat Management: Heat is the single largest factor in premature LED failure and color shifting. These LED units contain advanced drivers which use pulse width modulation to control heat buildup rather than simple voltage regulators which are typically harsh on sensitive electronics and can contribute to early LED failure. These units automatically sense the temperature of each LED and adjust the energy frequency or "duty cycle" accordingly to maintain heat levels within acceptable ranges. This system in essence flashes current at an extremely fast on and off rate to each LED based upon the LED`s core temperature. This flash rate is too fast to detect with the human eye, but provides precise control of the current flowing to each LED and thus the heat it generates. This allows the LEDs to be driven at up to 100% capacity without overheating or visible loss of light output. The LEDs are always driven at the same voltage but the duty cycle, however, is changed to alter how long the LEDs are actually on or off. The end result is more light with less heat and longer LED life with an average 70% lumen maintenance after 50,000 hours.
|
|||||||||||||
