Explosion Proof LED Bug Eyes w/ Exit Sign - Class I, II, III - 120-277V - 180 Mins Emergency Runtime - IP65/N4X
Explosion Proof LED Bug Eyes w/ Exit Sign - Class I, II, III - 120-277V - 180 Mins Emergency Runtime - IP65/N4X
| EXP-EMG-EXT-3L-6.5W-LED Explosion Proof Emergency LED Bug Eyes w/ Exit Sign | Â Ratings |
| Listing: United States, Canada | Class I, Division 1 Groups C, D |
| Lamp Technology: LED | Class I, Zone 1 Groups IIA, IIB |
| Lamp Qty: (2) | Class II, Division 1 Groups E, F, G |
| Dimensions: 23.88" x 19.75" x 5.63" | Class III |
| Weight: 40.5 lbs | NEMA 4X |
| Voltage: 120-277V AC, 60Hz | IP65 |
| Total Watts: 9.66W | Suitable for Wet Locations |
| Single-lamp Watts: 4.83W | Horizontal and Vertical Adjustable |
| Total Lumens: 841.56 lms | 180 Mins Emergency Runtime |
| Single-lamp Lumens: 420.78 lms | Captive, Hinged-access Door |
| Luminous Efficacy: 87.12 Lm/W | Â |
| LED Life Expectancy: 50,000 Hours | Â |
| Color Temperature: 5672K - White | Â |
| CRI: 72 | Â |
| Lamp Type: - | Â |
| Lamp Base: - | Â |
| Replacement Lamp: - | Â |
| Beam Angle: - | Â |
| Lighting Configuration: Spot | Â |
| Emergency Runtime: 180 Minutes | |
| Battery: NiCad Rechargeable Battery | |
| Safety: Push-to-Test, Pilot Lights | |
| Power Efficiency: - | |
| Power Factor: - | |
| Sign Type: Single Face | |
| Sign Lettering: EXIT (Red) | |
| Amps: 0.08A @ 120V, 0.04A @ 240V, 0.34A @ 277V | |
| Operating Temperature Range: 10°C to 45°C | |
| Temp Rating: T6 | |
| Materials: A360 Copper-free Aluminum, Acrylic, Stainless Steel, Neoprene | |
| Finish: Baked-on Gray Epoxy Finish | Intl:Â 1-214-616-6180 |
| Mounting: Wall | |
| Hubs: (3) 1" NPT |

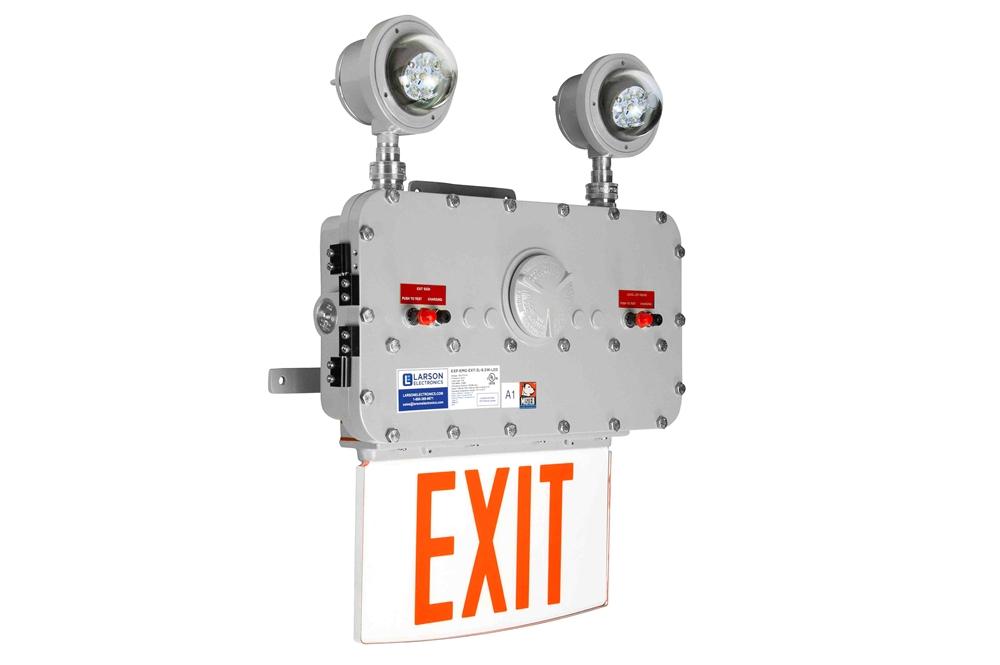

| The EXP-EMG-EXT-3L-6.5W-LED Explosion Proof LED Bug Eyes w/ Exit Sign from Larson Electronics is an ideal emergency lighting solution for hazardous locations where failsafe lighting is required. Equipped with two LED spot lights and a single-face exit sign, the unit operates on 120-277V AC, 60Hz. The NEMA 4X explosion proof system features up to 180 mins (3 hours) of battery-powered emergency operation. The EXP-EMG-EXT-3L-6.5W-LED is an ideal solution for operators who wish to ensure their hazardous workspaces utilize the most effective and reliable safety lighting options available. Under normal conditions, this emergency lamp uses normal external power to illuminate its two, 4.83-watt LED lamps. The dual LED spot lights offer a total of 841.56 lumens, with a color temperature rating of 5672K. In the case of power outages or in any situation where power is interrupted, this unit automatically switches to a battery backup which will power the unit for 180 minutes (3 hours) or until power is restored. Once power is restored a built in charger will return the unit to a fully charged state within acceptable UL time limits. This emergency exit light is multi-voltage capable and can operate with voltages ranging from 120-277V@ 60Hz. This unit's housing is constructed of A360 copper-free aluminum with a baked-on gray epoxy finish for durability. The sign is made of acrylic and hardware components are stainless steel. The EXP-EMG-EXT-3L-6.5W-LED can withstand temperature variances ranging from 10° to 45°C. An integrated pilot light indicates the presence of AC current and a test switch allows easy confirmation of proper emergency operation. The single-face, edge-lit sign features red lettering with the word "EXIT". This explosion proof lighting solution carries NEMA 4X and IP65 ratings. Suitable for wet locations, the unit is designed for Class I, Division 1; Class I, Zone 1; Class II, Division 1 and Class III combustible sites. Emergency Battery Backup: This explosion proof emergency exit lighting fixture carries an integral sealed, Nickel-Cadmium battery backup power supply. When external power is cut due to outages or accidents this lamp automatically switches to its battery backup which will power the LED bulbs for 180 minutes. The battery is protected from deep discharge by solid state circuitry which senses low voltage and turns off the unit before battery damage can occur. LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life. LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps. Hubs: The explosion proof LED system contains a total of three, 1" NPT hubs. One, 1" NPT hub can be found on the left and right side (total of two hubs). One, 1" NPT hub is located at the top center of the unit. Mounting: The EXP-EMG-EXT-3L-6.5W-LED is compatible with wall or surface mounting applications, which is facilitated by a mounting bracket with two openings. Applications: Manufacturing, hazardous locations, industrial, warehouse, wet areas or locations where combustible dusts, fibers or flying are present or where explosive gases or vapors may be present. |
