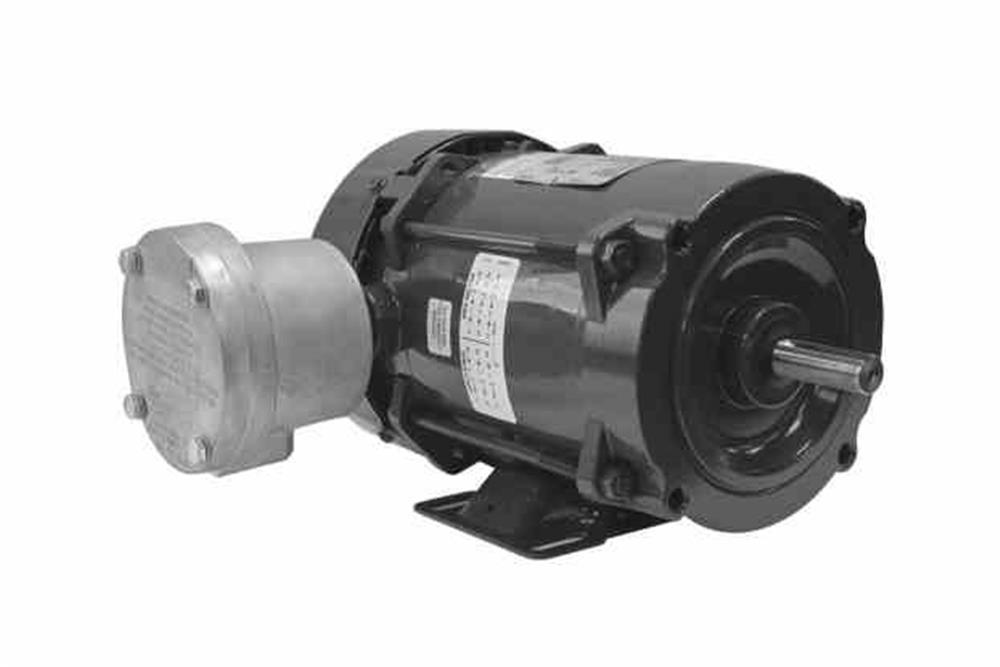

1/2 HP Explosion Proof Motor - Class I, II - 115V 1PH 60 Hz - 3450 RPM - Foot Mount - T3B

1/2 HP Explosion Proof Motor - Class I, II - 115V 1PH 60 Hz - 3450 RPM - Foot Mount - T3B

常规价格 $1,700.00 CAD
常规价格 促销价 $1,700.00 CAD
促销 售罄
结账时计算的运费
Specifications / Additional Information
EXP-MTR-1P-115-0.5HP-3.6K-56 Explosion Proof Motor Ratings
Dimensions: 12.04" x 6.98" x 6.98" Listed for United States & Canada
Weight: 26 lbs Class I, Divisions 1&2 Groups C,D
Phase: Single Phase Class II, Divisions 1&2 Groups E,F,G
Voltage: 115V AC T3B Temperature Rating
Frequency: 60 Hz IP55
Poles: 2 TEFC Cooling
Output Horsepower: 1/2 HP Aluminum Endshields
Kilowatt: 0.37 KW
Rotations per Minute: 3450 RPM
Torque: 0.751 lb. ft.
Locked Rotor Torque: 200%
Break Down Torque: 280%
L.R. Time: 11s
Inertia: 0.0102 sq. ft. lb.
Motor Frame: NEMA 56
Full Load Amps: 6.8 FLA
No Load Current: 5A
Locked Rotor Current (II/In): 5.9
Efficiency: 64.3 (100%), 60 (75%), 50 (50%)
Power Factor: 0.75 (100%), 0.68 (75%), 0.58 (50%)
Service Factor: 1
Insulation: Class F
Noise: -
Ambient Temperature Rating: 50°C
Materials: Aluminum Toll Free: 1-800-369-6671
Mount: Foot Mount
Wiring: 24" (+2/-0) Leads
Color: Black
' Product Overview '
The Larson Electronics EXP-MTR-1P-115-0.5HP-3.6K-56 Explosion Proof Motor is recommended for use in Class I, Divisions 1 & 2 Groups C, D and Class II, Divisions 1 & 2 Groups E, F, G rated work sites. The 1/2 HP unit is compatible with 115V AC single phase 60 Hz and offers 6.8 FLA. This Class F insulation rated explosion proof motor features a NEMA 56 motor frame and can be installed with industrial systems via an intregrated mounting foot. The EXP-MTR-1P-115-0.5HP-3.6K-56 is a fractional explosion proof motor for flammable work sites. This thermally protected unit operates with 115V AC single phase 60 Hz. The 1/2 HP motor offers 6.8 full-load amps and 5 amps of no-load current. Capable of generating 3,450 RPM, the unit provides 0.751 lbs. ft. of torque, with 200% locked rotor torque and 280% break down torque. This motor is totally enclosed and fan-cooled (TEFC). The IP55-rated explosion proof motor features an ambient temperature rating of 50°C. Equipped with aluminum endshields, this unit is protected by a NEMA 56 motor frame and features Class F insulation, with 1.0 service factor. Wiring: The EXP-MTR-1P-115-0.5HP-3.6K-56 comes with 24" of +2/-0 leads for electrical connections and an unassembled aluminum conduit box. Mount: The EXP-MTR-1P-115-0.33HP-3.6K-56 is foot mounted for supporting the motor`s weight for sturdy, secure installations. Feet components are typically fixed on the surface, which reduces unnecessary movements during operation. Applications: Hazardous locations, industrial facilities, pumps, mixers, conveyors, manufacturing, food processing, chemical plants and more.
