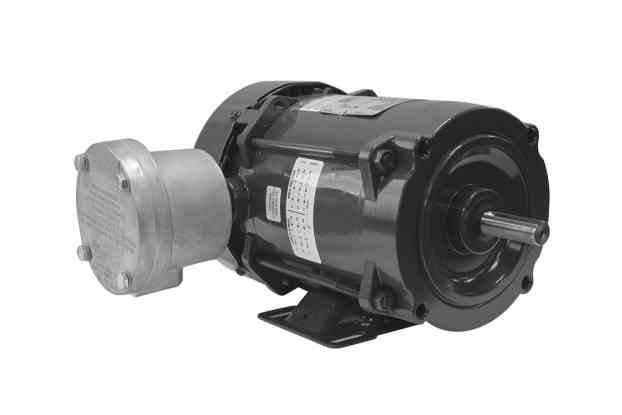

Larson 1 HP Explosion Proof Motor - Class I, II - 115V 1PH 60 Hz - 3450 RPM - Foot Mount - T3B

Larson ElectronicsSKU: PL3-EXP-MTR-1P-115-1HP-3.6K-56
filler

Price:
Sale price$2,656.00

Description

PuriLite suggests you place an order directly with us for large Larson orders due to the potential customization requirements. Please call us at 1(647) 254-9757 to place your order. If you prefer to place your order online, a PuriLite agent will be in touch with you to discuss any custom options.
The Larson Electronics EXP-MTR-1P-115-1HP-3.6K-56 Explosion Proof Motor is recommended for use in Class I, Divisions 1 & 2 Groups C, D and Class II, Divisions 1 & 2 Groups E, F, G rated work sites. The 1 HP unit is compatible with 115V AC single phase 60 Hz and offers 10.6 FLA. This Class F insulation rated explosion proof motor features a NEMA 56 motor and can be installed with industrial systems via an intregrated mounting foot.
The EXP-MTR-1P-115-1HP-3.6K-56 is a fractional explosion proof motor for flammable work sites. This thermally protected unit operates with 115V AC single phase 60 Hz. The 1 HP motor offers 10.6 full-load amps and 5.8 amps of no-load current. Capable of generating 3,450 RPM, the unit provides 1.5 lbs. ft. of torque, with 150% locked rotor torque and 250% break down torque. This motor is totally enclosed and fan-cooled (TEFC).
The IP55-rated explosion proof motor features an ambient temperature rating of 50°C. Equipped with aluminum endshields, this unit is protected by a NEMA 56 motor frame and features Class F insulation, with 1.0 service factor.
Wiring:
The EXP-MTR-1P-115-1HP-3.6K-56 comes with 24" of +2/-0 leads for electrical connections and an unassembled aluminum conduit box.
Mount:
The EXP-MTR-1P-115-0.33HP-3.6K-56 is foot mounted for supporting the motor`s weight for sturdy, secure installations. Feet components are typically fixed on the surface, which reduces unnecessary movements during operation.
Applications:
Hazardous locations, industrial facilities, pumps, mixers, conveyors, manufacturing, food processing, chemical plants and more.
Contact info@purilite.ca for more information about our custom options tailored to meet your specific industry needs.

Specifications
Dimensions: 13.04" x 6.92" x 6.98"
Weight: 32 lbs
Phase: Single Phase
Voltage: 115V AC
Frequency: 60 Hz
Poles: 2
Output Horsepower: 1 HP
Kilowatt: 0.75 KW
Rotations per Minute: 3450 RPM
Torque: 1.5 lb. ft. 150% 250%
Locked Rotor Torque: 150%
Break Down Torque: 250%
L.R. Time: 4s
Inertia: 0.01495 sq. ft. lb.
Motor Frame: NEMA 56
Full Load Amps: 10.6 FLA
No Load Current: 5.8A
Locked Rotor Current (II/In): 6.5
Efficiency: 72.8 (100%), 71 (75%), 65 (50%)
Power Factor: 0.83 (100%), 0.77 (75%), 0.67 (50%)
Service Factor: 1
Insulation: Class F
Noise: -
Ambient Temperature Rating: 50°C
Materials: Aluminum
Mount: Foot Mount
Wiring: 24" (+2/-0) Leads
Color: Black
