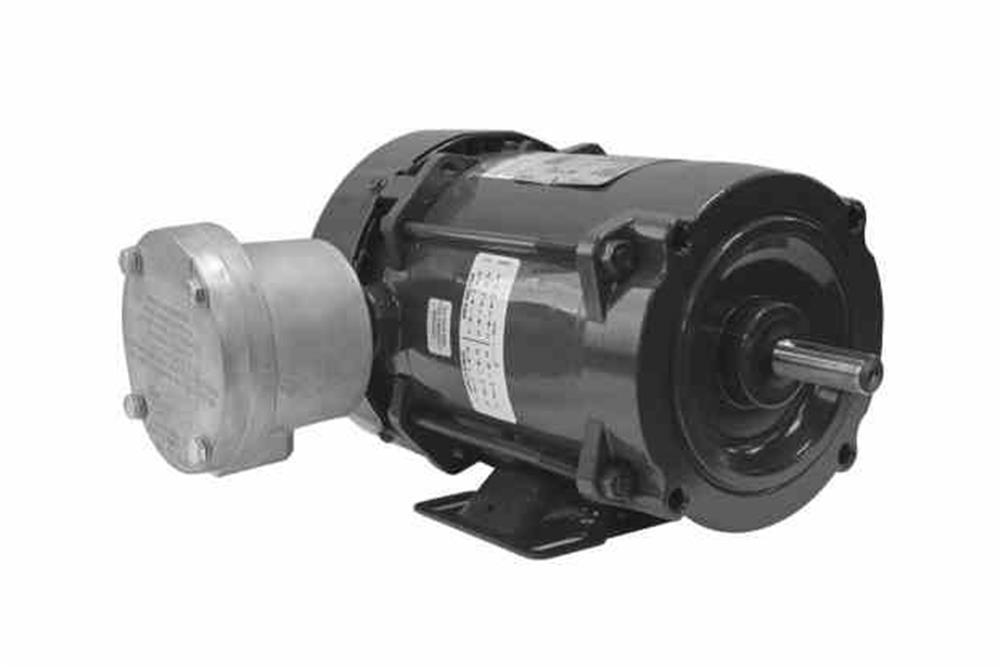

2 HP Explosion Proof Motor - Class I, II - 230V 1PH 60 Hz - 3450 RPM - C Face/Foot Mount - NEMA 56H

LARSON ELECTRONICSSKU: PL3-EXP-MTR-1P-230-2HP-3.6K-56HC
filler

Price:
Sale price$4,018.00

Description

Specifications / Additional Information
EXP-MTR-1P-230-2HP-3.6K-56HC Explosion Proof Motor Ratings
Dimensions: 14.54" x 6.92" x 6.98" Listed for United States & Canada
Weight: 43 lbs Class I, Divisions 1&2 Groups C,D
Phase: Single Phase Class II, Divisions 1&2 Groups E,F,G
Voltage: 230V AC T3B Temperature Rating
Frequency: 60 Hz IP55
Poles: 2 TEFC Cooling
Output Horsepower: 2 HP Aluminum Endshields
Kilowatt: 1.5 KW
Rotations per Minute: 3450 RPM
Torque: 3 lb. ft.
Locked Rotor Torque: 120%
Break Down Torque: 250%
L.R. Time: 4s
Inertia: 0.02254 sq. ft. lb.
Motor Frame: NEMA 56H
Full Load Amps: 9.8 FLA
No Load Current: 4.4A
Locked Rotor Current (II/In): 6.5
Efficiency: 78.1 (100%), 77 (75%), 74 (50%)
Power Factor: 0.85 (100%), 0.80 (75%), 0.70 (50%)
Service Factor: 1
Insulation: Class F
Noise: -
Ambient Temperature Rating: 50°C
Materials: Aluminum Toll Free: 1-800-369-6671
Mount: C Face Flange, Foot Mount
Wiring: 24" (+2/-0) Leads
Color: Black
' Product Overview '
The Larson Electronics EXP-MTR-1P-230-2HP-3.6K-56HC Explosion Proof Motor is recommended for use in Class I, Divisions 1 & 2 Groups C, D and Class II, Divisions 1 & 2 Groups E, F, G rated work sites. The 2 HP unit is compatible with 230V AC single phase 60 Hz and offers 9.8 FLA. This Class F insulation rated explosion proof motor features a NEMA 56H motor frame and can be installed with industrial systems via an integrated mounting foot and C-face flange. The EXP-MTR-1P-230-2HP-3.6K-56HC is a fractional explosion proof motor for flammable work sites. This thermally protected unit operates with 230V AC single phase 60 Hz. The 2 HP motor offers 9.8 full-load amps and 4.4 amps of no-load current. Capable of generating 3,450 RPM, the unit provides 3 lbs. ft. of torque, with 120% locked rotor torque and 250% break down torque. This motor is totally enclosed and fan-cooled (TEFC). The IP55-rated explosion proof motor features an ambient temperature rating of 50°C. Equipped with aluminum endshields, this unit is protected by a NEMA 56H motor frame and features Class F insulation, with 1.0 service factor. Wiring: The EXP-MTR-1P-230-2HP-3.6K-56HC comes with 24" of +2/-0 leads for electrical connections and an unassembled aluminum conduit box. Mount: The EXP-MTR-1P-230-2HP-3.6K-56HC contains C-face flange and foot mounting components for supporting the motor`s weight at both ends. The face of the motor features threaded mounting holes for ease of installation. Feet components are typically fixed on the surface, which reduces unnecessary movements during operation. Applications: Hazardous locations, industrial facilities, pumps, mixers, conveyors, manufacturing, food processing, chemical plants and more.
