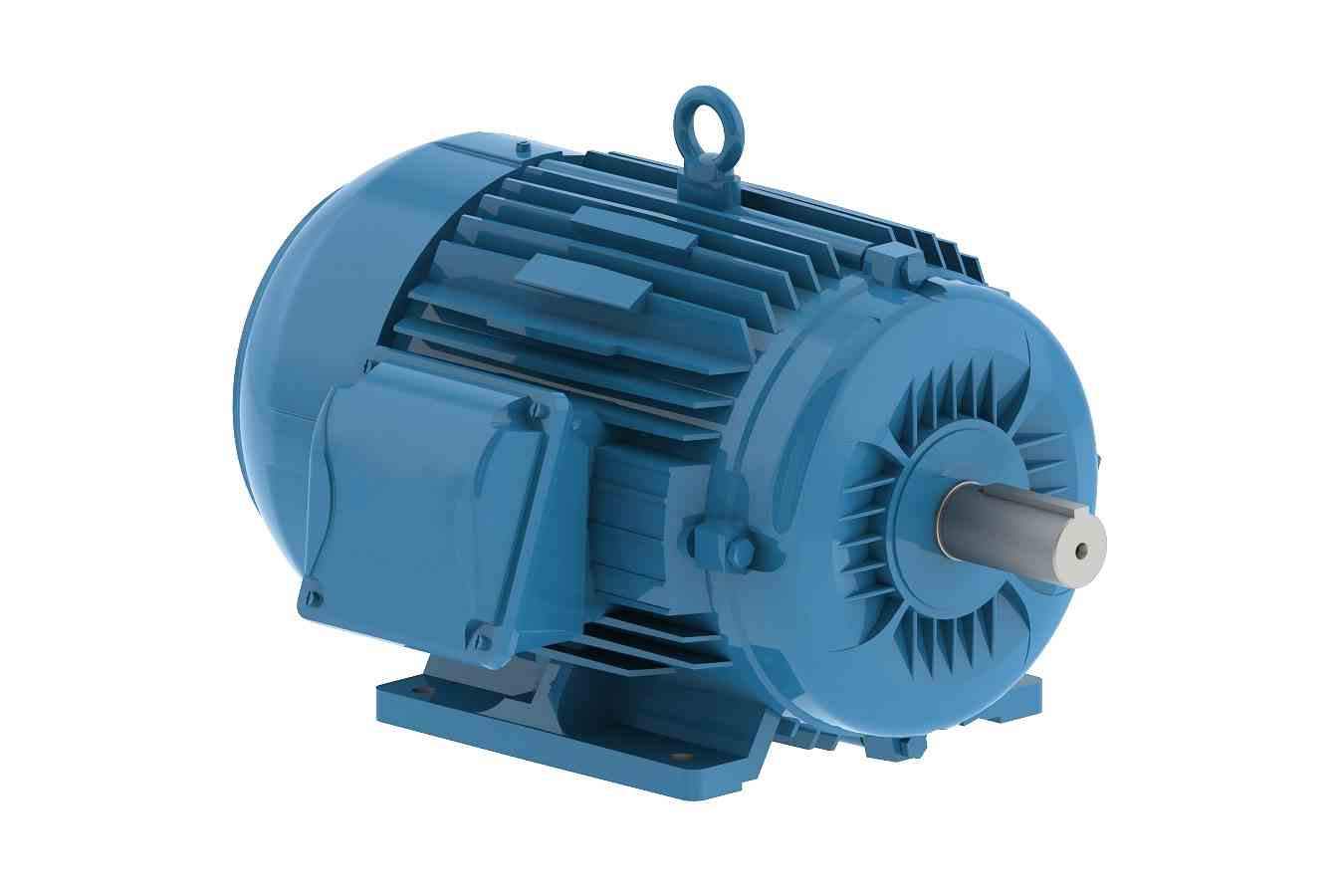

Larson 1 HP Explosion Proof Motor - Class I, II - 230V 3PH 60 Hz - 3600 RPM - Foot Mount - 143/5T Frame

Larson ElectronicsSKU: PL3-EXP-MTR-3P-230-1HP-3.6K-143.5T
filler

Price:
Sale price$2,854.00
 更多支付选项

Description

PuriLite suggests you place an order directly with us for large Larson orders due to the potential customization requirements. Please call us at 1(647) 254-9757 to place your order. If you prefer to place your order online, a PuriLite agent will be in touch with you to discuss any custom options.
The Larson Electronics EXP-MTR-3P-230-1HP-3.6K-143.5T Explosion Proof Motor is recommended for use in Class I, Division 1 Groups C, D and Class II, Division 1 Groups F, G rated work sites. The 1 HP unit is compatible with 230V AC three phase 60 Hz and offers 1.41 FLA @ high. This Class F insulation rated explosion proof motor features a 143/5T motor frame and can be installed with industrial systems via an integrated mounting foot.
The EXP-MTR-3P-230-1HP-3.6K-143.5T is a fractional explosion proof motor for flammable work sites. This thermally protected unit operates with 230V AC three phase 60 Hz. The 1 HP motor offers 1.41 full-load amps @ high with 81.5% full-load efficiency. Capable of generating 3,600 RPM, this motor is totally enclosed and fan-cooled (TEFC).
The IP55-rated explosion proof motor features an ambient temperature rating of 50°C. Equipped with aluminum endshields, this unit is protected by a 143/5T motor frame and features Class F insulation, with 1.15 service factor.
Wiring:
The EXP-MTR-3P-230-1HP-3.6K-143.5T comes with 24" of +2/-0 leads for electrical connections and an unassembled aluminum conduit box.
Mount:
The EXP-MTR-3P-230-1HP-3.6K-143.5T is foot mounted for supporting the motor`s weight for sturdy, secure installations. Feet components are typically fixed on the surface, which reduces unnecessary movements during operation.
Applications:
Hazardous locations, industrial facilities, pumps, mixers, conveyors, manufacturing, food processing, chemical plants and more.
Contact info@purilite.ca for more information about our custom options tailored to meet your specific industry needs.

Specifications
Dimensions: 13.752" x 6.92" x 6.98"
Weight: 64 lbs
Phase: Three Phase
Voltage: 230V AC
Frequency: 60 Hz
Poles: 2
Output Horsepower: 1 HP
Kilowatt: 0.75 KW
Rotations per Minute: 3600 RPM
Motor Frame: 143/5T
Full Load Amps @ High: 1.41 FLA
FL Efficiency: 81.5%
Service Factor: 1.15
Insulation: Class F
Noise: -
Ambient Temperature Rating: 50°C
Materials: Aluminum
Mount: Foot Mount
Wiring: 24" (+2/-0) Leads
Color: Blue
