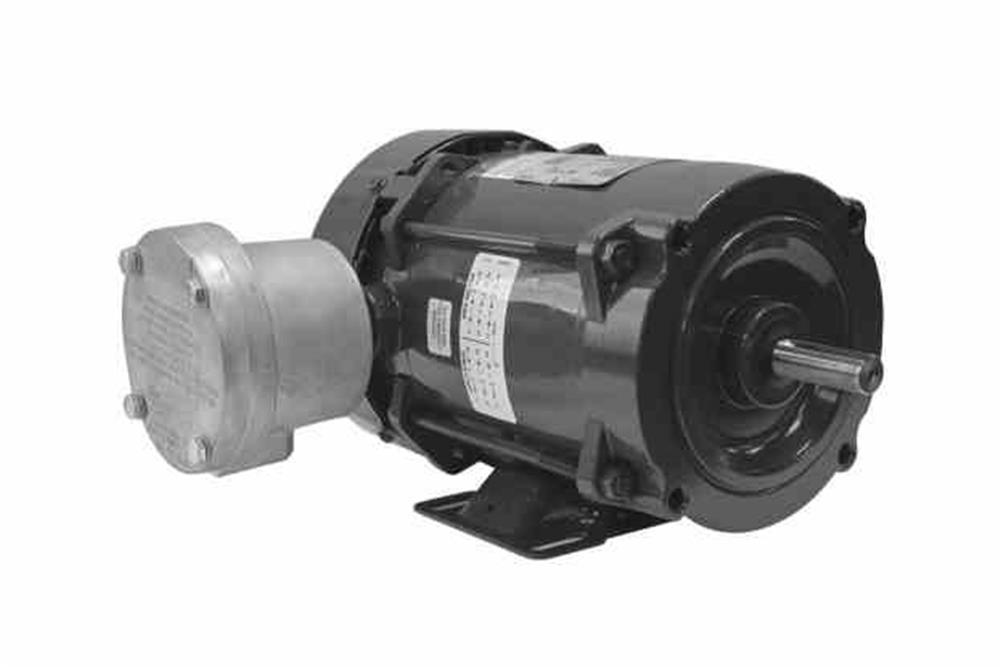

1 HP Explosion Proof Motor - Class I, II - 230V 3PH 60 Hz, 1.6 FLA - 3600 RPM - Foot Mount - T3C

LARSON ELECTRONICSSKU: PL3-EXP-MTR-3P-230-1HP-3.6K-56
filler

Price:
Sale price$1,976.00

Description

Specifications / Additional Information
EXP-MTR-3P-230-1HP-3.6K-56 Explosion Proof Motor Ratings
Dimensions: 11.92" x 6.92" x 6.98" Listed for United States & Canada
Weight: 27 lbs Class I, Division 1 Groups C,D
Phase: Three Phase Class II, Division 1 Groups F,G
Voltage: 230V AC T3C Temperature Rating
Frequency: 60 Hz IP55
Poles: 2 TEFC Cooling
Output Horsepower: 1 HP Aluminum Endshields
Kilowatt: 0.75 KW
Rotations per Minute: 3600 RPM
Motor Frame: NEMA 56
Full Load Amps @ High: 1.6 FLA
FL Efficiency: 77%
Service Factor: 1
Insulation: Class F
Noise: -
Ambient Temperature Rating: 50°C
Materials: Aluminum Toll Free: 1-800-369-6671
Mount: Foot Mount
Wiring: 24" (+2/-0) Leads
Color: Black
' Product Overview '
The Larson Electronics EXP-MTR-3P-230-1HP-3.6K-56 Explosion Proof Motor is recommended for use in Class I, Division 1 Groups C, D and Class II, Division 1 Groups F, G rated work sites. The 1 HP unit is compatible with 230V AC three phase 60 Hz and offers 1.6 FLA @ high. This Class F insulation rated explosion proof motor features a NEMA 56 motor and can be installed with industrial systems via an integrated mounting foot. The EXP-MTR-3P-230-1HP-3.6K-56 is a fractional explosion proof motor for flammable work sites. This thermally protected unit operates with 230V AC three phase 60 Hz. The 1 HP motor offers 1.6 full-load amps @ high with 77% full-load efficiency. Capable of generating 3,600 RPM, this motor is totally enclosed and fan-cooled (TEFC). The IP55-rated explosion proof motor features an ambient temperature rating of 50°C. Equipped with aluminum endshields, this unit is protected by a NEMA 56 motor frame and features Class F insulation, with 1.0 service factor. Wiring: The EXP-MTR-3P-230-1HP-3.6K-56 comes with 24" of +2/-0 leads for electrical connections and an unassembled aluminum conduit box. Mount: The EXP-MTR-3P-230-1HP-3.6K-56 is foot mounted for supporting the motor`s weight for sturdy, secure installations. Feet components are typically fixed on the surface, which reduces unnecessary movements during operation. Applications: Hazardous locations, industrial facilities, pumps, mixers, conveyors, manufacturing, food processing, chemical plants and more.
