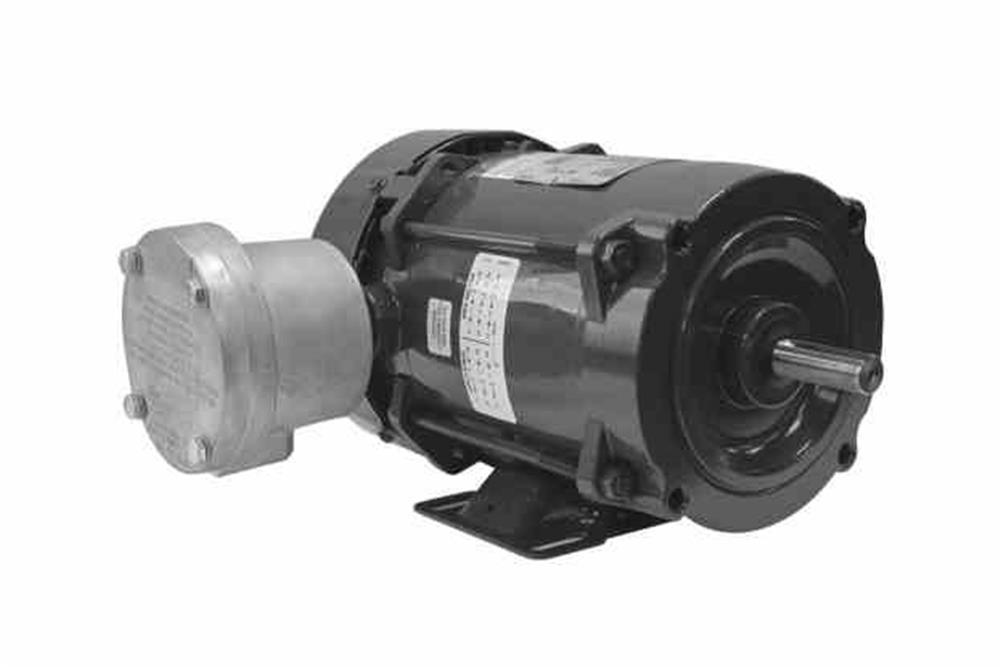

1 HP Explosion Proof Motor - Class I, II - 230V 3PH 60 Hz, 1.6 FLA - 3600 RPM - C Face/Foot Mount

LARSON ELECTRONICSSKU: PL3-EXP-MTR-3P-230-1HP-3.6K-56C
filler

Price:
Sale price$2,362.00

Description

Specifications / Additional Information
EXP-MTR-3P-230-1HP-3.6K-56C Explosion Proof Motor Ratings
Dimensions: 11.92" x 6.92" x 6.98" Listed for United States & Canada
Weight: 27 lbs Class I, Division 1 Groups C,D
Phase: Three Phase Class II, Division 1 Groups F,G
Voltage: 230V AC T3C Temperature Rating
Frequency: 60 Hz IP55
Poles: 2 TEFC Cooling
Output Horsepower: 1 HP Aluminum Endshields
Kilowatt: 0.75 KW
Rotations per Minute: 3600 RPM
Motor Frame: NEMA 56
Full Load Amps @ High: 1.6 FLA
FL Efficiency: 77%
Service Factor: 1
Insulation: Class F
Noise: -
Ambient Temperature Rating: 50°C
Materials: Aluminum Toll Free: 1-800-369-6671
Mount: C Face Flange/Foot Mount
Wiring: 24" (+2/-0) Leads
Color: Black
' Product Overview '
The Larson Electronics EXP-MTR-3P-230-1HP-3.6K-56C Explosion Proof Motor is recommended for use in Class I, Division 1 Groups C, D and Class II, Division 1 Groups F, G rated work sites. The 1 HP unit is compatible with 230V AC three phase 60 Hz and offers 1.6 FLA @ high. This Class F insulation rated explosion proof motor features a NEMA 56 motor and can be installed with industrial systems via an integrated mounting foot and C-face flange. The EXP-MTR-3P-230-1HP-3.6K-56C is a fractional explosion proof motor for flammable work sites. This thermally protected unit operates with 230V AC three phase 60 Hz. The 1 HP motor offers 1.6 full-load amps @ high with 77% full-load efficiency. Capable of generating 3,600 RPM, this motor is totally enclosed and fan-cooled (TEFC). The IP55-rated explosion proof motor features an ambient temperature rating of 50°C. Equipped with aluminum endshields, this unit is protected by a NEMA 56 motor frame and features Class F insulation, with 1.0 service factor. Wiring: The EXP-MTR-3P-230-1HP-3.6K-56C comes with 24" of +2/-0 leads for electrical connections and an unassembled aluminum conduit box. Mount: The EXP-MTR-3P-230-1HP-3.6K-56C contains C-face flange and foot mounting components for supporting the motor`s weight at both ends. The face of the motor features threaded mounting holes for ease of installation. Feet components are typically fixed on the surface, which reduces unnecessary movements during operation. Applications: Hazardous locations, industrial facilities, pumps, mixers, conveyors, manufacturing, food processing, chemical plants and more.
