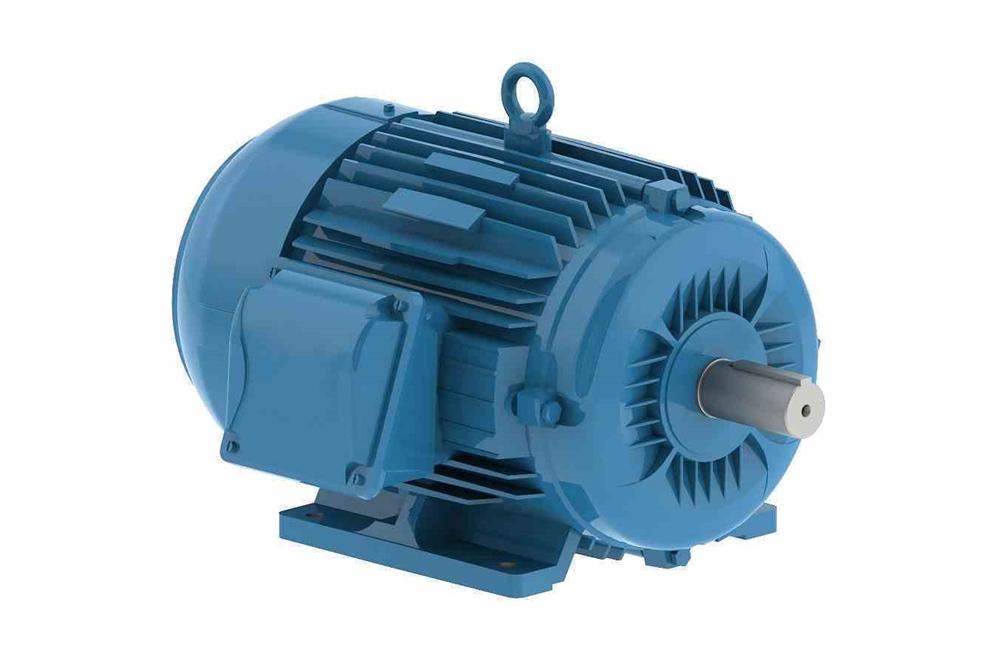

15 HP Explosion Proof Motor - Class I, II - 460V 3PH 60 Hz - 1800 RPM - Foot Mount - 200L Frame

LARSON ELECTRONICSSKU: PL3-EXP-MTR-3P-460-15HP-1.8K-200L
filler

Price:
Sale price$14,504.00

Description

Specifications / Additional Information
EXP-MTR-3P-460-15HP-1.8K-200L Explosion Proof Motor Ratings
Listing: NRTL Listed for United States and Canada Class I, Division 1 Groups C,D
Dimensions: - Class II, Division 1 Groups F,G
Weight: 549 lbs T3C Temperature Rating
Phase: Three Phase IP55
Voltage: 460V AC TEFC Cooling
Frequency: 60 Hz Aluminum Endshields
Poles: 8P
Output Horsepower: 15 HP
Kilowatt: 11 KW
Rotations per Minute: 1800 RPM
Motor Frame: 200L
Full Load Amps @ High: 28 FLA
FL Efficiency: 81.5%
Service Factor: 1.15
Insulation: Class F
Noise: 56 dBA
Ambient Temperature Rating: 50°C
Materials: Aluminum Toll Free: 1-800-369-6671
Mount: Foot Mount
Wiring: 24" (+2/-0) Leads
Color: Blue
' Product Overview '
The Larson Electronics EXP-MTR-3P-460-15HP-1.8K-200L Explosion Proof Motor is recommended for use in Class I, Division 1 Groups C, D and Class II, Division 1 Groups F, G rated work sites. The 15 HP unit is compatible with 460V AC three phase 60 Hz and offers 28 FLA @ high. This Class F insulation rated explosion proof motor features a 200L motor frame and can be installed with industrial systems via an integrated mounting foot. The EXP-MTR-3P-460-15HP-1.8K-200L is a fractional explosion proof motor for flammable work sites. This thermally protected unit operates with 460V AC three phase 60 Hz. The 15 HP motor offers 28 full-load amps @ high with 81.5% full-load efficiency. Capable of generating 1800 RPM, this motor is totally enclosed and fan-cooled (TEFC). The IP55-rated explosion proof motor features an ambient temperature rating of 50°C. Equipped with aluminum endshields, this unit is protected by a 200L motor frame and features Class F insulation, with 1.15 service factor. Wiring: The EXP-MTR-3P-460-15HP-1.8K-200L comes with 24" of +2/-0 leads for electrical connections and an unassembled aluminum conduit box. Mount: The EXP-MTR-3P-460-15HP-1.8K-200L is foot mounted for supporting the motor`s weight for sturdy, secure installations. Feet components are typically fixed on the surface, which reduces unnecessary movements during operation. Applications: Hazardous locations, industrial facilities, pumps, mixers, conveyors, manufacturing, food processing, chemical plants and more.
