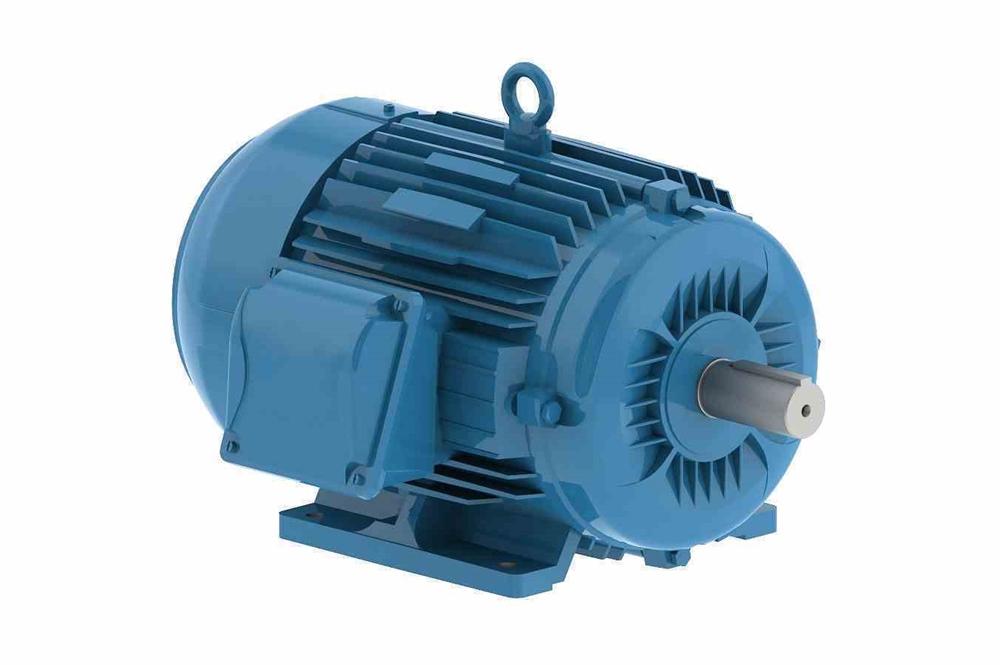

300 HP Explosion Proof Motor - C1D2/C2D2 - 380-415/460V - 3600 RPM - Foot Mount - 315L Frame

LARSON ELECTRONICSSKU: PL3-EXP-MTR-3P-460-300HP-3.6K-315L
filler

Price:
Sale price$113,012.00
 更多支付选项

Description

Specifications / Additional Information
EXP-MTR-3P-460-300HP-3.6K-315L Explosion Proof Motor Ratings
Listing: NRTL Listed for United States, Canada Class I, Division 2 Groups A,B,C,D
Dimensions: 61.38" x 30.7" x 53.268" Class II, Division 2 Groups F,G
Weight: 3468 lbs T3/T3C Temperature Rating
Phase: Three Phase TEFC Cooling
Voltage: 380-415/460V Suitable for VFDs, Wye/Delta Start
Frequency: 60 Hz Gasketed Conduit Box
Poles: -
Output Horsepower: 300 HP
Kilowatt: 220 kW
Rotations per Minute: 3600 RPM
Motor Frame: 315L
Slip: -
FL Amps @ High: 315A
FL Efficiency: 96.2
LRC: -
No Load Current: -
Rated Torque: -
Locked Rotor Torque: -
Breakdown Torque: -
Locked Rotor Time: -
Moment of Inertia (J): -
Duty Cycle: -
Starting Method: Direct on Line
Altitude: -
Enclosure: -
Rotation: -
Noise Level: -
Service Factor: 1.25
Insulation: Class F (Class H Impregnated Resin/Magnet Wire)
Design: -
Nameplate: Stainless Steel, Laser Etched w/ High Contrast Background
Ambient Temperature Rating: -20°C to +40°C
Temp Rise: -
Materials: Cast Iron, Aluminum, Carbon Steel Toll Free: 1-800-369-6671
Mount: Foot Mount (F2 Standard, F1 Convertible)
Wiring: 24" (+2/-0) Leads, Gasketed Conduit Box
Color: Blue
' Product Overview '
The Larson Electronics EXP-MTR-3P-460-300HP-3.6K-315L Explosion Proof Motor is recommended for use in Class I, Division 2 and Class II, Division 2 rated combustible work sites. The 300 HP unit is compatible with three-phase 380-415/460V AC, 60 Hz and offers 315 FL amps. This motor features a 315L motor frame and can be installed with industrial systems via an integrated mounting foot. The EXP-MTR-3P-460-300HP-3.6K-315L is a fractional motor for combustible work sites. This thermally protected unit operates with three-phase 380-415/460V AC, 60 Hz. The 300 HP motor offers 315 full-load amps and direct-on-line starting method. Capable of generating 3600 RPM, this motor is totally enclosed and fan-cooled (TEFC). The explosion proof motor operates with 96.2% efficiency during use. Constructed of cast iron, carbon steel and aluminum, the unit contains a stainless steel nameplate (laser etched with high contrast background). The motor features a T3/T3C temperature rating. Equipped with a lip seal on both endshields, this unit is protected by a 315L motor frame and features Class F insulation, with 1.25 (60 Hz) service factor. The impregnated resin and magnet wire are Class H insulated. This model is suitable for use with VFDs and applications requiring Wye/Delta start. Wiring: The EXP-MTR-3P-460-300HP-3.6K-315L comes with 24" of +2/-0 leads for electrical connections and a gasketed conduit box. Mount: The EXP-MTR-3P-460-300HP-3.6K-315L is foot mounted (F2 standard, F1 convertible) for supporting the motor`s weight for sturdy, secure installations. Feet components are typically fixed on the surface, which reduces unnecessary movements during operation. Applications: Combustible locations, VFDs, Wye/Delta start, industrial facilities, pumps, mixers, conveyors, manufacturing, food processing, chemical plants and more.
