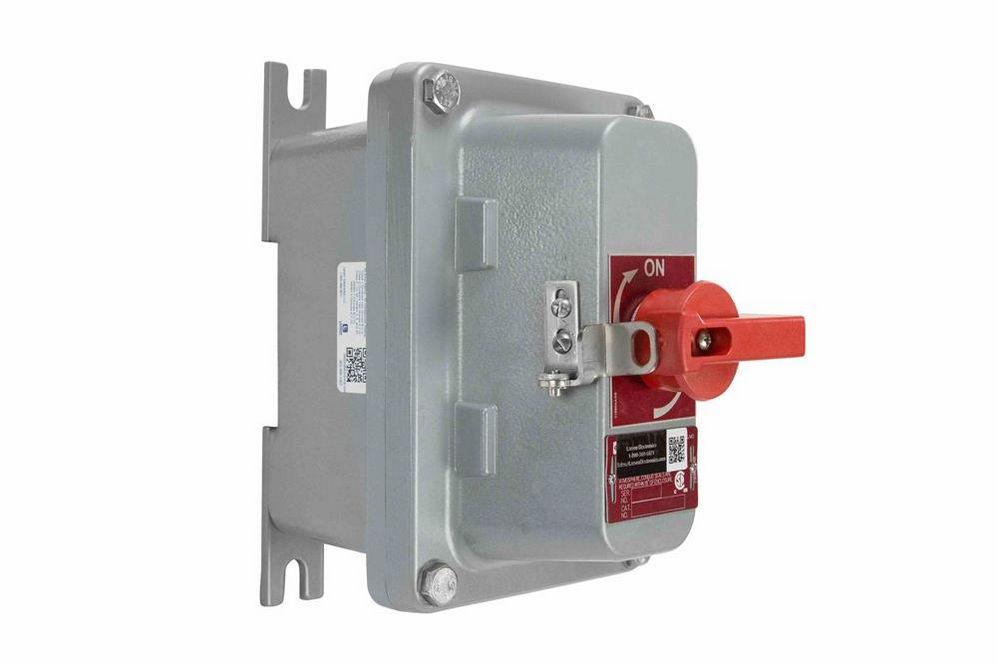

Explosion Proof Combination Motor Starter - Class I, II, III - 5HP, 480V Rated 3PH - NEMA 4, 4X
Explosion Proof Combination Motor Starter - Class I, II, III - 5HP, 480V Rated 3PH - NEMA 4, 4X
| EXP-MTSTR-DOL-3P-480V-5HP-5A Explosion Proof Motor Starter | Features/Ratings |
| Unit Type: Explosion Proof Combination Motor Starter | Class I, Divisions 1&2, Groups B,C,D |
| Dimensions: 23" x 14.5" x 9.125" | Class I, Zones 1&2, Groups llB,llA |
| Weight: 78 lbs | Class II, Divisions 1&2, Groups E,F,G |
| Capacity: 5 HP | Class III, Divisions 1&2 |
| Voltage: 480V Rated 50/60 Hz | NEMA 3, 4, 4X |
| Phase: 3PH | Breaker Handle (Padlockable) |
| Coil Voltage: 110V 50Hz or 120V 60Hz (Rating Depends on Frequency) | NEMA Starter Size 0 |
| FLA Rating: 1A to 5A |  |
| Disconnect Amp Trip: 7A | |
| Reset Function: Manual or Automatic | |
| Protection: Overload, Under Voltage, Phase Protection | Toll Free: 1-800-369-6671 |
| Materials: Copper-free Aluminum, 316 SS (Hardware) | |
| Mount: Wall or Surface | |
| Hubs: 1.5" NPT, 3/4" NPT @ Top and Bottom; 1/2" NPT @ Drain Breather |
| The Larson Electronics EXP-MTSTR-DOL-3P-480V-5HP-5A Explosion Proof Combination Starter provides motor starting solutions for industrial equipment located in combustible environments. This 5 HP unit provides compatibility with 480V three-phase and is protected by a NEMA 4, 4X enclosure. The solid-state, explosion proof device features manual and automatic reset controls. The EXP-MTSTR-DOL-3P-480V-5HP-5A can be used to start and preserve industrial motors in flammable facilities. This 5 HP unit is compatible with 480V three-phase 50/60 Hz. The combination starter is features a coil voltage of 110V 50Hz or 120 60Hz (rating depends on freqeuency) and a NEMA 0 starter size. Equipped with an FLA rating range of 1 amps to 5 amps, the explosion proof device features a 7-amp disconnect trip. Reset options include automatic or manual. The explosion proof reduced voltage starter is protected by a NEMA 4, 4X rated enclosure. Cooling is provided by natural wind, making the unit suitable for both indoor and outdoor locations with adequate ventilation. The motor starter is housed in a copper-free aluminum enclosure with 316-grade stainless steel cover bolts. An accessible breaker handle can be padlocked in the ON or OFF position, in order to reduce tampering. Mount: The EXP-MTSTR-DOL-3P-480V-5HP-5A can be securely mounted on walls or surfaces. This explosion proof unit contains 1.5" NPT and 3/4" NPT hubs located at the top and bottom of the enclosure. A 1/2" NPT hub is available for the drain breather. Applications: Flammable environments, chemical processing, food manufacturing, industrial motors, overload protection, reduced voltage starter, equipment preservation, pumps, manufacturing belts, inrush control, power monitoring and more. |
