Explosion Proof Uninterruptible Power Supply - 120V - (6) Receptacles - 10' Cord w/ Cord Cap
Explosion Proof Uninterruptible Power Supply - 120V - (6) Receptacles - 10' Cord w/ Cord Cap
EXP-UPS-120V-750VA-6X-10C-V1 Explosion Proof Battery Backup | Ratings/Approvals |
Unit Type: Explosion Proof Uninterruptible Power Supply | Class I, Division 1&2 Groups B,C,D |
Dimensions: 22.38" x 28.38" x 13.75" | Class I, Zones 1&2, Groups IIB+H2, IIA |
Weight: 438 lbs | Class II, Divisions 1&2, Groups E, F, G |
Input/Output Voltage: 120V AC, 50/60Hz +/- 3Hz (Input Auto-sensing) | Class III |
Output Power Capacity:Â 500W/750VA | Type 3, 4, & 4X |
Max Configurable Power:Â 500W/750VA | CENELEC/ATEX/IEC Ex |
Output Voltage Distortion:Â Less Than 5% | Ex d IIB + H2 T5 or T6 |
Waveform Type:Â Sine Wave | Ex tD A21 IP66 |
Battery Type: Maintenance-free Sealed Lead-Acid w/ Suspended Electrolyte, Leakproof | Tamb = + 60°C |
Recharge Time:Â 3 Hours | Â |
Expected Battery Life :Â 3-5 Years | Â |
Surge Energy Rating:Â 540 Joules | Â |
Filtering:Â Full-time Multi-pole Noise Filtering: 0.3% IEEE Surge Let-through: Zero Clamping Response Time | Â |
Pushbutton:Â On/Off (Black) | Â |
Pilot Light:Â Green | Â |
Operating Temp: 0°C to 40°C |  |
Operating/Storage Relative Humidity: 0-95% | Â |
Operating Elevation: 0-10,000` | Â |
Storage Temp: -15°C to 45°C |  |
Storage Elevation: 0-50,000` | Â |
Enclosure Material: Copper Free Cast Aluminum (less than 4/10 of 1%) | Â |
Hardware Material: Zinc Plated Steel | |
Enclosure Finish: Aluminum Lacquer Paint | |
Mount:Â Surface Mount Legs | Toll Free:Â 1-800-369-6671 |
Receptacles: (6) Accepts 5-15P and 5-20P EXP Cord Caps | |
Wiring:Â 10` Line-in Cord w/ EXP Cord Cap | |
Cord Cap Options: 5-15P or 5-20P | |
*All grounding shall comply with state and local codes and meet the minimum requirements of the National Electronic Code section 250* |

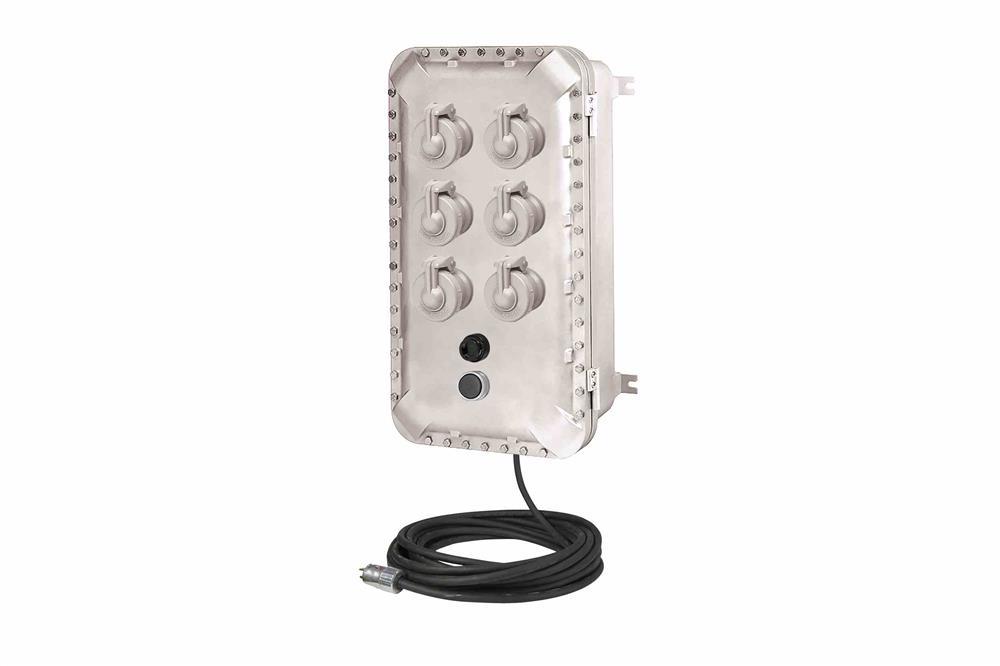

The EXP-UPS-120V-750VA-6X-10C-V1 is an Explosion Proof Uninterruptible Power Supply (UPS) for flammable environments. This battery backup unit works with 120V AC 50/60 Hz (input and output) and contains six explosion proof receptacles at the top of the UPS. Protected by a copper-free cast aluminum enclosure, the NEMA-rated device comes with 10` of line-in cord and an explosion proof cord cap. The EXP-UPS-120V-750VA-6X-10C-V1 provides battery backup support for customer-provided equipment in combustible work sites. This UPS features 120V AC 50/60 Hz (+/- 3Hz) input and output compatibility. Equipped with an output power capacity and maximum configuration power of 500 watts/750 VA, this unit contains a leakproof maintenance-free sealed lead acid with suspended electrolyte battery. The battery takes approximately 3 hours to recharge and comes with an expected lifespan of 3-5 years. This UPS features a surge energy rating of 540 joules and full-time multi-pole noise filtering. An accessible black pushbutton is available for on/off functions on the enclosure, as well as a green pilot light for monitoring the status of the explosion proof UPS. This unit is constructed of copper-free cast aluminum, equipped with steel bolts and includes a weatherproof gasket for a NEMA 3R/NEMA 4 protection rating. The battery backup device is finished in aluminum lacquer paint for durability and is designed for indoor and outdoor use, while providing a degree of protection against dirt, water and external ice formation. Receptacles: Located at the top of the explosion proof UPS, operators may access six explosion proof receptacles for powering customer-provided equipment. The receptacles accept 5-15P and 5-20P explosion proof cord caps. Wiring/Mounting: The EXP-UPS-120V-750VA-6X-10C-V1 comes with 10` of line-in cord with an explosion proof cord cap. Cord cap options include 5-15P or 5-20P. This explosion proof unit is compatible with surface-mount requirements. Applications: Industrial facilities, hazardous locations, offshore refineries, marine locations, indoor/outdoor spaces, agricultural sites, ship yards, docks, chemical processing plants, flammable work sites and more. |
