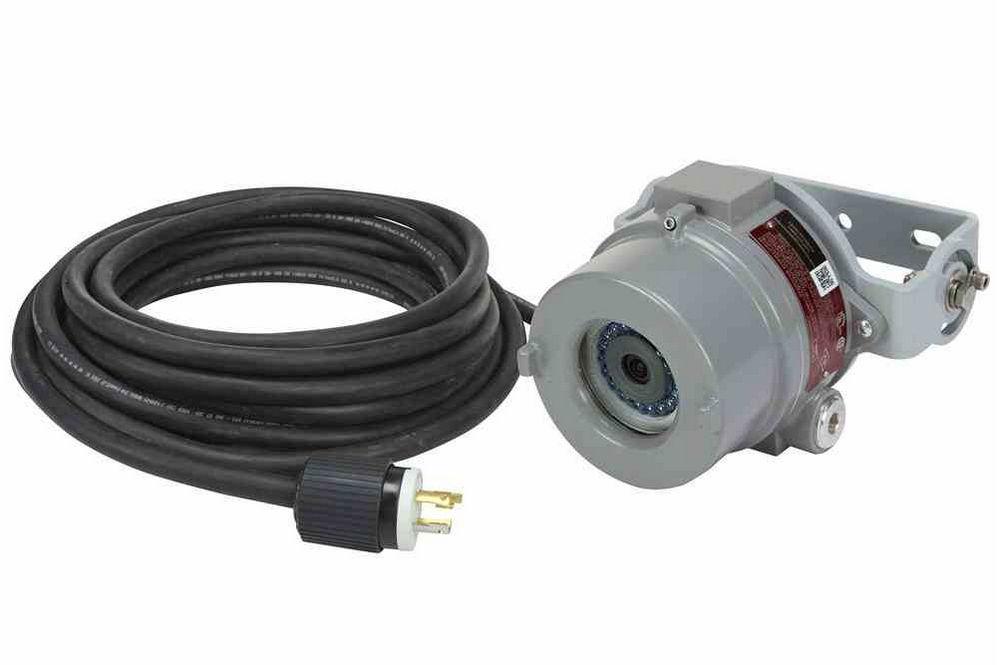

Explosion Proof 1080p Analog Portable Observation Camera - Day/Night IR - 120/240V - 25' Cord & Plug

Explosion Proof 1080p Analog Portable Observation Camera - Day/Night IR - 120/240V - 25' Cord & Plug

常规价格 $9,834.00 CAD
常规价格 促销价 $9,834.00 CAD
促销 售罄
结账时计算的运费
Specifications / Additional Information
EXPCMR-ALG-1080P-IC-16.7-25-L21.20-1227 Explosion Proof Remote Observation Camera w/ Cord Quick Summary
Dimensions: 8"L x 6"W x 9"H Class I, Divisions 1 & 2, Groups B, C, D
Camera Weight: 4.5 lbs Class I, Zones 1 & 2, Groups IIB+H2, IIA
Total Weight: 12.26 lbs Class II, Divisions 1 & 2, Groups E, F, G
Total Watts: 3.5W Max Class III, Divisions 1 & 2
Voltage: 100-240 V 50/60Hz (primary), 12 V DC (secondary) Ex db IIC Gb
Video Framerate: 1080p @ 30fps Ex tb IIC Gb Db IP66
Image Sensor:  1/2.7" Progressive Scan CMOS NEMA 3, 4, 4X, 7 (B, C, D), 9 (E, F, G)
Signal System:  NTSC
Effective Pixels: 1930(H) * 1088(V)
Min. Illumination: 0.1 Lux @ F1.2 AGC On / 0 Lux w/ IR
Shutter Speed: 1/30s to 1/50,000s
Lens: 3.6mm
Angle of View: 90°
Day/Night: ICR
Infrared Range: Up to 50`
D/N Mode: Color / BW/ Auto / EXT
White Balance: Auto / User / Push / 8000K / 6000K / 4200K / 3000K
Privacy Mask: On/Off, maximum 2 zones
Motion Detection: On/Off, maximum 4 zones
Blacklight Compensation: Support
Anti-flicker: On/Off
Display Functions: Digital noise reduction, Mirror
Video Output: (1) Analog HD Output
Protocol: Coaxitron
Signal to Ratio: >52 dB
Language: English
Ambient Temperature Range: -10°C to +50°C
Housing Materials: Aluminum
Lens Material: Tempered Glass
Mounting: Adjustable Bracket w/ set screws Toll Free: 1-800-369-6671
Power & Signal Connection: L21-20P Intl: 1-214-616-6180
Compatible Recorder: Larson Electronics MDVR-ALG Series DVRs Fax: 1-903-498-3364
Wiring: 25` 16/5 SOOW Cord E-mail:
' Product Overview '
The EXPCMR-ALG-1080P-IC-16.7-25-L21.20-1227 explosion proof high definition analog camera from Larson Electronics is an inspection camera that can be used for remote observation in hazardous locations. It is available in a fixed lens configuration, a 3.6mm 90° lens to capture large wide areas, and can produce an image up to 1080p resolution. The EXPCMR-ALG-1080P-IC-16.7-25-L21.20-1227 allows operators to see visual process data from a centralized control room up. This temporary camera allows operators to use a single cable for signal and power. Equipped with 25` SOOW cord, this portable explosion proof camera is ideal for temporary installation for inspection, tank cleaning, and any application requiring a portable camera within hazardous locations. Camera Features: The EXPCMR-ALG-1080P-IC-16.7-25-L21.20-1227 temporary installation explosion proof camera is designed to allow operators to have a live feed from inside a tank, reactor, vessel or other workplace observation in hazardous locations. The explosion proof camera is incredibly durable and ready to be deployed in many different workplace conditions. The camera is operated remotely from a temporary control location, designed specifically for portability and temporary installations within hazardous locations. This system is designed to operate with Larson Electronics` portable DVR systems. This explosion proof camera features an infrared LED array to allow for low light and nighttime visibility. The camera will automatically switch over to IR mode when lux levels drop below a preset level. This allows operators to has up to 50` of visibility in the dark True day/night infrared cutoff filter removal creates a crisp, sharp image that transmits with zero latency to HD resolution via metal clad coax cable to customer provided remote mount DVR systems. This remote inspection camera features a pressure-resistant aluminum body and weighs just under 5 pounds. The camera itself features 1 lux sensitivity, a 2-wire transmitter and a powder coated aluminum mounting bracket as well as a built-in color CCD camera and a 1/3" CCD sensor. The lens of the EXPCMR-ALG-1080P-IC-16.7-25-L21.20-1227 features a viewing angle between 28° and 60° and the minimum lens to object distance is 3.15 inches. Wiring: Link-up with the camera is achieved via 25` 16/5 SOOW cord terminated in a L21-20P twistlock cord cap. The cable is ran back to the Larson Electronics DVR system (MDVR-ALG series, sold separately), located outside the hazardous location. The portable DVR system allows operators to temporarily mount the explosion proof camera without the need for running conduit or cable. The DVR system handles signal and provides power to the camera. The twistlock connector ensures the camera does not come unplugged during operation. Mounting: The EXPCMR-ALG-1080P-IC-16.7-25-L21.20-1227 explosion proof remote observation camera is typically mounted to flat surfaces for observation. The included adjustable flat surface bracket has two set screws on the bracket, allowing operators to loosen the mounting bracket, adjust the camera`s tilt orientation, and retighten to hold the camera in position. A single thru-hole mounting bolt allows operators to adjust the rotation of the camera by loosening one bolt. Accessory pole mounts and magnetic mounts are available. Applications: Vessel, tank and reactor monitoring, remote observation of external facilities, monitoring of cleaning, spray patterns, mixing, foaming, reaction, and level.
