Explosion Proof 1080p HD Camera w/ Built-in LED - Optical & Digital Zoom - IP67 - 24V - 80' 12/4 SOOW w/ Disconnect
Explosion Proof 1080p HD Camera w/ Built-in LED - Optical & Digital Zoom - IP67 - 24V - 80' 12/4 SOOW w/ Disconnect

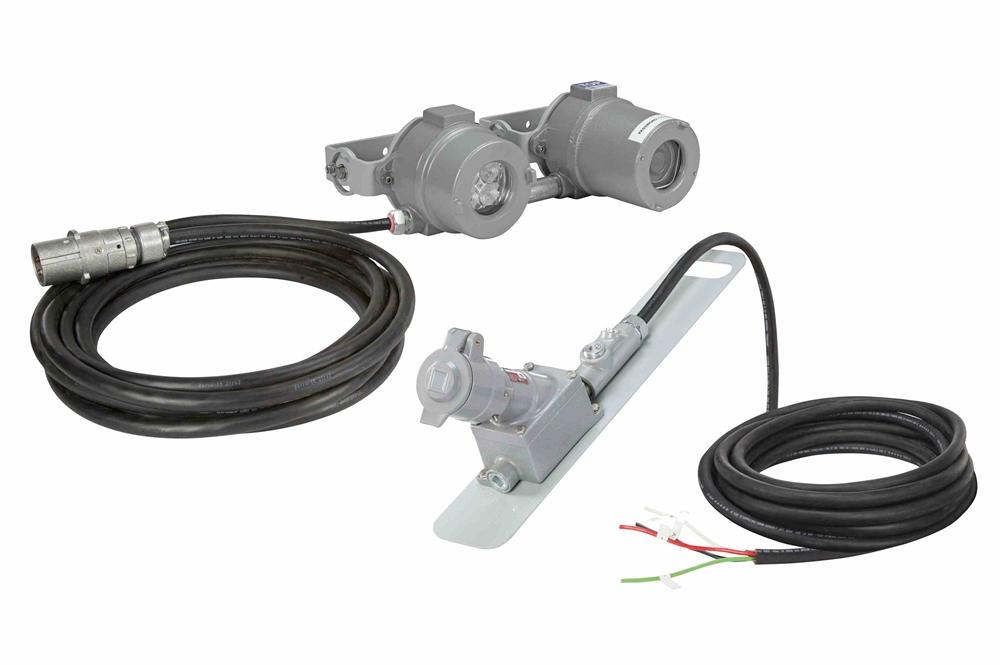

| EXPCMR-ALG-OZ-IC-1080P-1XLE3-1224-5C-QD-75C-12.4 Explosion Proof Remote Observation Camera w/ Built-in LED | Quick Summary |
| Dimensions: - | Class I, Divisions 1 & 2, Groups B, C, D |
| Camera Weight: - | Class I, Zones 1 & 2, Groups IIB+H2, IIA |
| LED Light Watts: 12 W | Class II, Divisions 1 & 2, Groups E, F, G |
| Voltage: 24 V DC | Class III, Divisions 1 & 2 |
| Image Sensor: CMOS | Ex db IIC Gb |
| Signal System: NTSC | Ex tb IIC Gb Db IP66 |
| Connectors: Terminal Strips | NEMA 3, 4, 4X, 7 (B, C, D), 9 (E, F, G) |
| Effective Pixels: 1956(H) * 1266(V) | IR On/off via the DVR |
| Min. Illumination: 0.1 Lux @ F1.2 AGC On / 0 Lux w/ IR | |
| Shutter Speed: 1/25(1/30s) to 1/50,000s | |
| Lens: 5-50mm Focal Length | |
| Angle of View: 90° | |
| Day/Night: ICR | |
| Video Framerate: 1080p @ 30fps | |
| Video Output: Analog over Copper Wire | |
| Signal to Ratio: >62 dB | |
| Language: English | |
| LED Light Lumens: 720 Lumens | |
| Ambient Temperature Range: -10°C to +60°C | |
| Housing Materials: Aluminum | |
| Lens Material: Tempered Glass | |
| Mounting: Adjustable Bracket | Toll Free: 1-800-369-6671 |
| Cord Configuration: 80' 12/4 SOOW Cord w/ Flying Leads - 5' 12/4 SOOW Cord Between Camera and EXP Plug/EXP Connector, 75' 12/4 SOOW Cord w/ Flying Leads at End | Intl: 1-214-616-6180 |
| Plug/Connector Type: EXP 4-pole 4-wire | |
| Wiring Hub: (2) 3/4" NPT |
| The EXPCMR-ALG-OZ-IC-1080P-1XLE3-1224-5C-QD-75C-12.4 Explosion Proof Camera with Built-in LED Light from Larson Electronics is designed for security and remote observation in both indoor and outdoor hazardous environments. This 1080p HD high resolution security camera features a 150' range, 10x optical zoom with autofocus, and 62x digital zoom for maximum coverage and accuracy. A digital inverter supports both HD-TVI and CVBS analog output. For reliable connection to a power source, the 24 V device comes with 300' of 12/4 SOOW cord and an explosion proof plug and connector. Camera Features: The EXPCMR-ALG-OZ-IC-1080P-1XLE3-1224-5C-QD-75C-12.4 security camera provides operators in hazardous areas with crisp 1080p HD high resolution images. A 5-50mm motorized lens automatically adjusts focus, providing operators with a precise 10x optical zoom and autofocus and 62x digital zoom image. A digital inverter supports both HD-TVI and CVBS analog output to a customer provided remote mount DVR system. This 24V camera measures a compact 12.34" x 3.96" x 4.22" and the mounting base allows for precise aiming with 90° of vertical adjustment. Unlike other explosion proof security cameras on the market today, operators do not need to open the enclosure to change the camera's settings. Infrared functionality can be turned on/off via the DVR, greatly reducing human error and time spent in dangerous work environments. The unit comes with built-in LED lights to support image capturing in low-light conditions and after sunset. This component is available in two lighting configurations: spot or flood. Four Cree EZBright® three watt LEDs producing 180 lumens eah, for a total of 720 lumens, each are arranged in rows and paired with high purity 10 degree optics to produce a tightly focused spot beam with limited spread or light spillage. The spot configuration features a 10° beam that measures 120'L x 60'W. The explosion proof LED light is powered using a customer-provided 12 V DC or 24 V DC low voltage power source, while the explosion proof camera is powered by PoE. The EXPCMR-ALG-OZ-IC-1080P-1XLE3-1224-5C-QD-75C-12.4 security camera is built to perform under harsh and rugged conditions. This IP67 rated waterproof unit resists the corrosive effects of weather, dust, dirt, and humidity. This Class I Divisions 1 & 2, Class II Divisions 1 & 2, Class III Divisions 1 & 2 rated camera provides property and product security while also protecting operators with its safe and reliable explosion proof and weatherproof design. Wiring: The EXPCMR-ALG-OZ-IC-1080P-1XLE3-1224-5C-QD-75C-12.4 is equipped with 80' of 12/4 chemical and abrasion resistant SOOW cord. The 24 V camera is connected to 5' of 12/4 SOOW cord with the 4-wire explosion proof plug at the other end. A 4-wire explosion proof connector that attaches/connects to the explosion proof plug is equipped with 75' of 12/4 SOOW cord with flying leads, completing the wiring configuration. Both the explosion proof plug and explosion proof connector are 4-pole, 4-wire and constructed of non-sparking aluminum. Mounting: The EXPCMR-ALG-OZ-IC-1080P-1XLE3-1224-5C-QD-75C-12.4 explosion proof security camera is secured to a flat surface, such as a ceiling or wall, using an adjustable reverse pedestal style bracket. The included mounting bracket allows 90° vertical adjustment and 360° of swivel for precision aiming. Applications: Vessel, tank and reactor monitoring, remote observation of external facilities, offshore and land based rigs, indoor and outdoor security, commercial buildings. |
