Description
Specifications / Additional Information

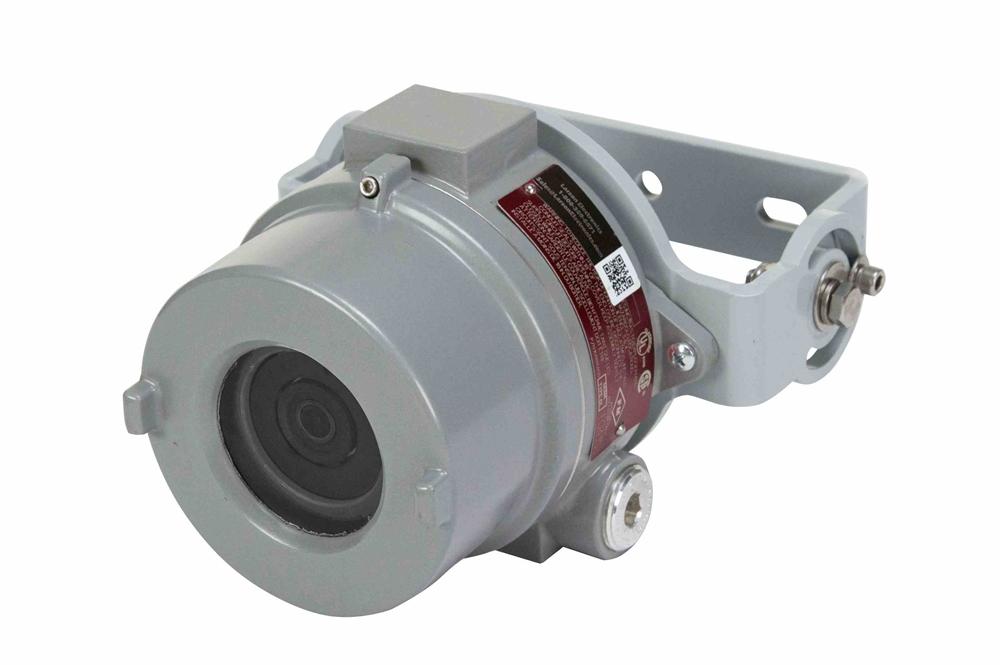

EXPCMR-CER-IP-POE-8MP-IR-102D Network Explosion Proof Camera for Cannabis Extraction | Ratings / Features |
Listing: NRTL Listed for United States & Canada | Class I, Divisions 1 & 2, Groups B, C, D |
Dimensions: 8.5" × 4.76" × 4.65" | Class I, Zones 1 & 2, Groups IIB+H2, IIA |
Camera Weight: 0.9 lbs | Class II, Divisions 1 & 2, Groups E, F, G |
Total Watts: 5W (Max) | Class III, Divisions 1 & 2 |
Power Source: PoE (802.3af) | NEMA 3R, 4, 7 (B, C, D), 9 (E, F, G) |
Image Sensor: 1/2.5" Progressive Scan CMOS Sensor | NRTL Listed to UL 508A |
Signal System: NTSC | NRTL Listed to UL 1203 |
Video Resolution: 4K UHD 8.0MP (3840 x 2160) | NRTL Listed to CSA C22.2 No 14, 25, 30 |
Frame Rate: Up to 20fps @ 3840 x 2160 Resolution | Main stream and two sub streams |
Compression Type: H.265+, H.265, H.264 OVC, H.264, MJPEG | Capable of programming unique settings per stream |
Bit Rate: 32Kbps - 16Mbps | ONVIF Profile S Certified |
Focal Length: 2.8mm | WDR (wide dynamic range) for auto adjusting |
Max Field of View: 102° |  |
Shutter Speed: 1/3s to 1/10,000s |  |
Min. Illumination: 0.01 lux (Color) / 0 lux (w/ Built-in IR) |  |
Infrared Light: Built-in |  |
Day/Night: True D/N w/ Mechanical Cut Filter |  |
Digital Noise Reduction: 3D DNR |  |
Ethernet Interface: RJ45 | |
Ethernet Speed: 10/100 | |
Protocols: TCP/IP, HTTP, HTTPS, DHCP, UDP, RTP, RTSP and More | |
Remote Configuration: Yes | Special Orders/Requirements |
Ambient Temperature Range: -22°F to +140°F | |
Housing Materials: Copper-free Aluminum Alloy | Toll Free: 1-800-369-6671 |
Lens Material: 3/8" Thick Tempered Glass | Intl: 1--214-616-6180 |
Mounting: Adjustable Rear-mounted Handle/bracket | |
Wiring Hub: (2) 3/4" NPT |
The EXPCMR-CER-IP-POE-8MP-IR-102D from Larson Electronics is a 4K UHD Network Explosion Proof Camera specifically designed for observation in butane THC extraction rooms and hemp processing facilities. This explosion proof, dust/ignition proof, weather proof and tamper resistant camera provides the operator with a live feed inside mobile extraction labs, as well as indoor cannabis growing and processing sites. Equipped with built-in infrared, this remote inspection camera saves both time and money as well as contributing to workplace safety. Camera Features: The EXPCMR-CER-IP-POE-8MP-IR-102D Network Explosion Proof Camera is powerful solution for cannabis extraction facilities requiring real-time monitoring and cutting-edge security. This device features a built-in 1/2.5" progressive-scan CMOS image sensor that delivers up to 4K 8.0MP resolution at 20 fps. The wide angle fixed lens with 102° field of view is designed to cover large areas and work spaces, including mobile labs and temporary extraction rooms. This explosion proof camera provides a crisp and clear image for everything within the 102° focal area, allowing businesses and persons with access (local/state officials, operation managers, inspectors, etc.) to view the workplace in real-time. Total distance is dependent on mounting height and angle. The explosion proof unit comes with built-in infrared lights. For additional infrared illumination, an external infrared light can be used with the explosion proof device (not included). For 12-24V DC applications, we recommend the Larson Electronics 12-watt explosion surface-mount infrared LED light (). As an alternative, we also offer the for 120-240V AC applications. This remote inspection camera utilizes 120dB true Wide Dynamic Range, 3D Digital Noise Reduction and a true day/night IR-Cut Filter Removal to produce clear images in variable and low light conditions. The camera automatically switches from full color to IR mode when visible light falls below a certain level. Wiring: Link-up with the camera is achieved via a customer provided RJ45 Ethernet cable which is ran back to the customer provided DVR system mounted outside the hazardous location. Camera power is delivered via the same Ethernet cable using Power over Ethernet (PoE) technology. This not only increases flexibility in deployment, but also provides time and cost savings as well. Our explosion proof cameras with Power over Ethernet (PoE) features enable data transfers and power to be passed through a single Ethernet cable that is usually a Cat 3/Cat 5 cable or better. There are several types of PoE, which come with their own respective standard and maximum power to port capabilities. The IEEE 802.3af PoE standard, with a voltage range of 44.0 - 57.0V, offers 15.4W of DC power for each port. The IEEE 802.3at PoE standard, with a voltage range of 50.0 – 57.0V, provides up to 30W of DC power per port, which is ideal for surveillance cameras, antennas and network access points. The IEEE 802.3bt PoE standard, with a voltage range of 50.0 – 57.0V, provides 60W of DC power for each port. In order to utilize PoE properly, the components, such as the receiving unit and sending device, must be PoE compliant. Recording: To record the stream from this camera, a NVR (network video recorder) is required. Larson Electronics provides a line of explosion proof, hazardous location and non-classified NVRs for BHO/THC/CBD extraction facilities, which work in conjunction with this explosion proof camera. This camera is live-view capable without any NVR system via remote access to the camera. Three streams are available, one main stream for recording and two sub streams for live viewing or additional resources. Each stream can be configured to different resolutions and frame rates. Mounting: The EXPCMR-CER-IP-POE-8MP-IR-102D Network Explosion Proof Camera features an ATEX/IECEx certified copper-free aluminum alloy body and weighs a total of 0.9 pounds. The camera includes an adjustable rear-mounted polished stainless steel mounting bracket/handle. Additional accessory pole mounts and magnetic mounts are available separately. Applications: Hemp processing, cannabis extraction rooms, legal cannabis grow rooms, hemp greenhouses, butane-based extraction facilities, THC, BHO, CBD, medicinal cannabis compliance, security, monitoring, labs, research and more. |
