240W Linear High Bay LED Fixture - 30,000 lms - Wide Beam - Semi Diffused Lens
240W Linear High Bay LED Fixture - 30,000 lms - Wide Beam - Semi Diffused Lens
| GAU-HBL-48-48L-R1-DCM Linear High Bay LED Light | Ratings |
| Lamp Technology: LED | Weatherproof |
| Dimensions: 46" x 14.49" x 2.05" | 10kA/10kV Surge Protection |
| Weight: 17.5 lbs | Suitable for Mounting Heights up to 60' |
| Voltage: 90-305V AC 47-63 Hz, 127-431V DC | Replacement for 400W HID |
| Total Watts: 240W |  |
| Total Lumens: 30,000 lms |  |
| Luminous Efficacy: - |  |
| Lamp Life: 50,000+ Hours | |
| Color Temp: 5000K, 4500K, 4000K, 3500K or 3000K | |
| Color Rendering Index: >80 CRI | |
| Lamp Type: - | |
| Lamp Base: - | |
| Replacement Lamp: - | |
| Beam Angle: - | |
| Lighting Configuration: Wide Flood Pattern | |
| Power Efficiency: - | |
| Power Factor: - | |
| Amperage: 2A @ 120V, 1A @ 240V, 0.86A @ 277V | |
| Ambient Operating Temp Range:-40°C to +55°C | |
| Housing Material: Aluminum | |
| Housing Finish: Polyester Powder Coated - White | |
| Lens Material: Semi Diffused | |
| Mounting: - | |
| Wiring: Flying Leads |

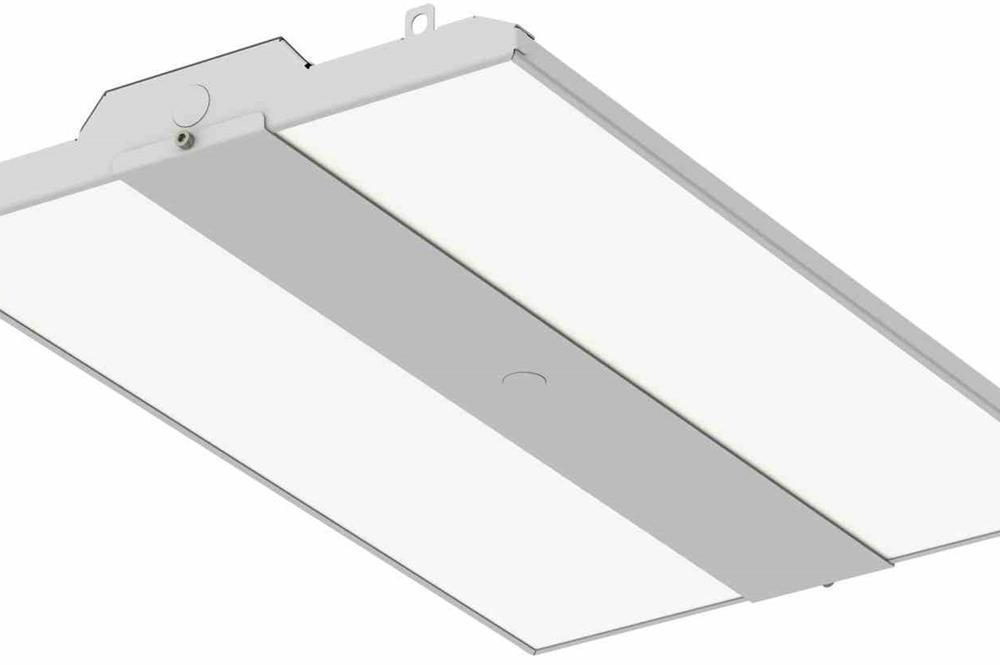

| The Larson Electronics GAU-HBL-48-48L-R1-DCM Linear High Bay LED Fixture is a powerful lighting solution for indoor work sites and buildings requiring wide-area illumination. This solid-state LED unit is compatible with 90-305V AC 47-63 Hz and 127-431V DC.  The light comes with a semi-diffused lens, which reduces glare during use. The GAU-HBL-48-48L-R1-DCM offers uniform illumination when mounted at heights up to 60'. This slim LED fixture operates on 90-305V AC 47-63 Hz and 127-431V DC. During use, the unit provides 30,000 lumens of output with an 80 CRI rating. Color temperature options include: 5000K, 4500K, 4000K, 3500K or 3000K. A wide beam configuration ensures comprehensive light distribution over the work area; and a semi-diffused lens minimizes the creation of glare. Serving as a suitable replacement for 400-watt HID lamps, this unit offers 10kA/10kV surge protection. This LED fixture is protected by an aluminum housing with a polyester powder coat finish (white). A 90°C case rating caters to high-temperature operation. LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current applied and emitting light. With LED lights, there is no warm up time or cool down time before re-striking and provide instant illumination when powered on, adding to the reliability of LED technology. By nature, LED light sources run significantly cooler than traditional lamps, reducing the chance of accidental burns and increased temperatures due to heat emissions. This solid state design of light emitting diodes provides a more reliable, stable, durable, and energy efficient light source over traditional lighting. Wiring: This light comes with wiring leads at the back of the fixture for completing electrical connections. Mounting: For best results, this LED fixture is recommended for mounting at heights up to 60'. The unit is compatible with chain, cable, pendant monopoint, hook monopoint and surface bracket mounting requirements. Applications: General work sites, commercial locations, offices, indoor locations, lobbies, public sites, buildings and more.  |
