8W Low Voltage LED Light Fixtures for Hazardous Location Illumination - 13.4" - C1D2 - NPT Hub
8W Low Voltage LED Light Fixtures for Hazardous Location Illumination - 13.4" - C1D2 - NPT Hub
| GSLEDIP12-C1D2-NPT Hazardous Location LED Lighting | ETL Listed |
| Lamp Type: LED | Class 1 Division 2 Groups A,B,C,D |
| Dimensions: Lamp 13.38"-L 2.68" -W 1.69"- D | CSA 22.2 No. 250.0 |
| Weight: 0.7lb | 0.3 k g | 1598 |
| Watts: 8.4 | IP54 Ingress Protection |
| Voltage: 12-24 VDC | T3 Temperature Rating |
| Lumens: 442 | |
| Lamp Life Expectancy: 100,000 Hours | |
| CRI: 75 | |
| Amps: 0.66 A @12 VDC | 0.33 A @ 24 VDC |  |
| Light Color: 6500K |  |
| Beam Type: 100° Flood or 30° Spot | |
| Mounting: 1/4†- 20 Screws /Aluminum 1†Yoke | |
| Temp Range: -40°C – +85°C | |
| Wiring: 6Ft Lead | White: + Black | |
| Wiring Hub: 1/2" NPT or 3/4" NPT | E-mail: |

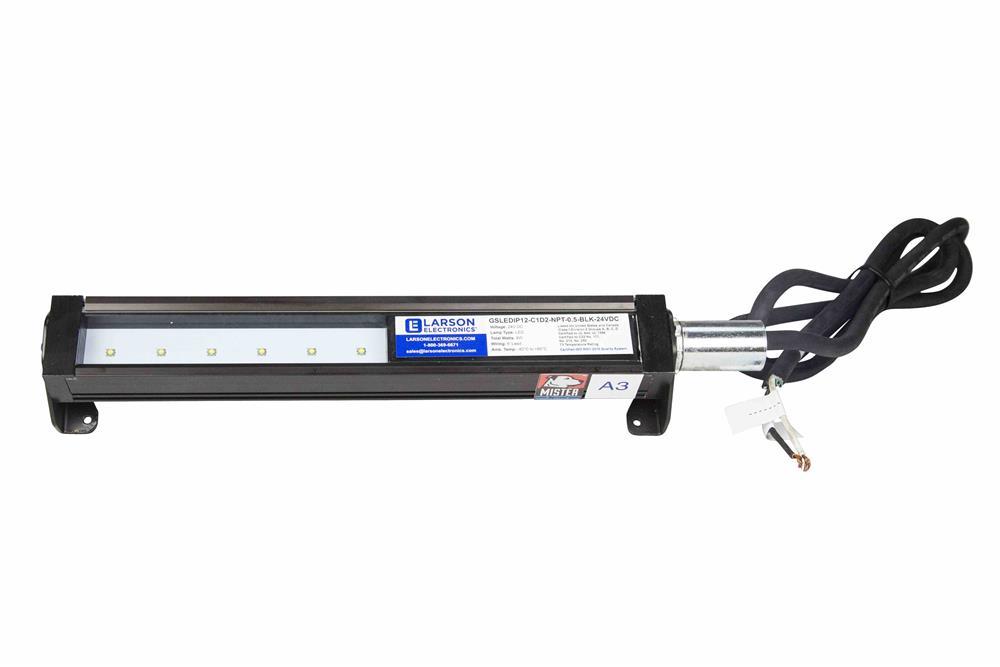

| Buy American Compliant The Larson Electronics GSLEDIP12-C1D2-NPT is a low voltage hazardous location lighting solution approved for Class1 Division 2 environments and U.L. 1598 compliant for use in wet locations. This powerful LED strip light produces 442 lumens, operates from 12 or 24 VDC, and is suitable for a variety of applications, and is terminated with an NPT . The GSLEDIP12-C1D2-NPT is designed to provide a high output and ruggedly durable lighting solution for applications where Class 1 Division 2 compliance is required. This low voltage hazardous area light can be operated with either 12 or 24 volt DC (choose below) current and includes 5 feet of connecting lead with standard two wire configuration. This light is constructed of powder coated extruded aluminum for excellent strength and durability and is rated IP54 for protection against exposure to water spray and limited dust ingress. These units are configured in a 13" long strip or "bar" profile for installation in locations where wide dispersal and a low profile is preferred. The high output, cool running operation, and good color rendering properties of this light make it an ideal replacement for older, bulkier, and less reliable incandescent and halogen light fixtures. |
| Durability/Mounting: The GSLEDIP12-C1D2-NPT hazardous location LED light is constructed of extruded aluminum with a tough powder coat finish for high strength and durability. The housing is IP54 rated, providing limited ingress protection against dusts, and l protection against light water spray such as rain. This design is weather resistant, suitable for indoor or outdoor applications, and ideal for areas where wetness or dusty conditions are commonly encountered. The LEDs in this unit are Cree X-Lamp XR-E units that have been chosen for their high lumen per watt ratio and extreme long life. These Cree LEDs provide over 90 lumens per watt output and have a 70% lumen retention at 50,000 hours, giving them better efficiency and operational life than comparable LEDs. Mounting for this unit is provided by two standard adjustable end brackets that allow operators to mount the light to flat surfaces and then adjust the light vertically for the best placement. The entire assembly weighs 0.7 lbs and measures 13.4 inches in length and 2.68 inches wide and 1.69" deep, making it ideal for mounting in areas where space is limited and a low profile fixture more readily installed. Wiring/Power: These hazardous location LED lights come with a 1/2" or 3/4" NPT hub for connecting a conduit to the fixture, and are also equipped with 6 feet of cord containing a standard two wire (White+ Black-) connecting configuration. These lights are not multi-voltage; each light is preconfigured for 12 or 24 volt DC current at 8 watts .66 amps on 12 VDC and .33 amps on 24 VDC. Versatility: The GSLEDIP12-C1D2-NPT is ETL approved for Class 1 Division 2 groups A,B,C and D locations. This unit carries an IP56 waterproof rating ensuring protection against limited ingress from dusts, dirt, oils and full protection against water sprayed at high pressure directly on the fixture. This light is ideal for indoor or outdoor applications and industrial operations with hazardous location classification where dusty or wet conditions are commonly encountered.  |
