Larson 28W Vapor Proof Dimmable LED Fixture - 0-10V Dimmable - 3500 Lumens - 120-277V AC or 11-25V AC

PuriLite suggests you place an order directly with us for large Larson orders due to the potential customization requirements. Please call us at 1(647) 254-9757 to place your order. If you prefer to place your order online, a PuriLite agent will be in touch with you to discuss any custom options.
Made in the USA

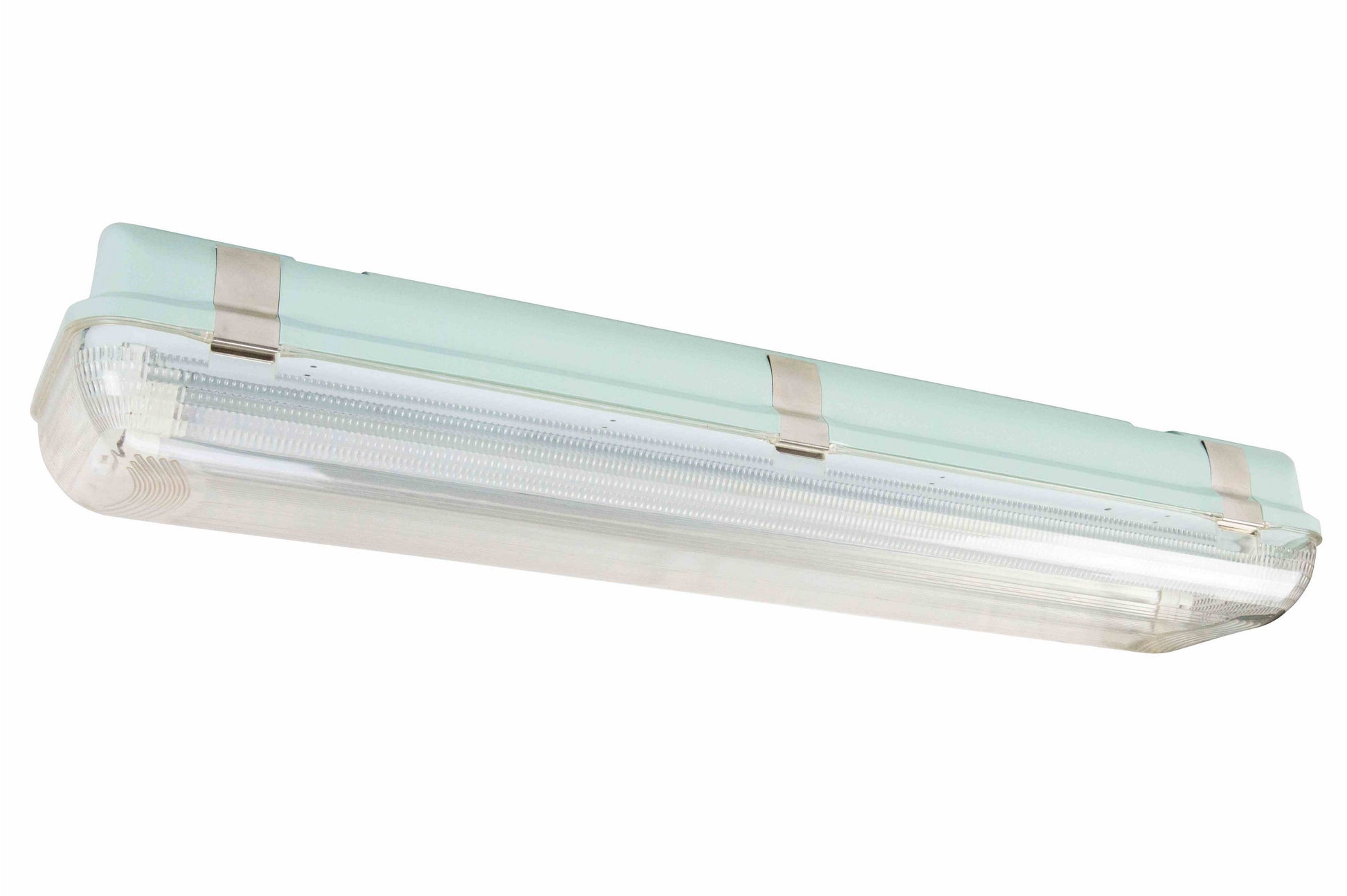

The GVP-24-2L-LED-D-V2-D-V2 from Larson Electronics is a 0-10V dimmable LED fixture similar to our popular explosion proof LED fixtures and provides an LED alternative to fluorescent fixtures that provides longer lamp life and higher performance. These two foot LED fixtures produce more output with longer lamp life and are vapor proof and impact / vibration resistant. Please note that this unit is vapor proof and not approved for use in hazardous locations.
The GVP-24-2L-LED-D-V2 is equipped with two specially designed LED T8-series bulbs which produce 1,750 lumens each and have a correlated color temperature of 5,600K, 4,500K, or 3,000K. The GVP-24-2L-LED-D-V2, two foot long, two lamp 0-10V dimmable LED light fixture is designed for those who wish to replace or upgrade from fluorescent equipped fixtures and offers better light output and longer lamp life with reduced maintenance costs. With no ballast and solid state LED light tubes, this 0-10V dimmable fixture draws less than 0.3 amps while offering durability and versatility that common fluorescent fixtures cannot match.
We have eliminated the ballast normally associated with fluorescent fixtures which reduces overall weight and overall complexity of installation. There is no ballast in this unit and the included
LEDT8-24-V1
LED lamps have a 50,000+ hour service life, both of which result in extreme efficiency and greatly reduced maintenance costs. These fluorescent LED lamps have internal drivers, eliminating external power components. The solid state design of the LED lamps give this fixture superior resistance to damage from vibration, extremes in temperature and a lamp service life over twice that of standard fluorescent bulbs. This second generation lamp is offered in 5600K cool white, 4500K natural white, and 3000K warm white. Our standard unit ships with 5600K unless different color temperature is specified.
Unlike the glass tube design of traditional fluorescent lamps, these LED T-Style lamps have no filaments or fragile housings to break during operation. Instead of using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current applied and emitting light. The LED assembly is mounted to the "tube" constructed from extruded aluminum, with a polycarbonate lens protecting the LEDs. With LED lights, there is no warm up time or cool down time before re-striking and provide instant illumination when powered on, adding to the reliability of LED technology. By nature, LED light sources run significantly cooler than fluorescent lamps, reducing the chance of accidental burns and increased temperatures due to heat emissions. This solid state design of light emitting diodes provides a more reliable, stable, durable, and energy efficient light source over traditional fluorescent lighting.
The 14 watt dimmable LED lamps produce more illumination than standard fluorescent bulbs, but help this unit draw only 1/3 of the current of comparable fluorescent fixtures. The GVP-24-2L-LED-D-V2 is multi-voltage and operates on any voltage from 110V to 277V AC 50/60hz. This LED fixture is 0-10V dimmable. Integral aluminum heat sink tube backings provide cool operation and long LED life, while a simple latching system seals the lens cover to the housing and provides easy access for re-lamping.
This LED light fixture features 0-10V dimming capabilities. This gives operators the ability to manually adjust the brightness of the LED lamp quickly and easily. The 0-10V dimming allows for adjustments to fit the brightness needs of any lighting situation. A 0-10V dimmable light works through the use of a DC control signal that ranges between zero and ten volts. The basic idea is that at 10 volts of input the light is at its brightest level with 0 volts being the lowest possible dimness setting. The smooth, continuous and flicker-free dimming of a 0-10V dimmable LED light is ideal for a wide range of different lighting applications.
This unit is designed to be either surface mounted or hung from cable or chain and includes built in mounts. The GVP-24-2L-LED-D-V2 light fixture is ideal for indoor-outdoor applications and suitable for use as general area lighting, shop lighting, work space lighting, garage and warehouse lighting, and anywhere a rugged and dependable fixture with high output and efficiency is needed. This light comes with a multi-purpose mounting bracket that can be used for a direct surface mount or reversed and used for chain hanging the unit.
Contact info@purilite.ca for more information about our custom options tailored to meet your specific industry needs.
Superior LED Benefits
1. 50,000 hour lifespan.

Specifications
Lamp Type: 0-10V Dimmable LED
Listing: United States - Canada
Dimensions: 25"L x 5-7/8"W x 4-3/16"H
Weight: 4 lbs
Voltage: Universal 120-277VAC 50/60 Hz or 11-25V AC/DC
Total Watts: 28 watts
Total Lumens: 3,500
LED Lamp Life Expectancy: 50,000+ Hours
Luminous Efficiency: 125 Lumens per Watt
Color Temp: 5600K, 4500K, 3000K
Color Rendering Index: >80
Beam Angle: 160°
Power Efficiency: 90%
Power Factor: >0.95
Ambient Operating Temp Range: -30°C to +85°C
Housing Material: Polycarbonate
Lens Material: Polycarbonate
Mounting: Surface or Chain Standard
Wiring: 1/2" Hub
