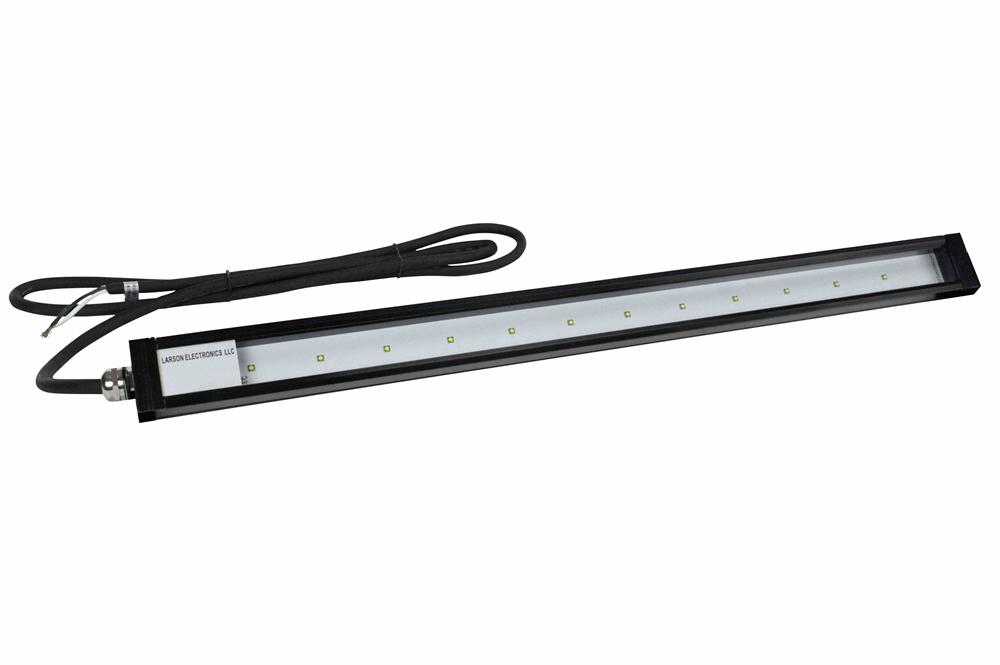

20W LED Strip Light for Hazardous Location Lighting - C1D2 - Rear Channel Mount
20W LED Strip Light for Hazardous Location Lighting - C1D2 - Rear Channel Mount
| HAL-24-16W-LED-RCM Hazardous Location LED Lighting | Ratings |
| Listing: United States - Canada | Class I Division 2 Groups A, B, C & D |
| Lamp Type: LED | CSA 22.2 No. 250.0 |
| Dimensions: 24"L x 2.68"W x 1.69"D | UL 1598 |
| Weight: 2.1lb | 0.9 kg | IP65 Ingress Protection |
| Voltage: 11-25 Volts AC/DC | T3 Temperature Rating |
| Total Watts: 20 | 70% Lumen Retention after 50,000 Hours |
| Total Lumens: 2,600 | Factory Sealed Light Fixture |
| Luminous Efficacy: 130 Lm/W |  |
| Lamp Life: 50,000+ Hours | |
| Color Temp: 5000K, 4000K or 3000K | |
| Color Rendering Index: >75 CRI | |
| Beam Angle: Spot or Flood | |
| Power Efficiency: >95% | |
| Power Factor: 0.992 | |
| Amperage: 1.2A @ 12V, 0.58 @ 24V | |
| Ambient Operating Temp Range: -40°C to +60°C | |
| Operating Temp Rating: T3 | |
| Housing Material: Extruded Aluminum | |
| Housing Finish: Powder Coated - Black | |
| Lens Material: Polycarbonate | |
| Mounting: Rear Channel Mount | |
| Wiring: 6` 16/3 SOOW w/ Flying Leads | |
| Buy American Compliant The HAL-24-16W-LED-RCM from Larson Electronics is a Low Profile Hazardous Location Lighting Solution that is approved for Class I, Division 2 Groups A, B, C & D environments and UL 1598 compliant for use in wet locations. This powerful 24" long LED strip light produces 2,600 lumens, operates on 11-25V AC/DC, and is suitable for a variety of applications. The HAL-24-16W-LED-RCM is designed to provide a high output and ruggedly durable lighting solution for applications where Class I Division 2 compliance is required. This low profile hazardous location LED strip light can be operated on 11-25V AC/DC low voltage electrical current and includes 6 feet of connecting lead with flying leads. This light is constructed of powder coated extruded aluminum for excellent strength and durability and is rated IP65 for protection against exposure to low pressure water jets from all directions and sealed against dust penetration. These units are configured in a 24" long strip or "bar" profile for installation in locations where wide dispersal and a low profile is preferred. The high output, cool running operation, and good color rendering properties of this light make it an ideal replacement for older, bulkier, and less reliable HID and halogen light fixtures. LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life. LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps. The LEDs in this linear light are Cree LEDs that have been chosen for their high lumen per watt ratio and extreme long life. These Cree LEDs provide over 130 lumens per watt output and have a 70% lumen retention at 50,000 hours, giving them better efficiency and operational life than comparable LEDs. This LED light produces 2,600 lumens of high-intensity LED light with color temperature options of 5000K, 4000K or 3000K along with a color rendering index of 75 which produces colors and details much more accurately than incandescent, halogen, or fluorescent light fixtures. Durability: The HAL-24-16W-LED-RCM hazardous area LED light is constructed of extruded aluminum with a tough powder coat finish for high strength and durability. The housing is IP65 rated, providing ingress protection against dusts, and protection against low pressure jets of water from all directions, such as wash-down areas. This design is weatherproof, suitable for indoor or outdoor applications, and ideal for areas where wet, damp, or dusty conditions are commonly encountered. Mounting: This LED light is compatible with rear channel mounting applications. Flat and lock washers, 1/4"-20 nut and bolt are provided for seamless installation inside panels, cabinets and more. Wiring/Power: This light operates on low voltage 11-25V AC/DC current. Each strip light is equipped with 6 feet of 16/3 SOOW cable for making power connections.  |
