Magnetic Mount 31 Watt Low Voltage LED Fixture - 50' Cord - Hazardous Location Lighting - C1D2
Magnetic Mount 31 Watt Low Voltage LED Fixture - 50' Cord - Hazardous Location Lighting - C1D2
| HAL-31L-LV-MB-50 Hazardous Location LED Light | ETL Listed |
| Lamp Type: LED | Class 1 Division 2 Groups A,B,C,D |
| Lamp Dimensions (w/o Bracket): 6.9" Diam"- 2.9"-Depth | CSA 22.2 No. 250.0 |
| Lamp Dimensions (w/ Bracket):Â 5.5"-H 8" W | UL 1598 |
| Weight: 9lb | IP66 Ingress Protection |
| Watts: 31.6 W @ 12 VDC | 33.6 W @ 24 VDC | T3 Temperature Rating |
| Voltage: 12-28V DC | LM-80 > 60,500 hrs (based on Cree long term tests) |
| Lumens:Spot: 2334 - Flood: 1996 | |
| Lamp Life Expectancy: 100,000 Hours | |
| CRI:Â CW: 75, NW: 75, WW: 80 | |
| Amps: 2.64 A @12 VDC - 1.4 A @ 24 VDC | |
| Light Color:Â CW: 6500K, NW: 4300K, WW: 3500K | |
| Beam Type: 30° Spot or 100° Flood | |
| Mounting: Magnetic Mount Trunnion U-Braclet | Â |
| Materials: Machined aluminum housing - acrylic lens  |  |
| Housing Finish: Clear anodized finish | |
| Temp Range: -40°C €“ +85°C | |
| Typical Case Temperature: ~20°C above ambient temperature | |
| Wiring: 50` Lead w/ Turck Connector | White: + Black: -Â | |
| Termination: 4-pin flat, 7-pin round, 7-pin flat, ring terminals, 5-15 explosion proof, or flying leads | E-mail: |
| 3 year warranty replacement on this LED light. After 30 days, the customer ships the failed LED light and/or LED bulb to Larson Electronics at their expense. If the failure is a manufacturer defect, we will ship a new replacement to the customer. If failure occurs within 30 days of receipt, Larson Electronics will provide a return label via email to the customer. When the failed light is returned, we will ship a new replacement. |
Buy American Compliant

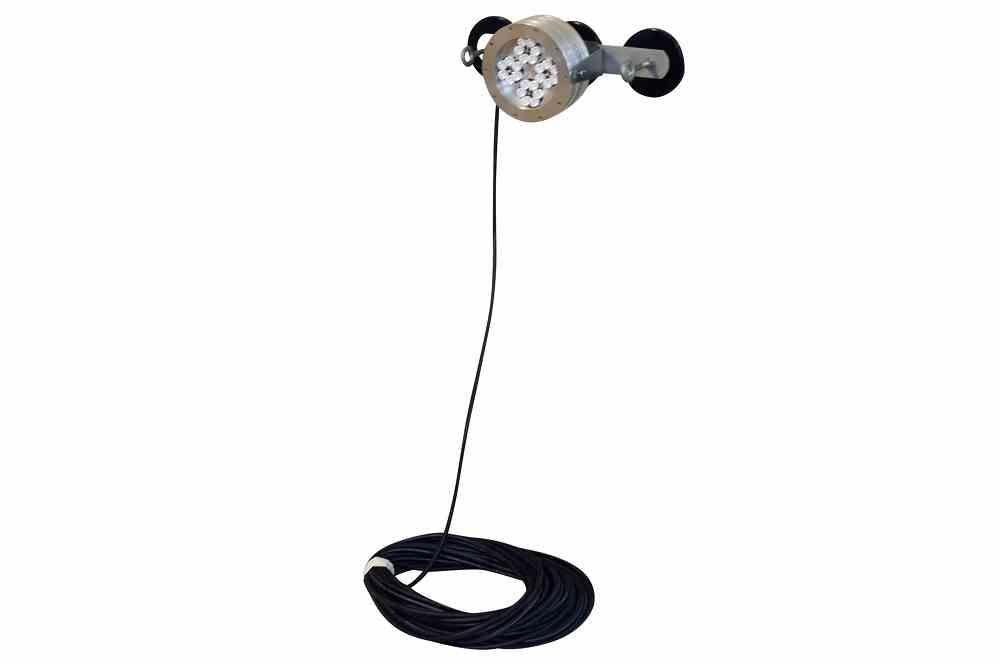

The HAL-31L-LV-MB-50 is a magnetic mount low voltage hazardous location lighting solution approved for Class 1 Division 2 environments and UL 1598 compliant for use in wet locations. This powerful LED light produces 2334 lumens, operates from 12 or 24 VDC, and is available in a variety of configurations to allow tailoring to the specific requirements of various applications.
The HAL-31L-LV-MB-50 is designed to provide a high output and ruggedly durable lighting solution for applications where Class 1 Division 2 compliance is required. This low voltage explosion proof light can be operated with either 12 or 24 volt DC current and includes 50 feet of connecting lead with standard two wire configuration. This light is constructed of precision machined aluminum for excellent strength and durability, clear anodized for corrosion resistance, and is IP66 rated for ingress protection against dust and direct exposure to high pressure water spray. An adjustable trunnion mount U-bracket with an 600lb grip magnetic base provides versatile mounting for temporary illumination.
The HAL-31L-LV-MB-50 is available in a 30 degree spotlight beam configuration for distance and a 100 degree configuration for wide area illumination. The light output is offered in 6500K cool white, 4300K neutral white, and 3500K warm white color temperatures for maximum illumination. The high output, cool running operation, and good color rendering properties of this light make it an ideal replacement for older, bulkier, and less reliable metal halide and high pressure sodium lamps.
|
||||||||
| Durability: The HAL-31L-LV-MB-50 hazardous location LED light is constructed of machined aluminum for high strength and durability with a clear anodized finish for increased corrosion resistance. The housing is IP66 rated, providing protection against intrusion into the housing from dusts, dirt, oils and water directly sprayed on the housing at high pressure. This LED light is equipped with an impact resistant acrlyic lens for increased safety compared to glass lenses. This design is weather resistant, suitable for indoor or outdoor applications, and ideal for areas where wetness or dusty conditions are commonly encountered. High Output LEDs: The LEDs in this unit are Cree X-Lamp XR-E units that have been chosen for their high lumen per watt ratio and extreme long life. These Cree LEDs provide over 90 lumens per watt output and have a 70% lumen retention at 100,000 hours, giving them better efficiency and operational life than comparable LEDs. These lights are available in a 30 degree spotlight configuration for long beam length or 100 degree flood configuration for wide area coverage. The HAL-31L-LV-MB-50 has multiple color temperature options and is offered in 6500K cool white with a color rendering of 75, 4300K neutral white with a color rendering of 75, and 3500K warm white with a color rendering of 80. Mounting: Mounting for this unit is provided by an included aluminum yoke that allows vertical adjustment of the light once installed. The mounting yoke includes three 200lb magnets, providing 600lb of magnetic gripping force and allowing this unit to be mounted to any ferrous surfaces. The hazardous location low votage LED light fixture is ideal for mounting in areas where space is limited and a heavy fixture cannot be installed due to lack of support. Wiring/Power: These hazardous location LED lights are equipped with 50 feet of cord containing a standard two wire (White+ Black-) connecting configuration. These lights operate from 12 to 24 volt DC current and draw 31 watts 2.64 amps on 12 VDC and 33 Watts 1.4 amps on 24 VDC. The power cable is terminated in a 4-pin flat, 7-pin round, 7-pin flat, ring terminals, explosion proof 5-15 straight blade plug, or flying leads. Please choose cord option below. Versatility: The HAL-31L-LV-MB-50 is ETL listed for Class 1 Division 2 groups A,B,C and D locations, certified to CSA 22.2 No. 250.0, and conforms to UL 1598. This unit carries an IP66 waterproof rating ensuring protection against ingress from dusts, dirt, oils and water sprayed at high pressure directly on the fixture. This light is ideal for indoor or outdoor applications, food processing, and industrial operations with hazardous location classification where dusty or wet conditions are commonly encountered. | ||||||||
| Â Â |
