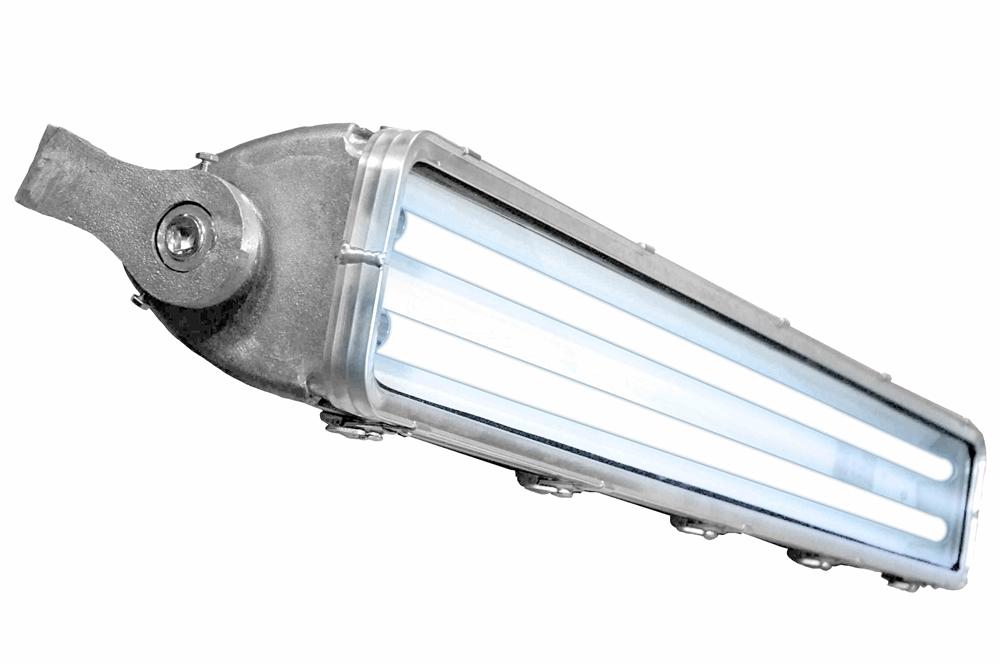

Class 1 Division 2 Fluorescent Light - 4 foot 2 lamp - UV bulbs - Glass Lens

LARSON ELECTRONICSSKU: PL3-HAL-48-2L-BL-UV
filler

Price:
Sale price$1,880.00

Description

Specifications / Additional Information
HAL-48-2L-BL-UV Hazardous Location Ultraviolet Ratings/Approvals
NRTL Listed for United States & Canada Class 1 Division 2, Groups A,B,C,D
Surface Mount Dimensions: 51.28"-L x 7.06"-W x 8.42"-H NRTL Certified to UL 595 Outdoor Marine Type (Saltwater)
Pendant Mount Dimensions: 51.1"-L x 7.06"-W x 6.65"-H NRTL Certified to UL 1598 Marine Type
Weight: 33Lbs Certified Canadian Standards
Voltage: Universal 120-277V AC 50/60 H California Title 24 Compliant
Total Watts: 80W* T4C Temperature Rating
Total Intensity: 16.2 W Silicone Free
Lamp Life Expectancy: 5,000 Hours Made in the USA
Radiant Efficiency: 202.5 mW/w
Light Color: Ultraviolet - UVA, UVB, or UVC
Wavelengths: 400-315Nm (UVA), 315-280Nm (UVB), or 280-100Nm (UVC)
Beam Angle: 150°
Ambient Operating Temp Range:-30° C to +70°C
Operating Temp Rating: T4C Rated
Minimum Operating Temp: -30°C
Maximum Case Temp: +90°C
Housing Material: Extruded Aluminum - Copper Free
Lens Material: Borosilicate Glass
Gasket Material: Neoprene
Mounting: Surface Standard - Pendant Optional
Wiring Hub: 1/2" or 3/4" NPT
Warranty: 5 Years**

*Wattage totals vary with different lamp options.

' Product Overview '
Made in Texas The Larson Electronics HAL-48-2L-BL-UV Hazardous Location Ultraviolet Fluorescent Light Fixture is rated Class 1, Division 2, Groups A, B, C, and D and NRTL Listed for United States and Canada. This fixture uses a special ballast and bulb combination to produce light in the ultraviolet spectrum. This lamp is T4C temperature rated and ideal for hazardous locations where UV lamps are used to cure coatings and adhesives, as germicidal agents, or for non-destructive testing. The HAL-48-2L-BL-UV fixture is a 4 foot long, 2 lamp, Class 1 Division 2 hazardous location fluorescent light that emits light in the ultraviolet spectrum. The HAL-48-2L-BL-UV can be configured to produce UVA or UVC light which is typically used for curing coatings or adhesives, pest management or in germicidal applications. The lamps are protected by an aluminum framed hinged glass door secured with four turn latches and the fixture is constructed of copper free aluminum alloy. The lamp reflector is corrosion resistant heavy gauge aluminum and coated with a high gloss reflective finish. The HAL-48-2L-BL-UV provides operators in hazardous locations with a reliable and durable UV lighting solution for open areas where flammable chemicals and vapors may occasionally be present.
Click Photo to Enlarge Click Photo to Enlarge
Ultraviolet Wavelength Options:  Ultraviolet A Wavelength produces a longer wave between the 400nm - 315nm spectrum. Ultraviolet B Wavelength produces a shorter wave than the UVA wavelength. These medium sized waves range from 315nm - 280nm. Ultraviolet C wavelength is reduced exceptionally. Some refer to this wave as the `germicidal` wave. The Ultraviolet C Wavelength ranges from 280nm - 100nm. Standard Surface Mount Brackets: Each L bracket is cinched to the bracket mounting peg on each side of the light. The angle of the bracket is set by tightening two cap screws on either side of the bracket. The cap screws act as a set screw. The bracket itself is mounted via a single bolt hole at the top the bracket. There are two brackets, one on each end of the light. Once the brackets are mounted to a surface (ceiling, floor or wall), the light fixture can be removed from the brackets by loosening the cap screws that hold the bracket to the mounting peg. Mounting brackets are removable. A single through hole enables the operator to install the light to any surface. A sliding bracket mount is available so operators can retrofit this LED light fixture to use the per-existing mounting holes from other fluorescent fixtures. The sliding mount brackets are available in the related items order section below.. Suggested Applications: Aircraft maintenance, Oil drilling rigs, Refineries, Solvent and cleaning areas, Gas processing plants, Chemical manufacturing, Waste treatment plants, Gas processing plants.
Made in USA Quality Lamp Options
1. Each unit dialectically tested. 2. Fixture arrives assembled and lamped to reduce installation time and cost. Adjustable mounting brackets enable the operator to choose any mounting angle for the fixture, where other models may only offer one or three choices. 3. Fixture constructed of extruded corrosion resistant copper free aluminum alloy. 4. Relamping done via 4 turn latches, which enable the operator to unlatch the hinged door and access the lamps. 5. Heavy gauge extruded aluminum reflectors with high gloss reflective finish. Resists dents and corrosion. 6. 1/2" or 3/4", threaded access hole for wiring conduit.  7. Units are capable of being wired end to end in series. Lamp options for UV fixtures are determined by UV range. Operators can specify when ordering- UVA (-A  suffix), and UVB,(-B suffix) UVC (-C suffix). T8 bulbs designed for UV applications are used.  The bulb and ballast in our UV fluorescent fixtures are unique to UV applications. UVA(-A) 400nm - 315nm UVB (-B) 315nm - 280nm  UVC (-C) 280nm - 100nm
