C1D2 Bug Eyes Emergency Lighting System - Hazardous Locations - 90 Minutes - 120-277V AC - 50Hz

LARSON ELECTRONICSSKU: PL3-HAL-EMG-12W-2LH-50HZ
filler

Price:
Sale price$6,442.00

Description

Specifications / Additional Information
HAL-EMG-12W-2LH-50HZ Emergency Light Ratings/Features:
Type: 50Hz Halogen Emergency Light Class I Division 2 Groups A, B, C & D
Battery Type: Maintenance-free Sealed Lead Calcium Class I Zone 2 IIA, IIB and IIC
Case Dimensions: 13.5"H x 15.5"W x 6.25"D 90 Minute Emergency Runtime
Light Head Dimensions: 5.50" Diameter Durable Fiberglass Housing
Temperature Rating: 10°C to 40°C 120-277V AC Voltage
Battery Type: Sealed Lead Acid Indicator Lights Signal Status
Total Watts: 16W (8W per light head) 24 Hour Battery Recharge Time
Bulb Type: Halogen
Battery Recharge Time: 24 hours
Case Material: Fiberglass
Mounting: Surface Mount
Emergency Run Time: 90 minutes
' Product Overview '

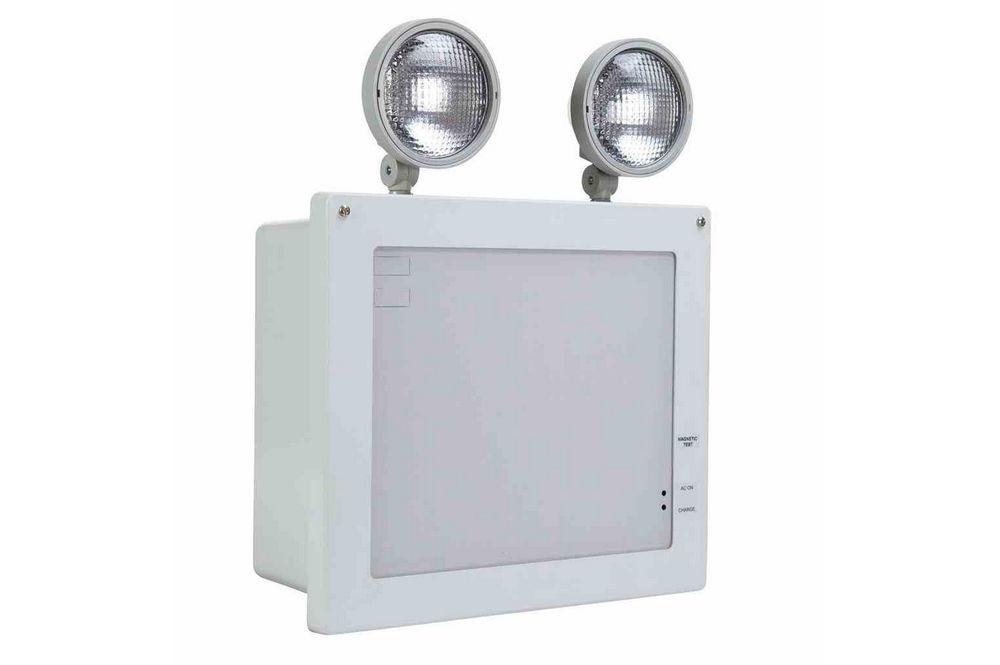

The HAL-EMG-12W-2LH-50HZ from Larson Electronics is a Class I Division 2 Explosion Proof Emergency 50Hz Lighting Unit. The HAL-EMG-12W-2LH-50HZ is designed to be able to withstand harsh conditions and hazardous environments with a durable fiberglass construction. This 16W Halogen Emergency Light operates on 120-277V AC voltage and includes a sealed lead acid battery for emergency situations. The HAL-EMG-12W-2LH-50HZ is a 50Hz fixture that is rated for Class I Division 2 Groups A, B, C & D hazardous locations as well as Class I Zone 2 IIA, IIB and IIC classified areas. This emergency exit sign is constructed from durable fiberglass and is corrosion and vandal resistant. The emergency light is fully sealed and has a NEMA 4X rating for protection against the ingress of dust and water. This emergency light also features an LED status indicator light and a magnetic test switch. A front access panel door allows for easy installation and maintenance while a stainless steel breather valve provides ample ventilation. Light Heads: The dual emergency light heads on the HAL-EMG-12W-2LH-50HZ each consist of one 8W halogen light inside of high impact thermoplastic housings. Each light is a weatherproof Par36 style emergency head finished in a neutral gray.The emergency head design features a locking collar to securely hold each lens in place. The light heads are completely adjustable for precise positioning. Power/Voltage: The HAL-EMG-12W-2LH-50HZ operates on 120-277V AC voltages. Battery: The HAL-EMG-12W-2LH-50HZ features maintenance free sealed lead acid batteries that provide an emergency runtime of at least 90 minutes. This emergency light uses a high-efficiency two-stage charger that features precise float voltage control as well as low voltage disconnect protection. The charger on the HAL-EMG-12W-2LH-50HZ also has brownout and short circuit protection. The recharge time on the included batteries is 24 hours. Mounting: The HAL-EMG-12W-2LH-50HZ is designed for surface wall mounting and features four stainless steel mounting feet for simple and precise installation. Applications: Extraction rooms, warehouses, manufacturing facilities, chemical plants and any other hazardous locations or areas with harsh locations that require exit signage with emergency lighting capabilities.
