Hazardous Area Fluorescent Light - Emergency Backup Ballast - Class I, Div. II - 4', 4 Lamp - T8

Hazardous Area Fluorescent Light - Emergency Backup Ballast - Class I, Div. II - 4', 4 Lamp - T8

$2,696.00 CAD
$2,696.00 CAD
促销 售罄
结账时计算的运费。
Specifications / Additional Information
HAL-EMG-48-4L-T8 Hazardous Area Ratings
NRTL Listed for United States & Canada Class 1 Division 2, Groups A, B, C, D
Lamp Type: Fluorescent Class 2 Division 2 Groups F,G
Dimensions: W-16 3/16" L-51 1/2 " H-5 5/16 " Class III
Weight: 29 Lbs IP65
Voltage: Universal Voltage 120-277V AC 50/60 Hz Wet Area Suitable
Low Voltage (Optional): 12-24V DC NRTL Certified to UL 1598
Total Watts: 128watts* NRTL Certified to UL 844
Total Lumens: STD-T8 Bulbs 11,800 California Title 24 Compliant
Luminous Efficacy STD-T8 Bulbs: 90 Lm/W Switch Leg for Powering Light On/Off
Lamp Life Expectancy: STD-T8 Bulbs 24,000 Hours
Color Temp: 4100K- T5HO Bulbs
Beam Angle: 150°
Ambient Operating Temp Range:-40°C to +50°C
Operating Temp Range: T3C-T4A Rated
Mounting: Surface Bracket Standard - Pendant Optional
Wiring Hub: 1/2" or 3/4" threaded 2-On Top 2-On Ends
Materials: Powder Coated 18 Gauge Steel
Warranty: YES-5 Years*


' Product Overview '

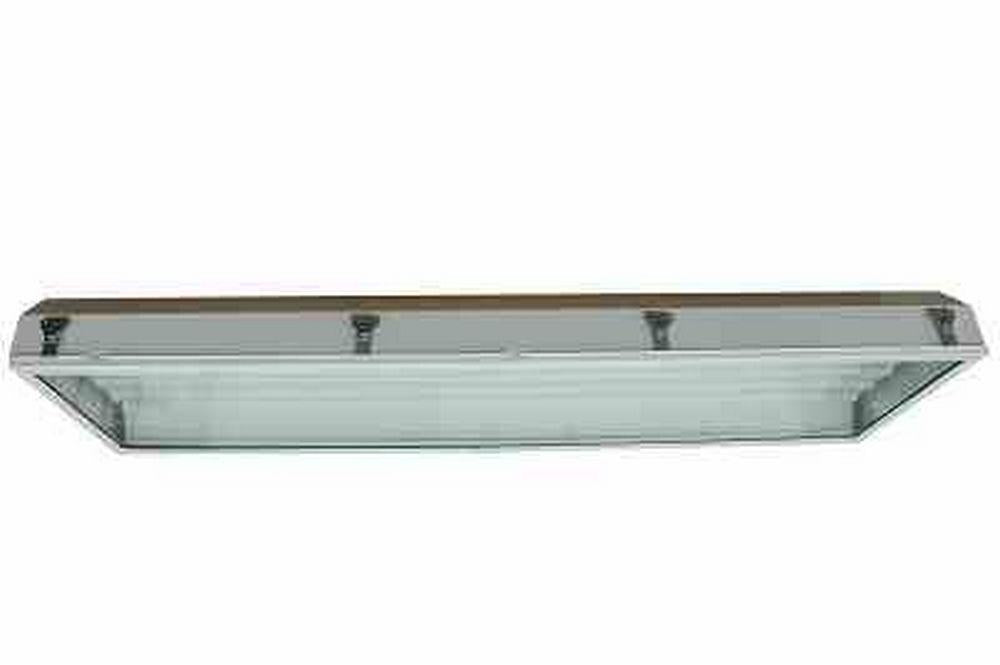

Made in the USA The Larson Electronics HAL-EMG-48-4L-T8 Hazardous Area Fluorescent Light Fixture is NRTL Listed for United States and Canada Class 1 Division 2 Groups A, B, C and D and ideal for use in industrial hazardous locations where wet conditions and chemical/petrochemical vapors may be encountered. The HAL-EMG-48-4L-T8 fixture is a 4 foot long, 4 lamp, Class 1 Division 2 Groups A, B, C and D hazardous area fluorescent light and a good choice for use in industrial applications and wet areas. This fixture is T4A temperature rated and comes standard with 4 F32-T8/841 bulbs. The housing on this unit is constructed of powder coated 18 gauge steel for durability and contains a hinged reflector and ballast tray for easy and safe servicing. The lamps are held in place by spring loaded sockets and protected by a hinged glass door with a 3/16” tempered glass lens which is secured with four turn latches. This fixture is multi-voltage capable and can be operated with voltages of 120, 277, 347 & 480 VAC. This fixture is IP65 rated water and dustproof and approved for wet and marine locations. This fixture also features multiple 1/2" NPT wiring hubs with two located on top of the fixture and two more located at each end, allowing operators to through-wire multiple units in series or mount the unit with wire through conduit pendant mounts. The HALS-EMG-48-4L-T8 provides operators in hazardous locations with a very durable, reliable and affordable lighting solution for open areas where flammable chemicals and vapors may occasionally be present.
This fluorescent light works, mounts and is wired like our HAL-48-4L-T8 fluorescent light fixtures. The main difference is that we attach an extra Bodine ballast box to the unit that adds emergency light functionality to the fixture. This explosion proof emergency light will run the standard 90 minutes after power is lost. The light recharges the battery once electrical power is restored. Standard configuration includes a single emergency ballast that will run a single lamp at 900 lumens for 90 minutes. For an additional charge, a second ballast can be added to run a second lamp for 1800 total lumens output for 90 minutes. The battery backup unit includes a switched leg for turning the light fixture on/off without kicking the unit into emergency mode.
Standard Surface Mount Brackets: Each surface mounting bracket is attached on each end of the light and allows the operator to adjust the angle of the entire fixture. Pendant mounts are available for operators who wish to mount these fixtures away from the ceiling surface. Suggested Applications: Aircraft maintenance, Oil drilling rigs, Refineries, Solvent and cleaning areas, Chemical manufacturing, Waste treatment plants, Gas processing plants.
Made in USA Quality Lamp Options
1. Each unit dialectically tested. 2. Fixture arrives assembled and lamped to reduce installation time and cost. Adjustable mounting brackets enable the operator to choose any mounting angle for the fixture, where other models may only offer one or three choices. 3. Fixture housing constructed of white powder coated 18 gauge steel. 4. Relamping done via 4 turn latches, which enable the operator to unlatch the hinged door and access the lamps. 5. Heavy gauge hinged reflector with high gloss reflective finish. Resists dents and corrosion. 6. Multiple 1/2" or 3/4" , threaded NPT access holes for through wiring.  7. Units can be wired end to end in series. F32-T8/841 – 32 watt, 2950 lumens per bulb, 24,000 hours life, 4100 Kelvin color (Suffix –T8)
