185W Hazardous Location LED Light - C1D2 - 18,500 lms - Trunnion Mount - IP68
185W Hazardous Location LED Light - C1D2 - 18,500 lms - Trunnion Mount - IP68
| HAL-TRN-240W-RSLED LED Light | Ratings |
| Lamp Type: LED | Listed for United States, Canada, Europe, International |
| Lamp Dimensions: 15.75"L x 15.75"W x 7.28"H | Class I, Division 2, Groups A,B,C,D |
| Voltage: Universal- 90-305V AC, 50/60Hz | IEC Ex / ATEX - Ex ec IIC T4 Gc |
| Watts: 185W | Approved for Zone 1, Zone 21 |
| Lumens: 18,500 | NRTL Certified to UL 844 |
| Luminous Efficacy: 100 Lm/W | NRTL Certified to UL 1598 |
| LED Lamp Life Expectancy: 100,000+ Hours | NRTL Certified to C22.2 No. 137 |
| Color Temp: 5700K, Cool White (Also available in 4000K and 2700K) | NRTL Certified to C22.2 No. 250.0 |
| Beam Angle: 120° | NRTL Certifed to IEC 60079 |
| Power Factor: ~0.98 | NRTL Certifed to EN 60079 |
| Ambient Operating Temperature Range: -30°C to +65°C | T4 Temperature Rating |
| Temperature Rating: T4 | PSE Certified, SAA Certified |
| Ingree Protection: IP68 | IP68 Waterproof |
| Housing Material: Die Cast Aluminum | |
| Lens Material: Tempered Glass | |
| Mounting: Adjustable Trunnion Mount | |
| Wiring: 10" 16/3 SOOW Cable with Flying Leads | |
| Wiring Hub: 3/4" NPT | |
| Housing Color: Grey |

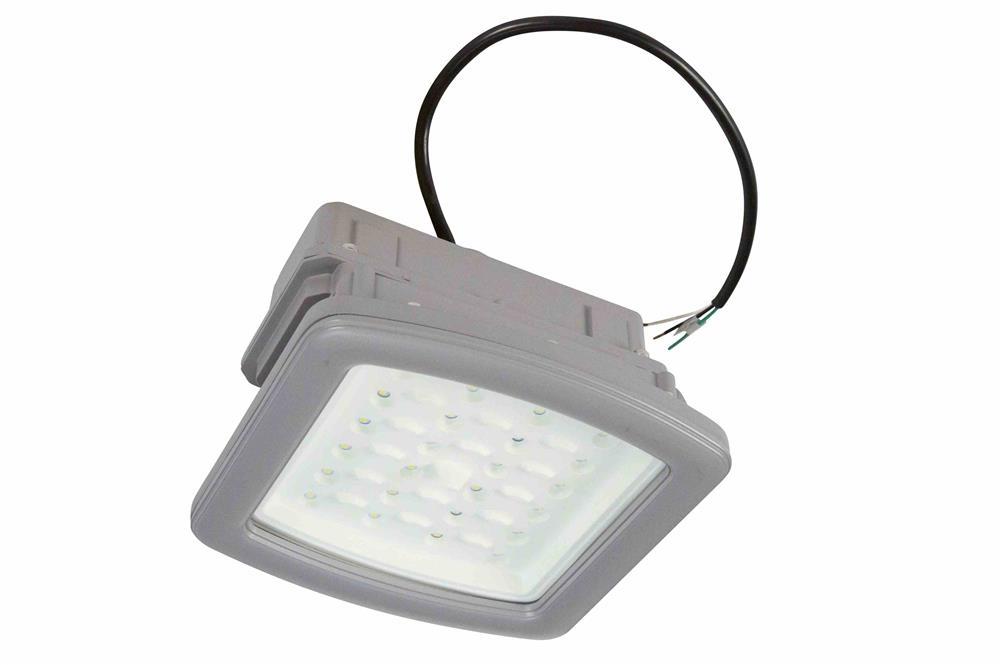

| The Larson Electronics HAL-TRN-240W-RSLED Hazardous Location LED Light provides operators with powerful and energy efficient illumination in Class I, Division 2 rated work sites. Designed for trunnion mounting applications, this 185-watt unit offers 18,500 lumens of output. LED technology and compact design makes this lamp an excellent replacement upgrade option for bulky and high maintenance cost of older fixtures. This Class I, Division 2 LED light fixture provides 18,500 lumens of lighting power while drawing 185 watts. Constructed from durable die cast aluminum with a tempered glass lens, this LED light is built to last. This hazardous location light is rated for 100,000+ hours of lamp life and serves as a great option when upgrading lighting from older and higher maintenance cost explosion proof lighting. The HAL-TRN-240W-RSLED accepts a universal voltage range of 90-305V AC. It features 156 individual LEDs that offer high-quality light in a 120° beam spread. Recommended in a color temp of 5700K, this light is also available in 4000K and 2700K. The cool white of a 5700K color temperature fixture provides clear, bright light for great illumination of any work area. A dust resistant coating protects the rear cooling fins from excessive dust build-up making this hazardous area LED lighting unit from overheating and compromising the lifespan of the LEDs. |
|
|
| LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current applied and emitting light. With LED lights, there is no warm up time or cool down time before re-striking and provide instant illumination when powered on, adding to the reliability of LED technology. By nature, LED light sources run significantly cooler than traditional lamps, reducing the chance of accidental burns and increased temperatures due to heat emissions. This solid state design of light emitting diodes provides a more reliable, stable, durable, and energy efficient light source over traditional lighting. LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps. Wiring: The hazardous location LED light is outfitted with 10" of 16/3 SOOW cable with flying leads. Mount: The light head is secured to an adjustable trunnion mounting bracket for low profile mounting and easy adjustability. Applications: Refineries, Storage Facilities, Gas and Oil Facilities, Wastewater and Sewage Plants, Gas Stations, Farm Buildings, Aerospace, Military and more. |
