400W High Pressure Sodium Light - C1D2 Groups A,B,C,D - 480V 1PH - T3B Temp Rating - 50,000 lumens
400W High Pressure Sodium Light - C1D2 Groups A,B,C,D - 480V 1PH - T3B Temp Rating - 50,000 lumens
| HAL-TRN-400W-HPS-480V.1P High Pressure Sodium | Ratings |
| Lamp Type: High Pressure Sodium | Class I, Division 2 Groups A, B, C, D |
| Dimensions: 47 " W X 11" D X 25 1/4" H w/Trunnion Mount | UL Standard 1598 (Supersedes UL Standard 57), 1598A, 844 |
| Weight: 45 lbs | Max OP Temp 325°C (T1 NEC ID Number) |
| Voltage: 480V 1PH | Outdoor Marine Approved |
| Watts: 400 | Bulb NOT Included |
| Lumens: 50,000 | |
| Lumens Per Watt: 125 | |
| Lighting Configuration: Flood Pattern | |
| Temp Rating: T3B | |
| Mounting: Slip Fit Pole Mount or Zinc Trunnion | |
| Wiring: 3/4" Threaded NPT Conduit Entrance |

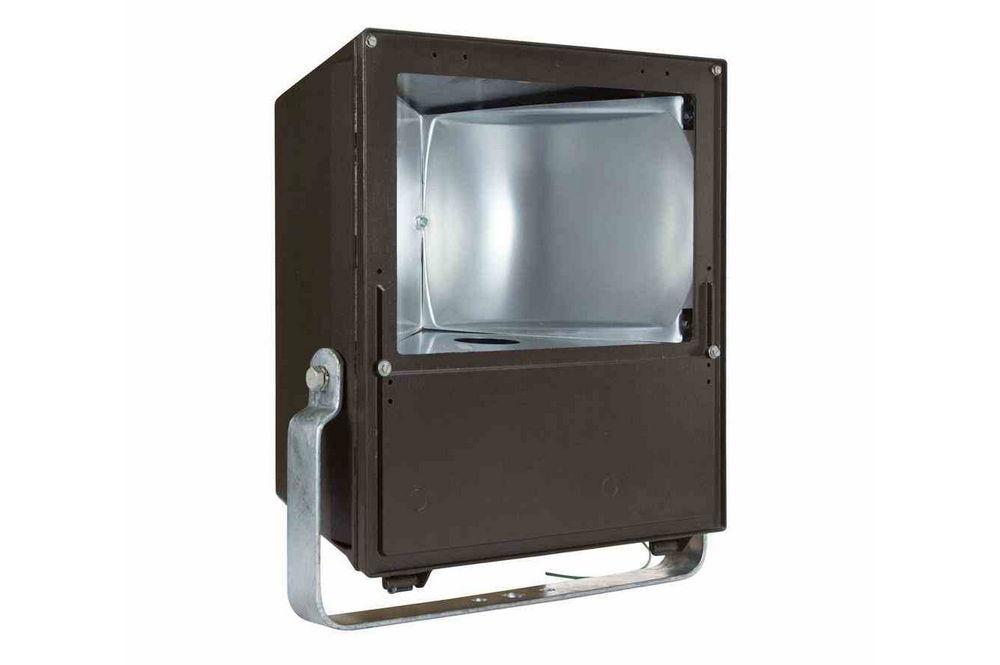

| Made in the USA The extremely durable Larson Electronics HAL-TRN-400W-HPS-480V.1P high pressure sodium hazardous area light produces exceptional illumination from a 400 watt high pressure sodium lamp. Constructed of die cast aluminum and U.L. listed for marine use, this metal halide fixture is a versatile and ideal hazardous area lighting solution for areas where wet or corrosive environments are encountered. The rugged HAL-TRN-400W-HPS-480V.1P high pressure sodium light fixture is weatherproof and suitable for use in wet, outdoor and marine environments, making it an ideal lighting solution for industrial applications, boat docks, building exteriors and outdoor work areas. The lamp`s housing is weatherproof and constructed of pressure cast copper free aluminum with an architectural bronze Polyester finish. The lens door is pressure-cast copper-free aluminum, and secured with 1/4†diameter captive stainless steel slotted hex-head bolts. Compatible with 480V single phase, this unit features an integral multi- tap ballast. The optical assembly includes thermal shock and impact resistant door glass with a pressure-cast copper-free aluminum door frame and heavy duty, high temperature silicone rubber seal. The lamp socket is a specification grade mogul base porcelain unit with heavy gauge brass, a nickel-plated, double lamp-grip screw shell and spring-loaded center contact. The reflectors are a double segment compound parabolic design with Alzak® finish for maximum efficiency. Mounting choices include: (1) Yoke mount: zinc plated steel yoke with architectural bronze Polyester finish. (2) Pole top mount: built-in slip-fitter for internal wiring. Adjustable laterally and vertically. Slip fits 2†or 2 1/2†pipe. Architectural bronze Polyester finish. This hazardous area light is rated IP65, U.L. standard 844 and 1598 compliant, approved Class 1 Division 2, Groups A,B,C,D, and U.L. listed 1598A for outdoor salt water marine environments. The integral multi-tap ballast is protected within the weatherproof housing and has primary electrical taps for 120V, 208V, 240V, and 277V. This lamp is suitable for use in areas where flammable petrochemical vapors are sometimes present. This 400 watt high pressure sodium light is highly durable, produces 50,000 lumens in a wide flood pattern, and has a maximum operating temperature of 325°C (T1 NEC Identification Number). All hardware on this unit is resistant to rain, snow, salt water and corrosive chemicals. The heavy duty design and attractive finish of this fixture makes it a popular choice for outdoor applications regardless of whether the locations are designated hazardous or not. LAMPS: Use only lamps specified on nameplate. Bulb not included with fixture. Observe lamp manufacturer’s recommendations and restrictions on lamp operation, particularly ballast type, burning position, etc.  |
|
Click Here for Notes on Wiring this Light
Make all electrical connections in accordance with the National Electrical Code and any applicable local code requirements. Verify that supply voltage is correct by comparing it to nameplate. Three-conductor No. 14 cable (with 90° C minimum insulation) is recommended for making electrical connections. Wiring is accomplished through the wiring box provided on the fixture. The box is provided with a size 3/4-in. NPT threaded conduit opening. Wiring methods must comply with NFPA 70 (The National Electrical Code), Article 501 for Class I, Division 2 Hazardous (Classified) Locations. To get inside the unit, open the door, loosen the (2) screws holding the reflector and remove the reflector. Verify the correct supply voltage and lamp wattage. Bulb not included.
Please Note: This fixture does not include bulb. Please see related items for replacement lamp.
|
|  |
