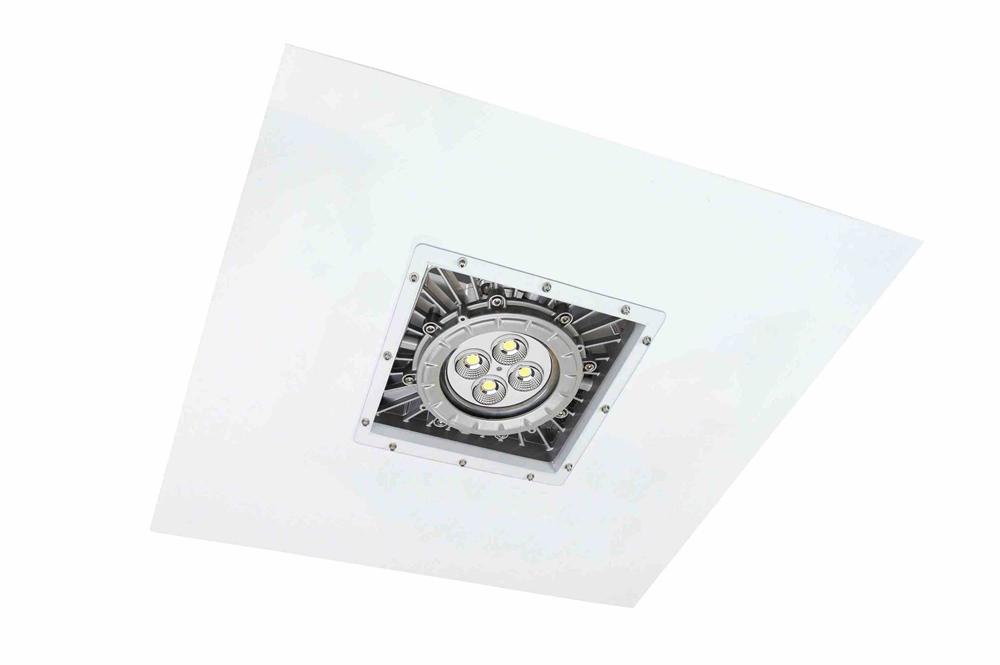

50 Watt Explosion Proof LED Light - 27" x 29.5" Lay-In Troffer - Class 1 Div 1 & 2 - Paint Booths

50 Watt Explosion Proof LED Light - 27" x 29.5" Lay-In Troffer - Class 1 Div 1 & 2 - Paint Booths

$3,694.00 CAD
$3,694.00 CAD
促销 售罄
结账时计算的运费。
Specifications / Additional Information
HALD-24-1X50LED-V3 HAZLOC Lay-In Panel Mount Light Ratings/Approvals
Listing: United States - Canada Listed for United States and Canada
Lamp Type: Cree LED Class I, Divisions 1 & 2, Groups C and D
Dimensions: 23 3/4"-L x 23 3/4"-W x 8"-D Class II, Divisions 1 & 2, Groups E,F,G
Flange Dimensions: 27"-L x 29.5"-W Class II, Divisions 1 & 2, Groups E,F,G
Weight: 40lbs Certified to UL 844 Ed. 13
Voltage: 100-277 Volts AC, 50/60Hz or 11-25 Volts AC/DC Certified to UL 1598
Total Watts: 50W Certified to C22.2 No. 137 Rev 2009
Lumens: 7,000 Certified to C22.2 No. 250.0
Luminous Efficacy: 140 Lm/W Certified to C22.2 No. 30-M-1986 Rev 2012
Lamp Life: 60,000+ Hours T5 Temperature Rating
Color Temp: 5000K, 4000K, 3000K Paint Spray Booth Approved
Color Rendering Index: >75 CRI IEC 60529 Tested
Beam Angle: 60° or 125° IP67 Rated Waterproof
Lighting Configuration: Flood Pattern LEL Approved
Power Efficiency: >95% Multiple Driver Banks
Power Factor: 0.992 80% Lumen Retention after 60,000 Hours
Ambient Operating Temp Range:-50°C to +65°C Factory Sealed Light Fixture
Operating Temp Rating: T5 Recessed Panel Mounting
Housing Material: Copper Free Cast Aluminum
Housing Finish: Powder Coated - White
Lens Material: 1/8" Polycarbonate
Mounting: Recessed Panel Mounting
Wiring: 10` 16/3 SOOW w/ Flying Leads
Wiring Hub: 3/4" NPT
LED Driver Specs
Input Voltage: 100-277 Volts AC
Input Current: 1.8A Max
Power Factor: >98% Toll Free: 1-800-369-6671
Efficiency: >88% Intl: 1-214-616-6180
Output Voltage: 54V Max
Output Current: 2.1A
' Product Overview '
Made in the USA The Larson Electronics HALD-24-1X50LED-V3 Hazardous Area LED Light Fixture is designed to provide operators with a powerful and energy efficient alternative to traditional hazardous location luminaries. This LED panel mount fixture is ETL listed Class I Divisions 1 & 2, Class II Divisions 1 & 2, and is approved for use within paint spray booths. Cree LED technology and compact design makes this lamp an excellent replacement upgrade option for paint booths and hazardous locations where flammable chemical/petrochemical vapors are present. ***PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO THIS HAZARDOUS LOCATION LIGHT FIXTURE*** The HALD-24-1X50LED-V3 Explosion Proof fixture is a 2x2 Class I Division 1 & 2 hazardous location lay-in LED light fixture is ideal for use in paint spray booths and hazardous environments where space for lighting fixtures is limited. This fixture is T5 temperature rated and is a fully integrated LED unit. The LED assembly is protected by an aluminum framed, hinged, 3/16" thick polycarbonate door that provides direct front access to the internal components. The lamp housing is designed for recessed mounting, and is constructed of non-sparking aluminum coated with a powder coated white finish. This Class I Divisions 1 & 2, Class II Division 1 & 2 explosion proof light fixture provides 7,000 lumens of high quality light while drawing only 50 watts. The copper free aluminum alloy body is powder coated for added durability and an attractive aesthetic appearance. A special heat dissipating design in conjunction with LED technology helps this fixture to achieve an excellent 60,000 hour rated lifespan with 80% lumen retention. Light weight and a low profile make this unit an attractive alternative to larger and heavier older fixtures and requires less hardware to install.
Beam Angle of 125° or 60° are Available
125° Beam Angle 60° Beam Angle
The integrated LED assembly in this unit features multiple LED drivers which helps to increase the operational life of the fixture. With traditional LED lights, in the event an LED array or driver fails, the entire fixture no longer illuminates. TThis new series of LED lamps contains eight individual LED boards configured in a series of banks. Each bank contains two LED boards with an individual driver. In the event of a driver failure, only one bank of LEDs will be effected while the other banks will continue to operate. In the event that of an LED failure, the mating LED will continue to operate. Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current applied and emitting light. With LED lights, there is no warm up time or cool down time before re-striking and provide instant illumination when powered on, adding to the reliability of LED technology. By nature, LED light sources run significantly cooler than traditional lamps, reducing the chance of accidental burns and increased temperatures due to heat emissions. This solid state design of light emitting diodes provides a more reliable, stable, durable, and energy efficient light source over traditional lighting. This light is multi-voltage capable and can be operated with 100-277 VAC, 50/60Hz without any need for a special ballast. The aluminum body and LED lamp give this light excellent durability and resistance to vibration and impacts. The housing is specially designed to dissipate heat which increases the efficiency and lifespan of the LED luminaries. The LED lamp produces 7,000 lumens with a color temperature of 5000K, 4000K, or 3000K and a color rendering index of 75 which produces colors and details much more accurately than high pressure sodium or mercury vapor luminaries.
This fixture is designed for recessed mounting and requires a mounting hole to be made in booth panels capable of accommodating the fixture housing in order to provide the maximum amount of space in paint spray booth enclosures. Once mounted, this fixture`s door frame will extend 3/8" into the spray booth. Applications: Paint spray booths and enclosed spaces where flammable chemical/petrochemical vapors are present.
High Quality Features Superior LED Benefits
1. Low power consumption. 2. Fixture arrives assembled and lamped to reduce installation time and cost. 3. Instant on/off operation. 4. Fixture constructed of welded corrosion resistant copper free aluminum alloy. 5. 3/4" Wiring Hubs 6. Superior color rendering compared to HPS, LPS, MH. 7. Retains 80% lumen output after 60,000 operating hours. 8. Powder coated aluminum fixture body. 9. Low profile - Light weight 10. 7,000 Lumen output from only 50 watts 1. 60,000 hour lifespan. 2. Can SAVE 50% or more on energy. 3. Qualifies retrofit projects for financial incentives, including utility rebates, tax credits and energy loan programs. 4. Reduces energy use and prolongs life-spans of peripheral cooling units (A/C, refrigeration) 5. 100% recyclable. 6. No toxins-lead, mercury. 7. No UV light, infrared radiation or CO2 emissions. 8. Qualifies buildings for LED and other sustainable business certifications. 9. Bright, even light maintains consistent color over time. 10. Instant on/off - No flickering, delays or buzzing. 11. Very good color rendering. 12. Vibration/impact resistant. 13. Significantly cooler operation. 14. Less frequent outages, higher output improves workplace safety.
