HALD-48-1X50LED-V4 HAZLOC Lay-In Panel Mount Light | Ratings/Features |
Listing: United States - Canada | NRTL Listed for United States and Canada |
Lamp Type: Cree LED | Class I, Divisions 1 & 2, Groups C and D |
Dimensions: 47.875"-L x 23.875"-W x 8"-D | Class II, Divisions 1 & 2, Groups E,F,G |
Flange Dimensions: 47.875"-L x 23.875"-W | Class II, Divisions 1 & 2, Groups E,F,G |
Weight: 40 lb | NRTL Certified to UL 844 Ed. 13 |
Voltage: 100-277 Volts AC, 50/60 Hz or 11-25 Volts AC/DC | NRTL Certified to UL 1598 |
Total Watts: 50W | NRTL Certified to C22.2 No. 137 Rev 2009 |
Lumens: 7,000 | NRTL Certified to C22.2 No. 250.0 |
Luminous Efficacy: 140 Lm/W | NRTL Certified to C22.2 No. 30-M-1986 Rev 2012 |
Lamp Life: 60,000+ Hours | T5 Temperature Rating |
Color Temp: 5600K, 4500K, or 3000K | Paint Spray Booth Approved |
Color Rendering Index: >75 CRI | IEC 60529 Tested |
Beam Angle: 60° or 125° | IP67 Rated Waterproof |
Lighting Configuration: Flood Pattern | LEL Approved |
Power Efficiency: >95% | Multiple Driver Banks |
Power Factor: 0.99 | 80% Lumen Retention after 60,000 Hours |
Ambient Operating Temp Range: -50°C to +65°C | Factory Sealed Light Fixture |
Operating Temp Rating: T5 | Recessed Panel Mounting |
Housing Material: Copper Free Cast Aluminum | 3.5 kV Surge Protection (NTC Circuit) |
Housing Finish: Powder Coated - White | Recommended 15' to 40' Mounting Height |
Lens Material: Polycarbonate | Special Orders - Requirements |
Mounting: Recessed Panel Mounting in T-Bar Ceilings | |
Ceiling Compatibiliy: 2X4 Grid | |
Mounting Method: Back Mount Panel Lay-In / Drop-In | |
Wiring: 10' 16/3 SOOW w/ Flying Leads | |
Wiring Hub: 3/4" NPT |

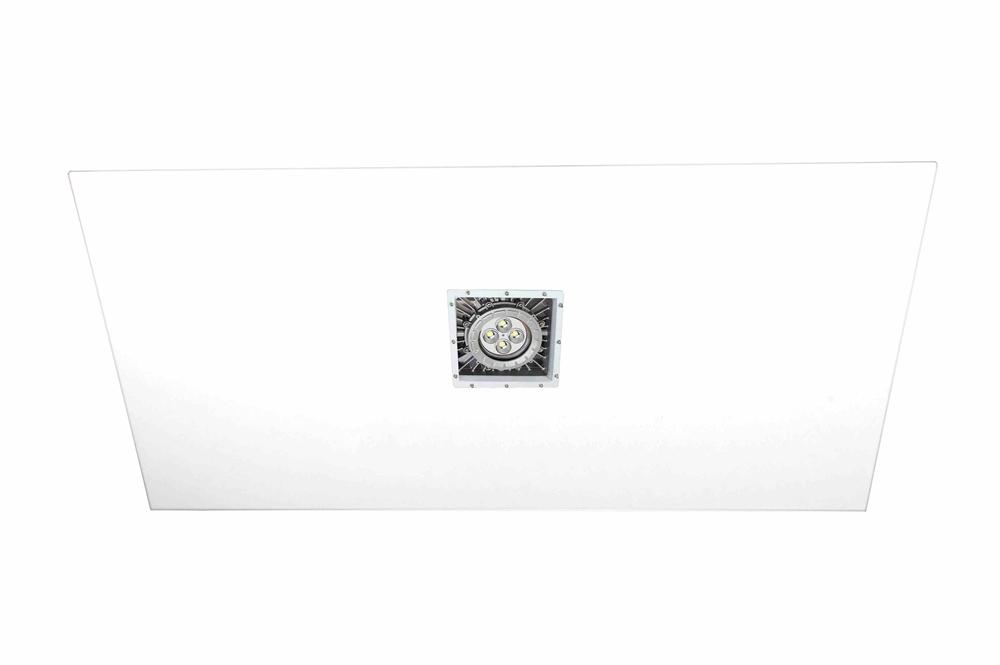

Made in the USA The HALD-48-1X50LED-V4 from Larson Electronics is a Hazardous Area LED Light Fixture that is designed to provide operators with a powerful and energy efficient alternative to traditional hazardous location luminaries. This LED panel mount fixture is NRTL listed Class I Divisions 1 & 2, Class II Divisions 1 & 2 and is approved for use within paint spray booths. Cree LED technology and compact design makes this lamp an excellent replacement upgrade option for paint booths and hazardous locations where flammable chemical/petrochemical vapors are present. ***PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO THIS HAZARDOUS LOCATION LIGHT FIXTURE*** The HALD-48-1X50LED-V4 Explosion Proof fixture is a 2x4 Class I Divisions 1 & 2 hazardous location lay-in LED light fixture is ideal for use in paint spray booths and hazardous environments where space for lighting fixtures is limited. This fixture is T5 temperature rated and is a fully integrated LED unit. The LED assembly is protected by an aluminum framed, 3/16" thick polycarbonate lens that provides direct front access to the internal components. The lamp housing is designed for recessed mounting in standard 2X4 T-Bar ceilings, and is constructed of non-sparking aluminum coated with a powder coated white finish. This Class I Divisions 1 & 2, Class II Divisions 1 & 2 explosion proof light fixture provides 7,000 lumens of high quality light while drawing only 50 watts. The copper free aluminum alloy body is powder coated for added durability and an attractive aesthetic appearance. A special heat dissipating design in conjunction with LED technology helps this fixture to achieve an excellent 60,000 hour rated lifespan with 80% lumen retention. Light weight and a low profile make this unit an attractive alternative to larger and heavier older fixtures and requires less hardware to install. LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life. LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps. This light is multi-voltage capable and can be operated with 100-277 V AC, 50/60 Hz without any need for a special ballast. The aluminum body and LED lamp give this light excellent durability and resistance to vibration and impacts. The housing is specially designed to dissipate heat which increases the efficiency and lifespan of the LED luminaries. The LED lamp produces 7,000 lumens with a color temperature of 5600K, 4500K, or 3000K and a color rendering index of 75 which produces colors and details much more accurately than high pressure sodium or mercury vapor luminaries. This fixture is designed for recessed mounting and requires a mounting hole to be made in booth panels capable of accommodating the fixture housing in order to provide the maximum amount of space in paint spray booth enclosures. Once mounted, this fixture's door frame will extend 3/8" into the spray booth. Applications: Paint spray booths and enclosed spaces where flammable chemical/petrochemical vapors are present. |
