Hazardous Area LED Light Fixture - 6 Lamp - C1D2 - Paint Spray Booth Rated - NO LAMPS
Hazardous Area LED Light Fixture - 6 Lamp - C1D2 - Paint Spray Booth Rated - NO LAMPS
HALD-48-6L-LED-NL LED Paint Booth Fixture | Approvals/Ratings |
Lamp Type: NO LAMPS | Class I Division 2, Groups A, B, C & D |
Fixture Dimensions: 19.50"W x 50.00"L x 2.25"D | Class II Division 2 Groups F,G |
Flange Dimensions: 23.00"W x 51.875"L (Extends 0.375" into Spray Booth) | IP20 Ingress Protection Rating |
Inset Dimensions: 19.50"W x 50.00"L | ETL Listed U.S. and Canada |
Minimum Hole Size: 20.75"W x 50.875"L | NRTL Certified to UL-1993 |
Cutoff Switch: 10 Watts @ 300 V AC (Max) Momentary Contact Switch | NRTL Certified to UL-1993 CLS |
Max Wattage: 180W Total (30W per lamp) | NRTL Certified to CAN/CSA C22.2 No 1993 |
Voltage: 100-277 Volts AC, 50/60Hz or 11-25 Volts AC/DC | |
Total Lumens: - | |
Lamp Life Expectancy: - | |
Luminous Efficacy: - | |
Weight: 45 lb | |
Color Temperature: - | |
Color Rendering Index: - | |
Beam Angle: 150° | |
Lighting Configuration: Flood Pattern | Special Orders - Requirements |
Power Efficiency: 90% | |
Power Factor: >0.95 | Toll Free: 1-800-369-6671 |
Ambient Temperature Rating: -40°C to +65°C | Intl: 1-214-616-6180 |
Mounting: Recessed Panel Mounting | |
Wiring Hub: 1/2" Threaded NPT Hub |
Made in the USA
The HALD-48-6L-LED-NL from Larson Electronics is a Hazardous Area LED Light Fixture that is designed to provide a thin fixture profile that allows the maximum use of available space. This LED fixture is U.S./Canada approved Class I Division 2, Groups A, B, C and D - Class II Division 2, Groups F and G and designed for paint spray booths and locations where flammable chemical/petrochemical vapors are present. The HALD-48-6L-LED-NL is offered in 100-277 Volts AC, 50/60 Hz or 11-25 Volts AC/DC voltage configurations and has a max wattage rating of 180W or 30W per lamp. The HALD-48-6L-LED-NL is designed to accept LED lamps. THIS FIXTURE IS NOT APPROPRIATE FOR SURFACE MOUNT APPLICATIONS.
*PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO THIS LIGHTING SYSTEM*

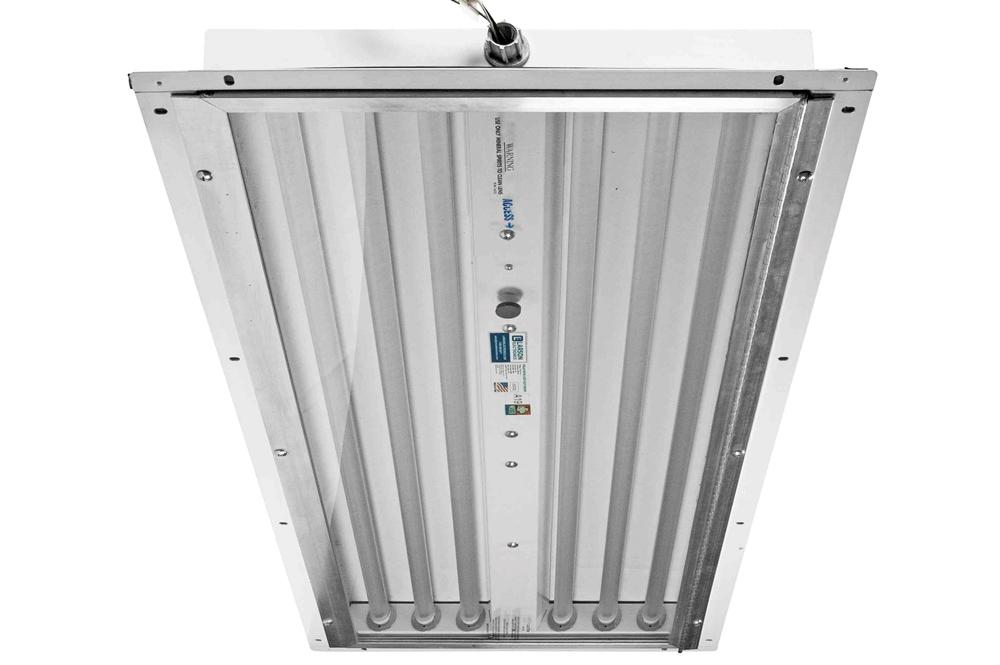

The HALD-48-6L-LED-NL Explosion Proof fixture is a 4 foot long, 6 lamp, Class I Division 2 hazardous area LED light and ideal for use in paint spray booths and hazardous locations where space for lighting fixtures is limited. This fixture is IP20 ingress protection rated, is designed to be equipped with LED lamps and features an integrated momentary paint spray system cutoff switch that is activated when this fixture's lamp door is opened. Installed lamps are protected by a steel framed, hinged, 3/16" thick glass door that provides direct front access to the two lamps.
PLEASE NOTE: The HALD-48-6L-LED-NL light fixture is sold without lamps and is not equipped with a ballast.
|
