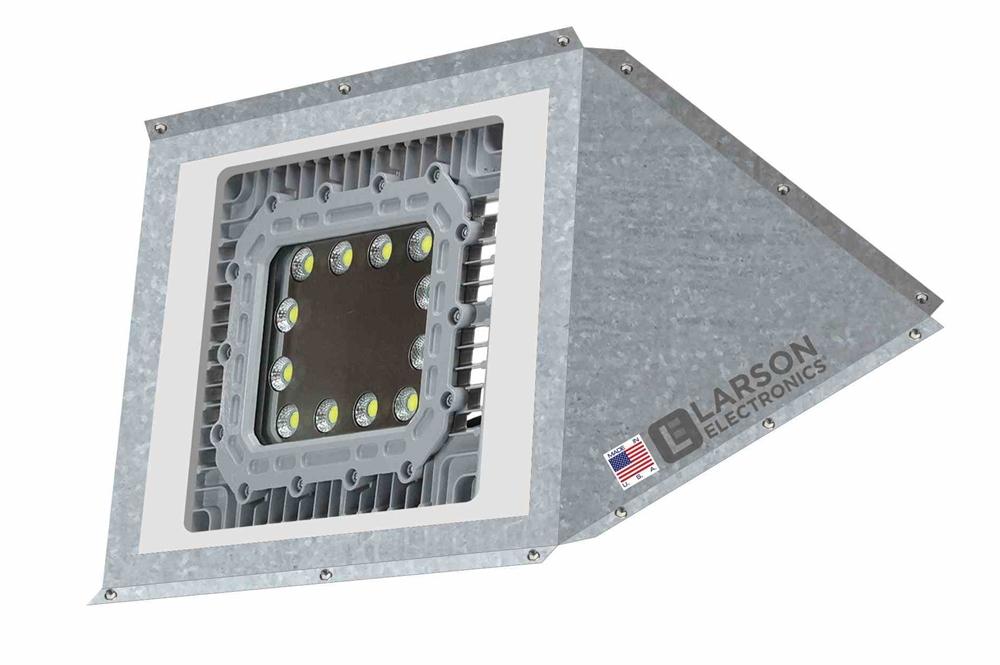

Low Profile Explosion Proof LED Light - Class I, II - Corner Mount - Paint Spray Booth Rated
Low Profile Explosion Proof LED Light - Class I, II - Corner Mount - Paint Spray Booth Rated
| HALD-CLS-1X150LED HAZLOC Corner Mount Light | Ratings/Features |
| Listing: NRTL Listed for United States and Canada | Class I, Divisions 1 & 2, Groups C and D |
| Lamp Technology: Cree LED | Class II, Divisions 1 & 2, Groups E,F,G |
| Dimensions: - | Certified to UL 844 Ed. 13 |
| Weight: 40 lbs | Certified to UL 1598 |
| Voltage: 100-277 Volts AC, 50/60Hz or 11-25 Volts AC/DC | Certified to C22.2 No. 137 Rev 2009 |
| Total Watts: 150W | Certified to C22.2 No. 250.0 |
| Lumens: 21,000 | Certified to C22.2 No. 30-M-1986 Rev 2012 |
| Luminous Efficacy: 140 Lm/W | T5 Temperature Rating |
| Lamp Life: 60,000+ Hours | Paint Spray Booth Approved |
| Color Temp: 5600K, 5000K, 4500K, 4000K, 3500K, 3000K, 2700K, or 6500K | IEC 60529 Tested |
| Color Rendering Index: >75 CRI | IP67 Rated Waterproof |
| Lamp Type: - | LEL Approved |
| Lamp Base: - | Multiple Driver Banks |
| Replacement Lamp: - | 80% Lumen Retention after 60,000 Hours |
| Beam Angle: 60°, 125°, or 140° | Factory Sealed Light Fixture |
| Lighting Configuration: Flood Pattern | 3.5kV Surge Protection (NTC Circuit) |
| Power Efficiency: >95% |  |
| Power Factor: 0.992 |  |
| Ambient Operating Temp Range:-50° C to +65°C |  |
| Operating Temp Rating: T5 |  |
| Housing Material: Copper Free Cast Aluminum | |
| Housing Finish: Powder Coated - White | |
| Lens Material: Polycarbonate | |
| Mounting: Wall-to-Ceiling Corner Mount | |
| Wiring: 10` 16/3 SOOW w/ Flying Leads | |
| Wiring Hub: 3/4" NPT |
| Made in the USA The Larson Electronics HALD-CLS-1X150LED Hazardous Area LED Light Fixture is designed to provide operators with a powerful and energy efficient alternative to traditional hazardous location luminaries. This LED fixture is NRTL listed Class I, Divisions 1 & 2 and Class II, Divisions 1 & 2 and approved for use within paint spray booths. Cree LED technology and compact design makes this lamp an excellent replacement upgrade option for paint booths and hazardous locations where flammable chemical/petrochemical vapors are present. ***PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO THIS HAZARDOUS LOCATION LIGHT FIXTURE*** The HALD-CLS-1X150LED is ideal for use in paint spray booths and hazardous environments where space for lighting fixtures is limited. Designed for wall-to-ceiling corner mount applications, this fixture is T5 temperature rated and is a fully integrated LED unit. The LED assembly is protected by an aluminum framed, 3/16" thick polycarbonate lens that provides direct front access to the internal components. This Class I, Division 1 & 2 and Class II, Division 1 & 2 explosion proof light fixture provides 21,000 lumens of high quality light while drawing only 150 watts. The copper free aluminum alloy body is powder coated for added durability and an attractive aesthetic appearance. A special heat dissipating design in conjunction with LED technology helps this fixture to achieve an excellent 60,000 hour rated lifespan with 80% lumen retention. Light weight and a low profile make this unit an attractive alternative to larger and heavier older fixtures and requires less hardware to install. The integrated LED assembly in this unit features multiple LED drivers which helps to increase the operational life of the fixture. With traditional LED lights, in the event an LED array or driver fails, the entire fixture no longer illuminates. This new series of LED lamps contains twenty-four individual LED boards configured in a series of banks. Each bank contains two LED boards with an individual driver. In the event of a driver failure, only one bank of LEDs will be effected while the other banks will continue to operate. In the event that of an LED failure, the mating LED will continue to operate. Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current applied and emitting light. With LED lights, there is no warm up time or cool down time before re-striking and provide instant illumination when powered on, adding to the reliability of LED technology. By nature, LED light sources run significantly cooler than traditional lamps, reducing the chance of accidental burns and increased temperatures due to heat emissions. This solid state design of light emitting diodes provides a more reliable, stable, durable, and energy efficient light source over traditional lighting. This light is multi-voltage capable and can be operated with 100-277V AC, 50/60Hz without any need for a special ballast. The aluminum body and LED lamp give this light excellent durability and resistance to vibration and impacts. The housing is specially designed to dissipate heat which increases the efficiency and lifespan of the LED luminaries. The LED lamp produces 21,000 lumens with a color temperature of 5000K, 4000K, or 3000K and a color rendering index of 75 which produces colors and details much more accurately than high pressure sodium or mercury vapor luminaries. Mounting: The HALD-CLS-1X150LED is compatible with wall-to-ceiling corner mounting installations. This mounting solution enables the angled lighting system to be installed in corners without a compatible angled ceiling. When properly mounted, the explosion proof light provides a 45-degree angle from the ground. Applications: Paint spray booths and enclosed spaces where flammable chemical/petrochemical vapors are present. |
