150W Dimmable Clean Room LED Light -2x4 Lay-In Troffer- C1D1 - C2D2 - ISO 14644/FS-209E Rated - 90 Minute Battery Backup

LARSON ELECTRONICSSKU: PL3-HALD-EMG-48-1X150LED-V2-XDIMM
filler

Price:
Sale price$12,462.00

Description

Specifications / Additional Information
HALD-EMG-48-1X150LED-V2-XDIMM Dimmable HAZLOC Lay-In Panel Mount Light Ratings/Approvals
Listing: United States - Canada NRTL Listed for United States and Canada
Lamp Type: Cree LED Class I Divisions 1 & 2, Groups C and D
Dimensions: 48"L x 24"W x 5.38"D Class II Divisions 1 & 2, Groups E,F,G
Flange Dimensions: 48"L x 24"W Class III Divisions 1 & 2
Weight: 55 lbs Certified to UL 844 Ed. 13
Voltage: 120 V or 277 V NRTL Certified to UL 1598
Total Watts: 150 W NRTL Certified to C22.2 No. 137 Rev 2009
Total Lumens: 17,500 NRTL Certified to C22.2 No. 250.0
Luminous Efficacy: 116.67 Lm/W NRTL Certified to C22.2 No. 30-M-1986 Rev 2012
Lamp Life: 60,000+ Hours T5 Temperature Rating
Battery Backup Runtime: 90 Minutes Emergency Battery Backup
Color Temp: 5000K, 4500K or 3000K Paint Spray Booth Approved
Color Rendering Index: >75 CRI IEC 60529 Tested
Beam Angle: 60° or 125° IP67 Rated Waterproof
Lighting Configuration: Flood Pattern LEL Approved
Power Efficiency: >95% Multiple Driver Banks
Mounting: Recessed Panel Mounting 80% Lumen Retention after 60,000 Hours
Power Factor: 0.992 Factory Sealed Light Fixture
Ambient Operating Temp Range: -50°C to +65°C 0-10V Dimmable via External Driver
Operating Temp Rating: T5 FS-209E Clean Room Rated
Housing Material: Steel ISO 14644 Clean Room Rated
Housing Finish: Powder Coated - White
Lens Material: Polycarbonate Special Orders - Requirements
Mounting: Recessed Panel Mounting
Wiring Hub: 3/4" NPT



' Product Overview '

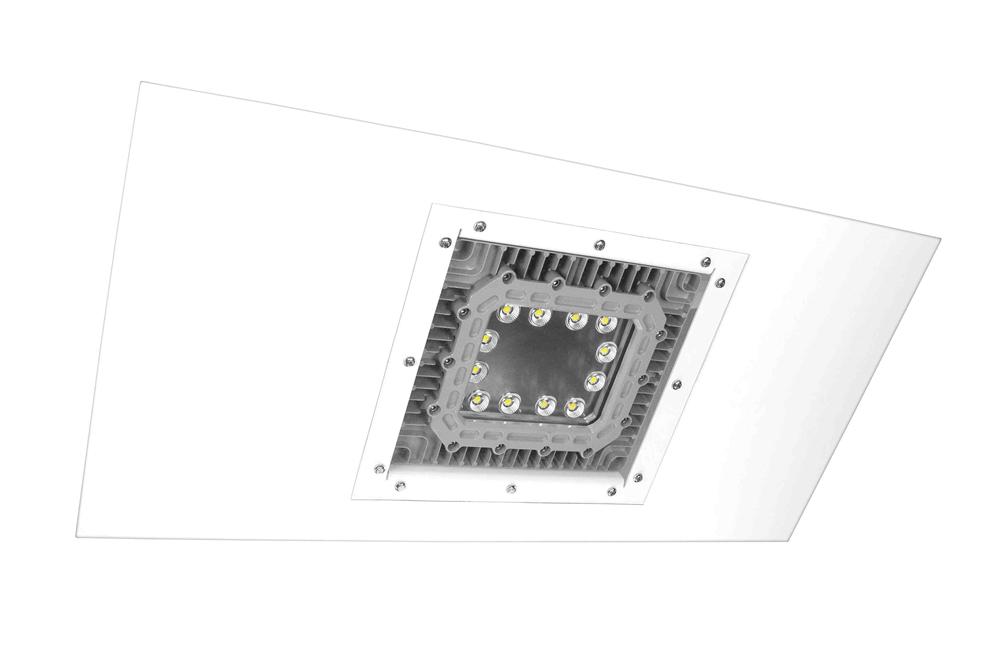

Made in the USA The HALD-EMG-48-1X150LED-V2-XDIMM from Larson Electronics is a Dimmable LED Hazardous Area LED Light Fixture that is designed to provide operators with a powerful and energy efficient alternative to traditional hazardous location luminaries. This LED panel mount fixture is ETL listed Class I Division 2, Class II Divisions 1 & 2, and is approved for use within clean rooms and other areas that require little or no contamination within the work environment. The HALD-EMG-48-1X150LED-V2-XDIMM is sealed and rated for FS 209E and ISO 14644 cleanroom applications. Cree LED technology and compact design makes this lamp an excellent replacement upgrade option for clean rooms where flammable chemical/petrochemical vapors are present and little to no contamination is required. The HALD-EMG-48-1X150LED-V2-XDIMM includes a sealed lead acid battery for emergency situations. ***PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO THIS HAZARDOUS LOCATION LIGHT FIXTURE*** The HALD-EMG-48-1X150LED-V2-XDIMM Explosion Proof Clean Room rated LED fixture is a 2x4 Class I Division 2 hazardous location lay-in LED light fixture that is equipped with an added battery backup providing 90 minutes of emergency runtime and is ideal for use in clean rooms and other areas that require little to no contamination and where space for lighting fixtures is limited. This fixture is T5 temperature rated and is a fully integrated LED unit. The LED assembly is protected by an aluminum framed, hinged, 3/16" thick polycarbonate door that provides direct front access to the internal components. The lamp housing is designed for recessed mounting, and is constructed of non-sparking aluminum coated with a powder coated white finish. This LED light fixture features 0-10V dimming capabilities via a remote mount external driver. This gives operators the ability to manually adjust the brightness of the LED lamp quickly and easily. The 0-10V dimming allows for adjustments to fit the brightness needs of any lighting situation. A 0-10V dimmable light works through the use of a DC control signal that ranges between zero and ten volts. The basic idea is that at 10 volts of input the light is at its brightest level with 0 volts being the lowest possible dimness setting. The smooth, continuous and flicker-free dimming of a 0-10V dimmable LED light is ideal for a wide range of different lighting applications. *PLEASE NOTE THAT THE EXTERNAL DIMMING DRIVER INCLUDED WITH THIS FIXTURE MUST BE MOUNTED OUTSIDE THE HAZARDOUS AREA* Larson Electronics does offer class rated dimmable power supplies for units that must be mounted within a hazardous location. Contact us today at 800-369-6671 or message for more information on these completely explosion proof units. This Class I Division 2, Class II Division 1 & 2 explosion proof light fixture provides 17,500 of high quality light while drawing only 150 watts. The copper free aluminum alloy body is powder coated for added durability and an attractive aesthetic appearance. Special heat dissipating design in conjunction with LED technology helps this fixture to achieve an excellent 60,000 hour rated lifespan with 80% lumen retention. Light weight and a low profile make this unit an attractive alternative to larger and heavier older fixtures and requires less hardware to install. The integrated LED assembly in this unit features multiple LED drivers which helps to increase the operational life of the fixture. With traditional LED lights, in the event an LED array or driver fails, the entire fixture no longer illuminates. This new series of LED lamps contains twenty-four individual LED boards configured in a series of banks. Each bank contains two LED boards with an individual driver. In the event of a driver failure, only one bank of LEDs will be effected while the other banks will continue to operate. In the event that of an LED failure, the mating LED will continue to operate. LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life. LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps. Voltage: The HALD-EMG-48-1X150LED-V2-XDIMM is available in either a 120 V configuration or a 277 V configuration. Please make your selection when ordering. *Note: thi LED light fixture can also be made in a 220 V model or a 240 V model at an additional cost. Please contact Larson Electronicsat 800-369-6671 or for more information.
Click Photos to Enlarge
60° Beam Angle 125° Beam Angle 140° Beam Angle
Beam Angles: When used as a portable lighting solution, the varying beam angles are each individually ideal for several environments. The 60° beam provides the most intense beam of the three options. It is perfect for narrow, confined spaces and is ideally suited for tank cleaning purposes. It offers focused light to provide ample illumination to tight work spaces and other environments. The 125° beam offers a more diffused source of light that is also less intense in brightness. It is a great general area work light and performs well when used for outdoor illumination. The 140° beam offers a very wide lighting pattern and is ideal for situations where lighting distance is not a concern, but illumination of a wider area and even light distribution is. The 140° beam is great for situations that call for working in close proximity to lights such as in a paint booth. Mounting: This fixture is designed for recessed mounting and requires a mounting hole to be made in booth panels capable of accommodating the fixture housing in order to provide the maximum amount of space in clean room areas. Once mounted, this fixture`s door frame will extend 3/8" into the clean room. Applications: ISO 14644 and FS-209E clean room applications that require little to no contamination including but not limited to medical applications, pharmaceutical, laboratories and any other applications that require ample lighting with little to no contamination within the work area atmosphere.
