HALD-EMG-48-2L-T8 Hazardous Location Emergency Light Ratings/Features
Listing: NRTL Listed for United States and Canada Class I, Division 2, Groups A, B, C, D
Lamp Technology: Fluorescent Class II, Division 2 Groups F,G
Lamp Qty: (2) T3C Rated
Dimensions: L-50" x D-2 1/4"
Weight: -
Voltage: 120-277 Volts 50/60 Hz
Total Watts: 64 Watts
Single-lamp Watts: 32 Watts
Total Lumens: 5,900
Single-lamp Lumens: 2,950
Luminous Efficacy: 92 Lm/W
Light Expectancy: -
Color Temperature: 4100K
CRI: -
Beam Angle: -
Light Configuration: Flood
Emergency Runtime: Up to 90 mins
Magnetic Switch: 10 watts @ 300V AC Max
Ambient Operating Temperature: -
Temperature Rating: T3C
Material: Steel
Mount: Recessed Mount
' Product Overview '

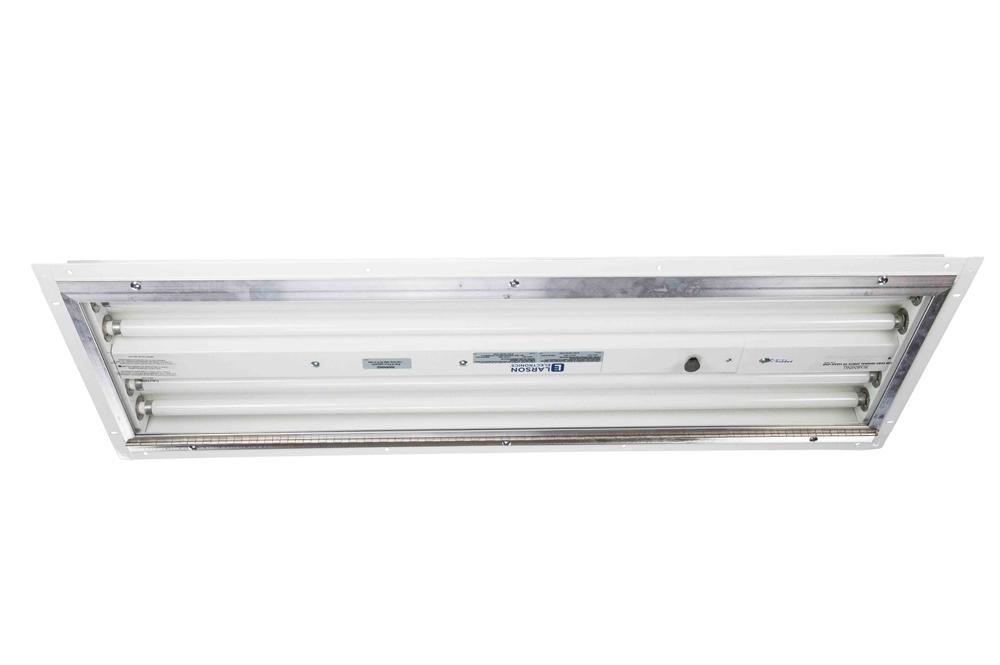

The Larson Electronics HALD-EMG-48-2L-T8 Hazardous Area Fluorescent Light Fixture is designed to provide a thin fixture profile that allows the maximum use of available space and is equipped with an added battery backup providing 90 minutes of emergency runtime. This fluorescent fixture is U.S./Canada approved Class 1 Division 2, Groups A, B, C and D - Class 2 Division 2, Groups F and G and designed for paint spray booths and locations where flammable chemical/petrochemical vapors are present. THIS FIXTURE IS NOT APPROPRIATE FOR SURFACE MOUNT APPLICATIONS. ***PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO THIS HAZARDOUS LOCATION LIGHT FIXTURE*** The HALD-EMG-48-2L-T8 Explosion Proof fixture is a 4 foot long, 2 lamp, Class I Division 2 hazardous area fluorescent light and ideal for use in paint spray booths and hazardous locations where space for lighting fixtures is limited. This fixture is T3C temperature rated, comes standard with T8 bulbs and features an integrated magnetic paint spray system cutoff switch that is activated when this fixture`s lamp door is opened. The lamps are protected by a steel framed, hinged, 3/16" thick glass door that provides direct front access to the two lamps. The lamp housing is only 2 and 1/4 inches thick, designed for recessed mounting, constructed of 20 gauge steel and coated with a baked on white enamel finish. This fixture is multi-voltage capable and is approved for use paint spray booths. The HALD-EMG-48-2L-T8 provides operators in hazardous locations with a reliable and durable, low profile lighting solution that provides added safety through the inclusion of an integral paint spray cutoff switch that shuts down paint spray systems when the fixture is opened. This explosion proof emergency light will run the standard 90 minutes after power is lost. The light recharges the battery once electrical power is restored. The battery backup unit includes a switched leg for turning the light fixture on/off without kicking the unit into emergency mode. NOTE: The integral magnetic cutoff switch included with this fixture is activated when the lamp door is opened. This switch is not intended to directly control light operation and requires the addition of a separate solid state relay which is then used to control actual system operation. The cutoff switch acts only as an activator for an external relay and is rated for 10 watts at a maximum of 300V AC. Overloading the switch through improper connection will result in switch failure. It is recommended that a certified electrician make any installations and reviews of relay connections intended to take advantage of this light's cutoff switch. The HALD-EMG-48-2L-T8 has an electronic multi-voltage ballast and works with 120 Volt 60 HZ, 220 Volt 50 HZ, 240 Volt 60 HZ and 277 Volts 60 HZ. Mounting: This fixture is designed for recessed mounting and requires a mounting hole to be made in booth panels capable of accommodating the fixture housing in order to provide the maximum amount of space in paint spray booth enclosures. Once mounted, this fixture`s glass door frame will extend 3/8” into the spray booth. Applications: Paint spray booths and enclosed spaces where flammable chemical/petrochemical vapors are present.
