Class 1 Division 2 Fluorescent Light for Corrosion Resistant Requirements (Saltwater) - Low Voltage
Class 1 Division 2 Fluorescent Light for Corrosion Resistant Requirements (Saltwater) - Low Voltage
| HALP-48-2L-LV Hazardous Area | U.L. Ratings |
| UL Listing: United States - Canada | Class I Division 2, Groups A, B, C, D |
| Dimensions: W-8.25 " L-52 " H-7" | Class II, Division 2, Groups F, G |
| Weight: 8 Lbs | UL 844 |
| Total Watts: 64 watts | UL 1598A Marine Type (Salt water) |
| Voltage: 12/24VDC | California Title 24 Compliant |
| Lamp Life Expectancy: STD-F32-T8/841 Bulbs 24,000 Hours | Meets US Coast Guard specifications |
| Efficiency: STD-F32-T8/841 Bulbs 92 Lumens per Watt | |
| Operating Temp Range: T4A Rated -30 C to 70 C | |
| Total Lumens: STD-F32-T8/841 Bulbs 5,900 | |
| Color Temp: 4100K- | |
| Mounting: Flange type stainless steel | |
| Wiring Hub: 1/2" or 3/4" threaded | Toll Free: 1-800-369-6671 |
| Minimum Operating Temp: -30 C | Intl: 1-214-616-6180 |
| Maximum Case Temp: 90 C | Fax: 1-903-498-3364 |
| U.L Approval: | E-mail: |

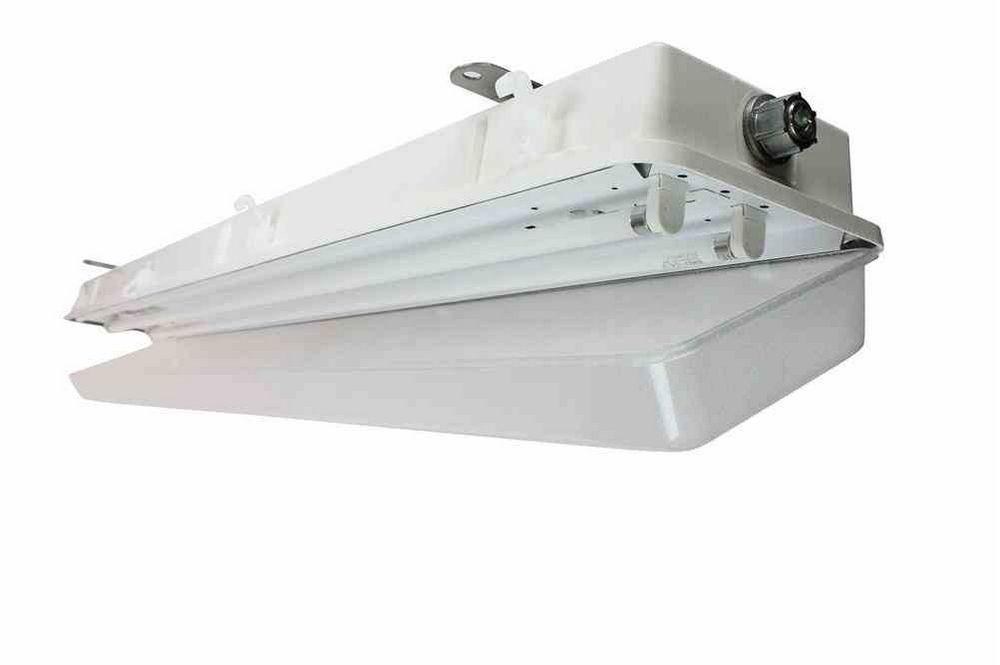

| Made in the USA The Larson Electronics HALP-48-2L-LV 12/24 Volt DC Hazardous Area Fluorescent Light Fixture is U.S./Canada UL Listed Class 1 Division 2 Groups A, B, C and D - UL 1598A listed, has a T4A temperature rating, and is specifically designed to handle the rigors of wet and corrosive marine environments. The HALP-48-2L-LV hazardous area fluorescent light fixture is designed for use in wet areas and saltwater-marine environments where corrosion resistance is critical to equipment longevity and safety. This Class 1 Division 2 rated fixture is constructed of non-corrosive materials including a polyester housing reinforced with glass fiber, a poured in gasket for reliable sealing and an impact resistant acrylic diffuser. Corrosion resistant stainless steel latches secure the lamp cover to the housing and provide a firm lock against the poured in seal to prevent drips and water intrusion. This fixture operates on 12-24 volts and is UL 844 rated and Class 1 Division 2, Groups A, B, C, D approved. The HALP-48-2L-LV also carries a UL 1598A outdoor marine rating and meets US Coast Guard specifications. The HALP-48-2L-LV provides operators in hazardous locations with a reliable and corrosion resistent low voltage lighting solution for open areas where flammable chemicals and vapors may occasionally be present. | ||||
|
||||
The HALP-48-2L-LV fixture is a 4 foot long, 2 lamp, UL listed Class 1 Division 2 Groups A, B, C and D hazardous area fluorescent light and a good choice for use in applications requiring a low voltage source of illumination. This fixture is T4C temperature rated, comes standard with F32-T8 bulbs, and is designed to operate on 12 or 24 volts DC only.
NOTE ON LAMPS: All hazardous location lights are shipped with bulbs. This fixture comes equipped with F32-T8/841 32 Watt lamps producing 2950 lumens per bulb, 24,000 hours of service life and a 4100 Kelvin color. The HAL-48-2L-LV has an electronic ballast and only works with 12 or 24 volt DC lamps. Please specify your desired voltage option from the drop down menu below when ordering.
Standard Flange Brackets: Flange type stainless steel mounts attached at each end of the fixture enables it to be simply secured to any surface. The mounts provide some shock absorbency protection while enabling the user to simply mount the fixture with the through-hole taps that protrude on each side of the fixture. The mounting holes are 36 9/16 inches on center apart along the top of this hazardous location light. The mounting holes are 7 inches on center across the top of the light.
Suggested Applications: The HALP-48-2L-LV is designed for marine, wet, damp locations where corrosion resistant fluorescent lights are required. This includes petrochemical facilities, lubrication pits, oil drilling rigs, crew quarters, solvent/cleaning areas, water treatment areas, processing plants and marine loading docks.
|
