Class 1 Division 2 Emergency/Failsafe Fluorescent Light - Three T5HO Lamps - 2X Inputs and Outputs
Class 1 Division 2 Emergency/Failsafe Fluorescent Light - Three T5HO Lamps - 2X Inputs and Outputs
| HALP-EMG-48-3L-2XH-T5HO Hazardous Area | U.L. Ratings |
| UL Listing: United States - Canada | Class I Division 2, Groups A, B, C, D |
| Lamp Type: LED | Class II, Division 2, Groups F, G |
| Dimensions: W-8.25 " L-52 " H-7" | UL 844 |
| Weight: 8 Lbs | UL 924 - Failsafe battery backup |
| Voltage:120-277VAC | UL 1598A Marine Type (Salt water) |
| Low Voltage Optional: 9-32VDC | Meets USCG Specs |
| Total Watts: 162 watts | T4 Temperature Rated |
| Total Lumens STD-T5-HO Bulbs: 15,000 | Switch Leg for Powering Light On/Off |
| Luminous Efficacy STD-T5-HO Bulbs: 92 Lm/W | UL Listed for Canada |
| Lamp Life Expectancy STD-T5-HO Bulbs: 20,000 Hours | Meets US Coast Guard specifications |
| Color Temp: 5600K- CRI-75 | |
| Efficiency: 98 Lumens per Watt | |
| Ambient Operating Temp Range: -30° C to +70° C | |
| Operating Temp Range: T4C Rated | |
| Battery Backup: 90 Minute Runtime | Toll Free: 1-800-369-6671 |
| Mounting: (2) Flange Type Aluminum Brackets | Intl: 1-214-616-6180 |
| Wiring Hub:(2) 1/2" or 3/4" Threaded Hubs Per End | Fax: 1-903-498-3364 |
| U.L Approval:  | E-mail: |

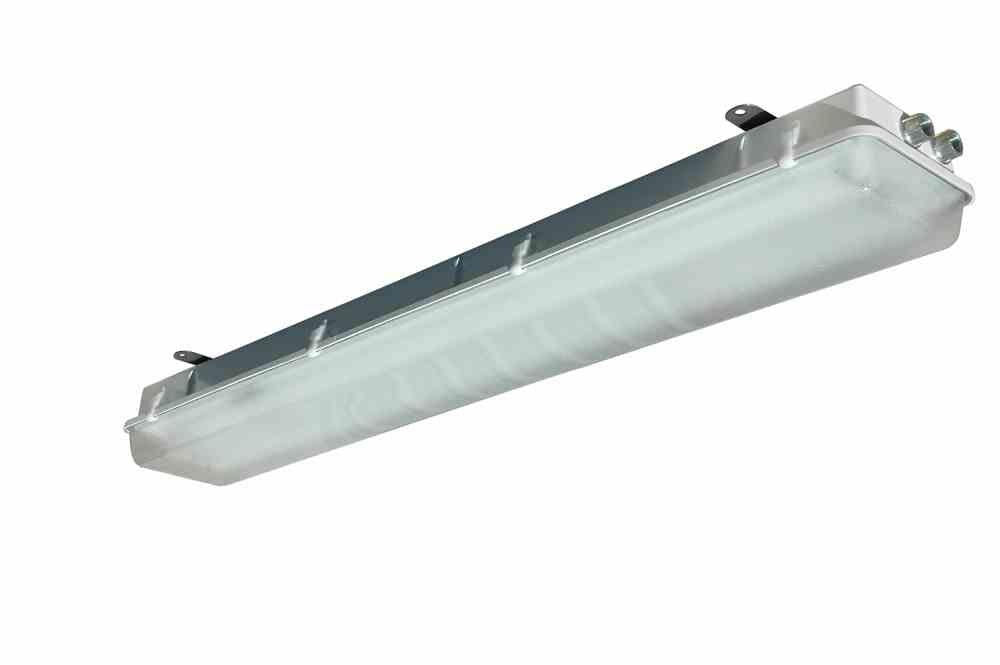

| Made in the USA The Larson Electronics HALP-EMG-48-3L-2XH-T5HO Hazardous Area Fluorescent Light Fixture is U.S./Canada UL Listed Class 1 Division 2 Groups A, B, C and D, Class 2 Divisions 1 & 2 Groups E, F, and G, and UL 1598A listed, has a T4C temperature rating and is specifically designed to handle the rigors of wet and corrosive marine environments. The HALP-EMG-48-3L-2XH-T5HO hazardous area fluorescent light fixture is designed for use in wet areas and saltwater-marine environments where corrosion resistance is critical to equipment longevity and safety. This Class 1 Division 2 and Class 2 Divisions 1 and 2 rated fixture is constructed of non-corrosive materials including a polyester housing reinforced with glass fiber, a poured in gasket for reliable sealing and an impact resistant acrylic diffuser. Corrosion resistant plastic latches secure the lamp cover to the housing and provide a firm lock against the poured in seal to prevent drips and water intrusion. This fluorescent light works, mounts and is wired like our HALP-48-3L-2XH-T5HO explosion proof fluorescent light fixtures. The main difference is that we add a battery backup unit that adds emergency light functionality to the fixture. This hazardous area emergency light will run the standard UL suggested 90 minutes after power is lost. The light recharges the battery once electrical power is restored. Standard configuration includes a single emergency ballast that will run a single lamp at 900 lumens for 90 minutes. The battery backup unit includes a switched leg for turning the light fixture on/off without kicking the unit into emergency mode. This fixture is UL 844 rated and Class 1 Division II, Groups A, B, C, D and Class 2 Divisions I and II, Groups E, F, and G approved. The HALP-EMG-48-3L-T5HO-2XH also carries a UL 1598A outdoor marine rating and meets US Coast Guard specifications. | ||||
|
||||
NOTE ON LAMPS: This fixture comes equipped with F54-T5/850/HO – 54 Watt lamps producing 5,000 lumens per bulb, a 5000 Kelvin color and a 20,000 hour rated service life.
Standard Flange Brackets: Flange type stainless steel mounts attached at each end of the fixture enables it to be simply secured to any surface. The mounts provide some shock absorbency protection while enabling the user to simply mount the fixture with the through-hole taps that protrude on each side of the fixture. The mounting holes are 36 9/16 inches on center apart along the top of this hazardous location light. The mounting holes are 7 inches on center across the top of the light.
Suggested Applications: The HALP-EMG-48-3L-2XH-T5HO is designed for marine wet and damp locations, where corrosion resistant fluorescent lights are required. This includes petrochemical facilities, lubrication pits, oil drilling rigs, crew quarters, solvent/cleaning areas, water treatment areas, processing plants and marine loading docks.
|
