347V Hazardous Area Fluorescent Light - Class 1 Div 2 Groups A, B, C and D and Class 2 Div 2 F,G- 4'
347V Hazardous Area Fluorescent Light - Class 1 Div 2 Groups A, B, C and D and Class 2 Div 2 F,G- 4'
| HAL-48-4L-347V Hazardous Area Fluorescent Light Fixture | Ratings |
| NRTL Listed for United States & Canada | Class 1 Division 2, Groups A, B, C, D |
| Dimensions: W-15" L-49 3/4 " H-6 1/8 " | Class 2 Division 2, Groups F,G |
| Weight: 33 Lbs | NRTL Certified to UL 595 Outdoor Marine Type (Saltwater) |
| Total Watts: 216 watts* | NRTL Certified to UL 1598A Marine Type |
| Voltage: 347V AC | California Title 24 Compliant |
| Total Lumens: STD-T5-HO Bulbs 20,000 | |
| Lamp Life Expectancy: STD-T5-HO Bulbs 20,000 Hours | |
| Efficiency: STD-T5-HO Bulbs 92 Lumens per Watt | |
| Operating Temp Range: T4A Rated | |
| Beam Angle: N/A | Toll Free: 1-800-369-6671 |
| Color Temp: 5000- F54-T5/850/HO Bulbs | Intl: 1-214-616-6180 |
| Mounting: Bracket Standard - Pendant/Cable Mount Optional | |
| Wiring Hub: 1/2 inch threaded |
Made in the USA

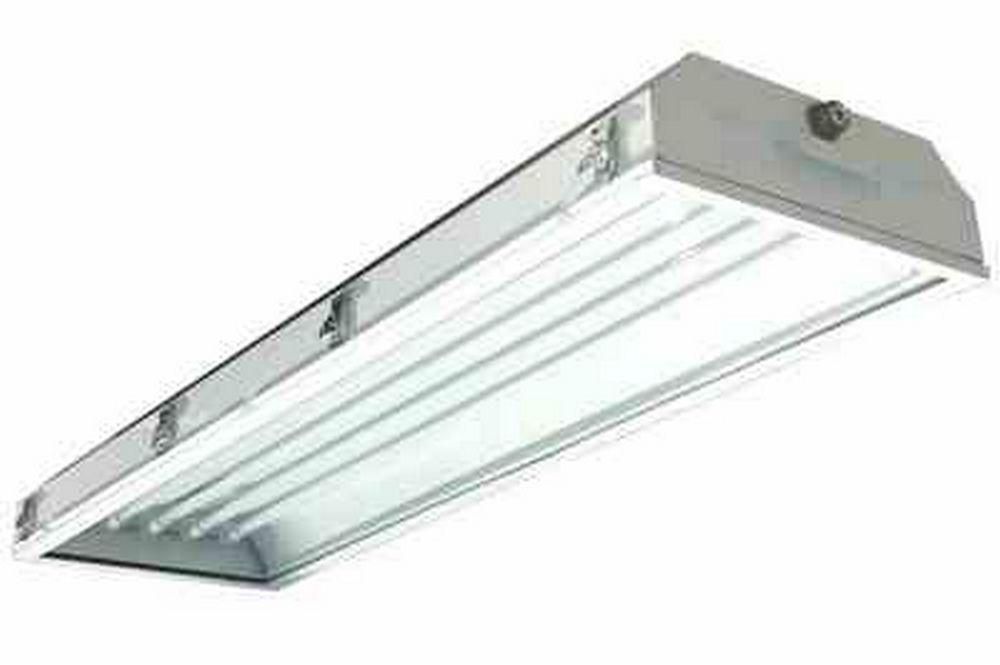

The Larson Electronics HAL-48-4L-347V Hazardous Area Fluorescent Light Fixture is NRTL Listed for United States and Canada rated for Class 1 Division 2 Groups A, B, C and D, has a T4A temperature rating and ideal for open air hazardous locations where flammable chemical/petrochemical vapors may be occasionally encountered.
***PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO THIS HAZARDOUS LOCATION LIGHT FIXTURE***
The HAL-48-4L-347V fixture is a 4 foot long, 4 lamp, Class 1 Division 2 Groups A, B, C and D hazardous area fluorescent light and a good choice for use in hazardous areas requiring maximum illumination. This fixture is T4A temperature rated, comes standard with F54-T5/HO bulbs, and is available with optional T12/HO and T8/841 bulbs. The lamps are protected by an aluminum framed hinged glass door secured with four turn latches and the fixture is constructed of copper free aluminum alloy. The lamp reflector is corrosion resistant heavy gauge aluminum and coated with a high gloss reflective finish.
This fixture is configured to operate on 347V AC for Northern Canada and is NRTL Certified to 1598A Marine Type approved for use marine environments. The HAL-48-4L provides operators in hazardous locations with a powerful, reliable and affordable lighting solution for open areas where flammable chemicals and vapors may occasionally be present.
NOTE ON LAMPS: This fixture comes equipped with included F54-T5/850/HO – 54 Watt lamps producing 5,000 lumens per bulb, a 5000 Kelvin color temperature and a 20,000 hour rated service life. We offer F48-T12/HO – 4050 lumens per bulb, 12,000 hours life, 4100 Kelvin color and F32-T8/841 – 2950 lumens per bulb, 24,000 hours life, 4100 Kelvin color tubes as lamp options for this fixture. The HALS-48-4L-347V has an electronic voltage ballast and works with 347V AC.
Standard Surface Mount Brackets: Each surface mounting bracket is attached on each end of the light and allows the operator to adjust the angle of the entire fixture. Pendant and cable mounting options are also available for operators who wish to mount these fixtures away from the ceiling surface. Each is illustrated above beginning left to right; Cable, Adjustable Surface Mount and Pendant.
Suggested Applications: Aircraft maintenance, Oil drilling rigs, Refineries, Solvent and cleaning areas, Chemical manufacturing, Waste treatment plants, Gas processing plants.
|
