Hazardous Area LED Light -Class 1 Div 2 Groups A, B, C, D and Class 2 Div 2 F,G - 347/480V AC

LARSON ELECTRONICSSKU: PL3-HALS-48-4L-LED-3480
filler

Price:
Sale price$2,832.00

Description

Specifications / Additional Information
HALS-48-4L-LED-3480 Hazardous Area Ratings
NRTL Listed for United States & Canada Class 1 Division 2, Groups A, B, C, D
Dimensions: W-15" L-49 3/4 " H-6 1/8 " Class 2 Division 2, Groups F,G
Weight: 33 lbs. NRTL Certified to UL 595 Outdoor Marine Type (Saltwater)
Total Watts: 112 watts (28 Watts per Lamp) NRTL Certified to UL 1598A Marine Type
Voltage: 347/480V 50/60 Hz California Title 24 Compliant
Total Lumens: 14,000 (3,500 per Lamp) Made in the USA
Lamp Life Expectancy: 50,000 Hours
Luminous Efficacy: 125 Lumens per Watt
Operating Temp Range: T4A Rated -30 C to 85 C
Beam Angle: N/A Toll Free: 1-800-369-6671
Color Temp: 5300K Intl: 1-214-616-6180
Mounting: Bracket Standard - Pendant/Cable Mount Optional Fax: 1-903-498-3364
Wiring Hub: 3/4 inch threaded
' Product Overview '

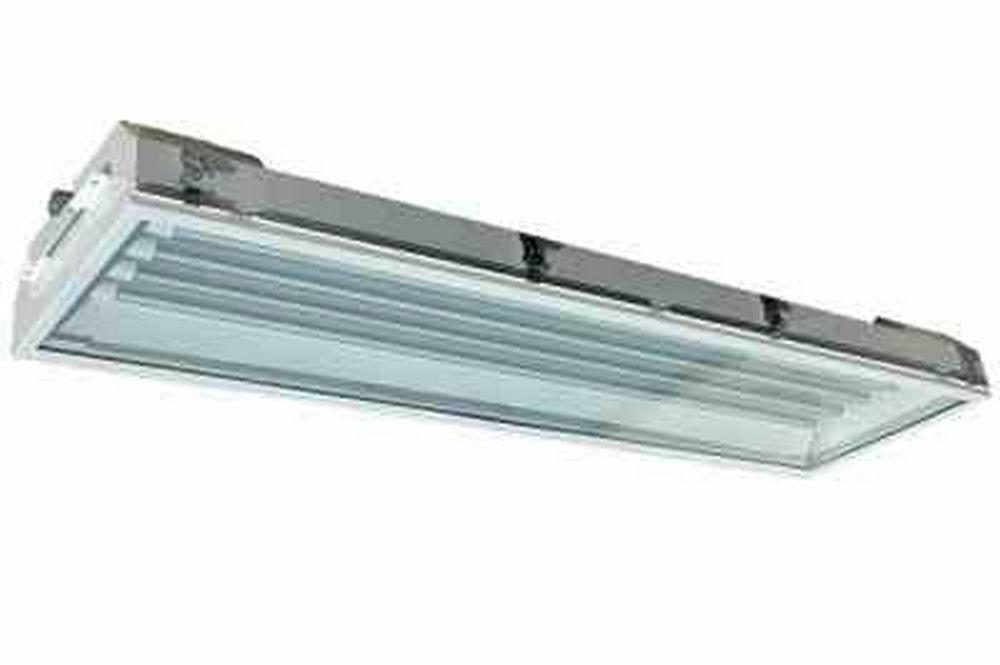

Made in Texas The Larson Electronics HALS-48-4L-LED-3480 Hazardous Area LED Light Fixture is Class 1 Division 2 Groups A, B, C and D, NRTL Certified to UL 1598A listed, has a T4A temperature rating and runs on voltages of 347/480V 50/60 Hz. This LED light fixture is ideal for open air hazardous locations where flammable chemical/petrochemical vapors may be occasionally encountered. ***PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO THIS HAZARDOUS LOCATION LIGHT FIXTURE*** The HALS-48-4L-LED-3480 light fixture is a 4 foot long, 4 lamp, Class 1 Division 2 Groups A, B, C and D hazardous area fluorescent style LED light and a good choice for use in hazardous areas requiring maximum illumination. This fixture is T4A temperature rated, comes standard with four 28 watt LED bulbs. The lamps are protected by an aluminum framed hinged glass door secured with four turn latches and the fixture is constructed of copper free aluminum alloy. The lamp reflector is corrosion resistant heavy gauge aluminum and coated with a high gloss reflective finish. This fixture is multi-voltage capable and is NRTL Certified to UL 595 and UL 1598A Marine Type approved for use marine environments. The HALS-48-4L-LED-3480 provides operators in hazardous locations with a powerful, reliable and affordable lighting solution for open areas where flammable chemicals and vapors may occasionally be present. We have eliminated the ballast normally associated with fluorescent fixtures which reduces overall weight, increases lamp life to an extreme 50,000 hours and helps this LED fixture maintain a T4A temperature rating. The solid state design of the included LED lamps give this fixture superior resistance to damage from vibrations and extremes in temperature as well as a lamp service life over twice that of standard T5-bulbs. The 28 watt LED lamps produce more illumination than standard T5 bulbs, but draw only 1/3rd of the current. The current generation of Larson Electronics LED T-series style bulbs produce 15% more light than our HALS-48-4L-LED fixture outfitted with two T5 bulbs. This fixture runs on voltages of 347/480V 50/60 Hz Our HALS-48-4L-LED-3480 LED light fixture is both ETL approved. Standard Surface Mount Brackets: Each surface mounting bracket is attached on each end of the light and allows the operator to adjust the angle of the entire fixture. Pendant and cable mounting options are also available for operators who wish to mount these fixtures away from the ceiling surface. Each is illustrated above beginning left to right; Cable, Adjustable Surface Mount and Pendant. Suggested Applications: Aircraft maintenance, Oil drilling rigs, Refineries, Solvent and cleaning areas, Gas processing plants, Chemical manufacturing, Waste treatment plants, Gas processing plants.
Made in USA Quality
1. Each unit dialectically tested. 2. Fixture arrives assembled and lamped to reduce installation time and cost. Adjustable mounting brackets enable the operator to choose any mounting angle for the fixture, where other models may only offer one or three choices. 3. Fixture constructed of extruded corrosion resistant copper free aluminum alloy. 4. Relamping done via 4 turn latches, which enable the operator to unlatch the hinged door and access the lamps. 5. Heavy gauge extruded aluminum reflectors with high gloss reflective finish. Resists dents and corrosion. 6. 3/4 inch, threaded access hole for wiring conduit. 7. Units can be wired end to end in series.
