4' 6 Lamp HAZLOC Lighting Fixture - T8 - Acrylic Lens - 10' Cord - EYM Seal Off - Class 1 Div 2

LARSON ELECTRONICSSKU: PL3-HALS-48-6L-ACR-T8-EYM-10C-EPP
filler

Price:
Sale price$3,462.00

Description

Specifications / Additional Information
HALS-48-6L-ACR-T8-EYM-10C-EPP Hazardous Location Lighting Approval/Ratings
NRTL Listed for United States & Canada United States & Canada
Dimensions: W-20 11/16" L-51 1/2 " H-5 5/16 " Class 1 Division 2, Groups A, B, C, D
Materials: Powder Coated 18 Gauge Steel Class 2 Division 2 Groups F,G
Total Watts: 192 watts Class III
Voltage: 120-277V AC IP65 Ingress Protection
Total Lumens: T8 Bulbs 17,700 Wet Area Suitable
Lamp Life Expectancy: T8 Bulbs 20,000 Hours NRTL Certified to UL 1598
Efficiency: T8 Bulbs 92 Lumens per Watt California Title 24 Compliant
Operating Temp Range: T3C-T4A Rated
Beam Angle: N/A
Color Temp: 4100K- T8 Bulbs
Housing Material: 18 Gauge Steel
Housing Finish: Powder Coated - White
Lens Material: Acrylic Toll Free: 1-800-369-6671
Mounting: Surface Bracket Standard - Pendant Optional Intl: 1-214-616-6180
Wiring: 10` 16/3 SOOW w/ EYM Seal Off & Cord Cap Fax: 1-903-498-3364
Cord Cap: 5-15, 5-20, or 6-20 - C1D1 Rated E-mail:
' Product Overview '

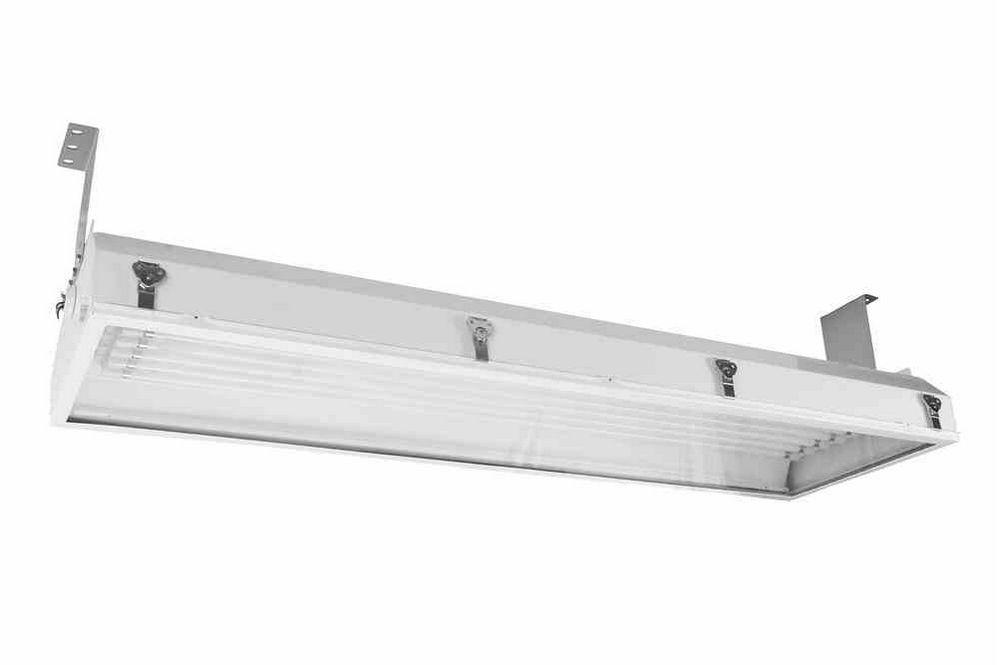

Made in the USA The Larson Electronics HALS-48-6L-ACR-T8-EYM-10C-EPP Hazardous Area Fluorescent Light Fixture is NRTL Listed for United States and Canada Class 1 Division 2 Groups A, B, C and D - NRTL Certified to UL 1598 listed and ideal for use in industrial hazardous location lighting where wet conditions and chemical/petrochemical vapors may be encountered. ***PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO THIS HAZARDOUS LOCATION LIGHT FIXTURE*** The HALS-48-6L-ACR-T8-EYM-10C-EPP fixture is a 4 foot long, 6 lamp, Class 1 Division 2 Groups A, B, C and D hazardous area fluorescent light and a good choice for use in industrial applications and wet areas. This fixture is T4A temperature rated and comes standard with six F32/T8/841 bulbs. The housing on this unit is constructed of powder coated 18 gauge steel for durability and contains a hinged reflector and ballast tray for easy and safe servicing. The lamps are held in place by spring loaded sockets and protected by a hinged glass door with a 3/16” acrylic lens which is secured with four turn latches. This fixture is multi-voltage capable and can be operated with voltages of 120-277 VAC. This fixture is IP65 rated water and dustproof approved for wet and marine locations. This fixture also features multiple 1/2 NPT wiring hubs with two located on top of the fixture and two more located at each end, allowing operators to through-wire multiple units in series or mount the unit with wire through conduit pendant mounts. The HALS-48-6L-ACR-T8-EYM-10C-EPP provides operators in hazardous locations with a very durable, reliable and affordable lighting solution for open areas where flammable chemicals and vapors may occasionally be present. Standard Surface Mount Brackets: Each surface mounting bracket is attached on each end of the light and allows the operator to adjust the angle of the entire fixture. Pendant mounts are available for operators who wish to mount these fixtures away from the ceiling surface.
Click Photos to Enlarge
5-15 Straight Blade Plug 5-20 Straight Blade Plug 6-20 Straight Blade Plug
Wiring & Plug: The HALS-48-6L-ACR-T8-EYM-10C-EPP explosion proof light fixture is NRTL Listed for United States and Canada for use in paint spray booths. This fixture is equipped with a seal off and 10` of 16/3 chemical and abrasion resistant SOOW cable terminated in an explosion proof cord cap. Plug options include explosion proof 5-15 15 amp straight blade plug, explosion proof 5-20 20 amp straight blade plug, or explosion proof 6-20 20 amp straight blade plug. Alternatively, we can provide flying leads with no plug for hard wire applications or for operators who prefer to wire in user provided cord caps. Please choose pigtail option below for flying leads with no plug. Suggested Applications: Aircraft maintenance, Oil drilling rigs, Refineries, Solvent and cleaning areas, Gas processing plants, Chemical manufacturing, Waste treatment plants, Gas processing plants.
Made in USA Quality Lamp Options
1. Each unit dialectically tested. 2. Fixture arrives assembled and lamped to reduce installation time and cost. Adjustable mounting brackets enable the operator to choose any mounting angle for the fixture, where other models may only offer one or three choices. 3. Fixture housing constructed of white powder coated 18 gauge steel. 4. Relamping done via 4 turn latches, which enable the operator to unlatch the hinged door and access the lamps. 5. Heavy gauge hinged reflector with high gloss reflective finish. Resists dents and corrosion. 6. Multiple 1/2 inch, threaded NPT access holes for through wiring. 7. Units can be wired end to end in series. F32-T8/841 – 32 watt, 2950 lumens per bulb, 24,000 hours life, 4100 Kelvin color (Suffix –T8)
