Hazardous Location Emergency Lighting - 4' 6 Lamp Fluorescent Fixture Class 1 Div 2 & Class 2 Div 2

LARSON ELECTRONICSSKU: PL3-HALS-EMG-48-6L-T5HO
filler

Price:
Sale price$2,830.00

Description

Specifications / Additional Information
HAL-48-6L-T5HO Hazardous Location Lighting Listed
NRTL Listed for United States & Canada Class 1 Division 2, Groups A, B, C, D
Dimensions: W-20 11/16" L-51 1/2 " H-5 5/16 " Class 2 Division 2 Groups F,G
Materials: Powder Coated 18 Gauge Steel Class III
Total Watts: 324 watts IP65
Voltage: 120, 277, 347 & 480 Wet Area Suitable
Total Lumens: STD-T5HO Bulbs 30,000 NRTL Certified to UL 1598
Lamp Life Expectancy: STD-T5HO Bulbs 20,000 Hours NRTL Certified to UL 844
Efficiency: STD-T5HO Bulbs 92 Lumens per Watt California Title 24 Compliant
Operating Temp Range: T3C-T4A Rated
Beam Angle: N/A
Color Temp: 5000K or 4100K - T5HO Bulbs
Mounting: Surface Bracket Standard - Pendant Optional
Wiring Hub: 1/2inch threaded 2-On Top 2-On Ends
Fax: 1-903-498-3364
  E-mail:
' Product Overview '

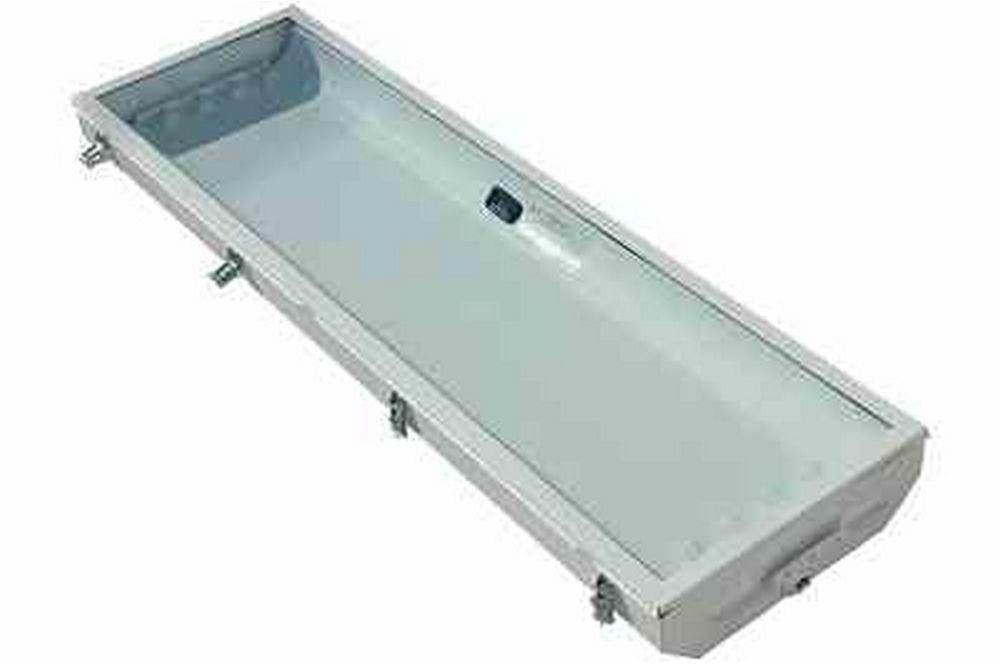

Made in the USA The Larson Electronics HALS-EMG-48-6L-T5HO Hazardous Area Fluorescent Light Fixture is NRTL Listed for United States and Canada Class 1 Division 2 Groups A, B, C and D - NRTL Certified to 1598 listed and ideal for use in industrial hazardous location lighting where wet conditions and chemical/petrochemical vapors may be encountered. ***PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO THIS HAZARDOUS LOCATION LIGHT FIXTURE*** The HALS-EMG-48-6L-T5HO fixture is a 4 foot long, 6 lamp, Class 1 Division 2 Groups A, B, C and D hazardous area fluorescent light with integrated emergency ballast that enables the light to deliver 900 lumens for 90 minutes when AC power is lost. This fixture is T4A temperature rated and comes standard with 6 F54/850-T5HO bulbs. The housing on this unit is constructed of powder coated 18 gauge steel for durability and contains a hinged reflector and ballast tray for easy and safe servicing. The lamps are held in place by spring loaded sockets and protected by a hinged glass door with a 3/16” tempered glass lens which is secured with four turn latches. This fixture is multi-voltage capable and can be operated with voltages ranging from 120 Volts to 277 Volts 50/60Hz. This fixture is IP65 rated water and dustproof and approved for wet and marine locations. This fixture also features multiple 1/2 NPT wiring hubs with two located on top of the fixture and two more located at each end, allowing operators to through-wire multiple units in series or mount the unit with wire through conduit pendant mounts. The HALS-48-6L-T5HO provides operators in hazardous locations with a very durable, reliable and affordable lighting solution for open areas where flammable chemicals and vapors may occasionally be present. Standard Surface Mount Brackets: Each surface mounting bracket is attached on each end of the light and allows the operator to adjust the angle of the entire fixture. Pendant mounts are available for operators who wish to mount these fixtures away from the ceiling surface. Suggested Applications: Aircraft maintenance, Oil drilling rigs, Refineries, Solvent and cleaning areas, Chemical manufacturing, Waste treatment plants, Gas processing plants.
Made in USA Quality Lamp Options
1. Each unit dialectically tested. 2. Fixture arrives assembled and lamped to reduce installation time and cost. Adjustable mounting brackets enable the operator to choose any mounting angle for the fixture, where other models may only offer one or three choices. 3. Fixture housing constructed of white powder coated 18 gauge steel. 4. Relamping done via 4 turn latches, which enable the operator to unlatch the hinged door and access the lamps. 5. Heavy gauge hinged reflector with high gloss reflective finish. Resists dents and corrosion. 6. Multiple 1/2 inch, threaded NPT access holes for through wiring.  7. Units can be wired end to end in series. F54T5HO – 54 watt, 5000 lumens per bulb, 20,000 hour life, 5000 Kelvin or 4100 Kelvin color (Suffix –T5HO)
