Class 1 Division 2 - Class 2 Division 1&2 - Explosion Proof Low Profile LED Light Fixture
Class 1 Division 2 - Class 2 Division 1&2 - Explosion Proof Low Profile LED Light Fixture
HBLP-15-LP-MLED Low Profile LED | U.L Ratings |
Lamp Type: LED | T4 Temperature Rating |
Dimensions Lamp Only: 15.40 " Diameter, 7.56" Thickness | Class 1, Division 2, Groups A, B, C, D |
Total Watts: 98W - 175W Equivalent Light Output | Class 2, Division 1, Groups E, F, G |
Lumens: 5800+ | Class 2, Division 2, Groups F, G |
Voltage: Multi- 120-277 Vac, 50/60 Hz; 347-480 Vac, 50/60 Hz | Class 3 |
Amps: 120 Vac @ .77 Amps 277 Vac @ .35 Amps | Class I, Division 2 / Class II, Division 1 |
Mounting: - 3/4€ NPT - 1€ NPT - Depndant on mounting type- | Type 3R, 4X / IP66, IP67 |
Weight: 22lbs | Wet Locations/Marine Outside(Salt Water) |
U.L. Listing: Explosion Proof | UL Standard: 1598, 1598A, 8750, 844 |
Temp Rating: T4 --40 °C to 55 °C | CSA Standard: C22.2 No. 250.0, C22.2 No. 137 |
Light Configuration: Flood | cETLus Listed |
Lamp Life: 50,000+ Hours | |
 | |
 | |
 |

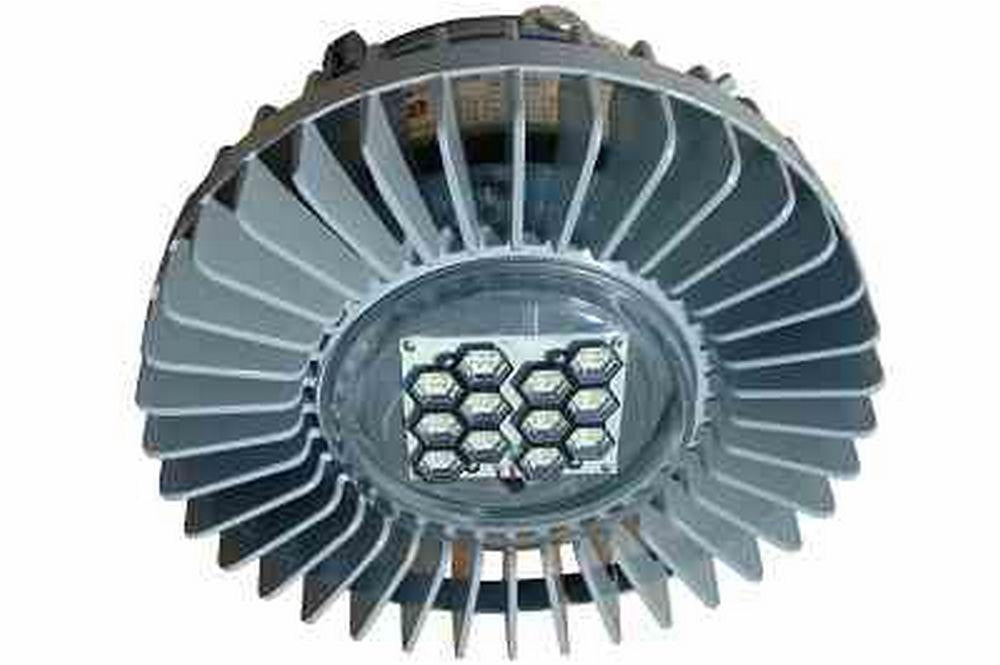

The Larson Electronics HBLP-15-LP-MLED low profile high bay light fixture provides operators with a powerful and energy efficient alternative to traditional hazardous location luminaries. LED technology and compact design makes this lamp an excellent replacement upgrade option for areas where mounting space is at a premium. Â This Class 1 Division2, Class 2 Division 1 & 2 explosion proof light fixture provides light output equivalent to a 175 watt incandescent lamp while drawing less then one amp at 120 volts. The copper free aluminum alloy body is epoxy coated for added durability and an attractive aesthetic appearance. This unit is specially designed for high durability and to efficiently dissipate heat for prolonged LED life and safer operation in hazardous locations. Light weight and a low profile make this unit an attractive alternative to larger and heavier older fixtures and requires less hardware to install. | ||||||||||
|
||||||||||
This light is multi-voltage capable and can be operated with 100-277 VAC, 50/60Hz without any need for a special ballast or wiring. This fixture can also be optionally configured to operate on 347-480 Vac, 50/60 Hz. The non sparking aluminum body and LED lamp design give this light excellent durability and resistance to vibration and impacts. The housing is specially designed to dissipate heat, which increases the efficiency and lifespan of the LED luminaries. This explosion proof LED fixture is constructed of copper free aluminum and all hardware is stainless steel for corrosion resistance and high durability.
The ballast housing contains an easily accessed buss fuse with a hinged housing cover and captive screw for safe and simple servicing. The LED assembly is protected by an impact resistant polycarbonate lens cover and the fixture housing is finished in an electrostatically applied expoxy paint coating for uniform protection.The HBLP-15-LP-MLED is available in several optional mounting configurations including ceiling mounting, pendant mounting, wall mounting, and 90 degree and 25 degree stanchion mounting.
This explosion proof fixture is suitable for use in wet areas and marine outdoor applications. It is also rated for simultaneous exposure, meaning it is approved for locations that may present two distinct hazardous ratings. (Class I, Division 2 / Class II, Division 1)
Suggested applications include manufacturing and industrial operations, docks and marine environments, offshore oil rigs, chemical plants and anywhere a highly durable and efficient light source is needed that can withstand exposure to high stress environments.
|
||||||||||
 |
