Class I Division 1 & 2 Explosion Proof 150 Watt LED Light Fixture 16,000 Lumens- 200' Cord -EXP Plug

Class I Division 1 & 2 Explosion Proof 150 Watt LED Light Fixture 16,000 Lumens- 200' Cord -EXP Plug

$5,534.00 CAD
$5,534.00 CAD
促销 售罄
结账时计算的运费。
Specifications / Additional Information
HBLP-1MLED-200C-EPP High Bay Light Fixture Ratings
Lamp Type: LED Class I Divisions 1 & 2 Groups A,B,C,D
Dimensions: 16" diameter Class II Divisions 1 & 2 Groups E,F,G
Weight: 28 lbs. Class III Divisions 1 & 2
Voltage: Universal- 100-277V AC, 50/60Hz UL 844
Total Watts: 150W UL-1598/A
Total Lumens: 16,000 IP66
Luminous Efficacy: 106 Lm/W NEMA 4X
LED Lamp Life Expectancy: 100,000 Hours T5 Temperature Rating
Color Temp:5000K (cool white)
Color Rendering Index: >70
Beam Pattern: Flood
Power Factor: >0.9
Ambient Operating Temperature: -40°F to +149°F (-40°C to +65°C)
Operating Temperature Range: -40°F to +149°F (-40°C to +65°C)
Minimum Operating Temperature: -40°F (-40°C)
Maximum Case Temperature: +194°F (+90°C)
Housing Material: Powder Coated Aluminum
Lens Material: Polycarbonate
Housing Finish: Superior Dual Coat Finish
Mounting: (2) 5/16"-18 x .75" NPT Threaded Holes on Sides of Fixture
Wring: 200` 16/3 SOOW Abrasion and Chemical Resistant
Cord Cap: 5-15P (110-125V), 5-20P (110-125V), 6-20P (208-250V)

' Product Overview '
The Larson Electronics HBLP-1MLED-200C-EPP High Bay light fixture provides operators with a powerful and energy efficient alternative to traditional hazardous location luminaries. LED technology and compact design makes this lamp an excellent replacement upgrade option for bulky and high maintenance cost older fixtures. This Class 1 Division 1 & 2, Class 2 Division 1 & 2, Class 3 Division 1 & 2 explosion proof light fixture provides 16,000 lumens of high quality light while drawing only 150 watts. The copper free aluminum alloy body is powder coated for added durability and an attractive aesthetic appearance. Special heat dissipating design in conjunction with LED technology helps this fixture to achieve an excellent 100,000 hour rated lifespan with 80% lumen retention. Light weight and a low profile make this unit an attractive alternative to larger and heavier older fixtures and requires less hardware to install.

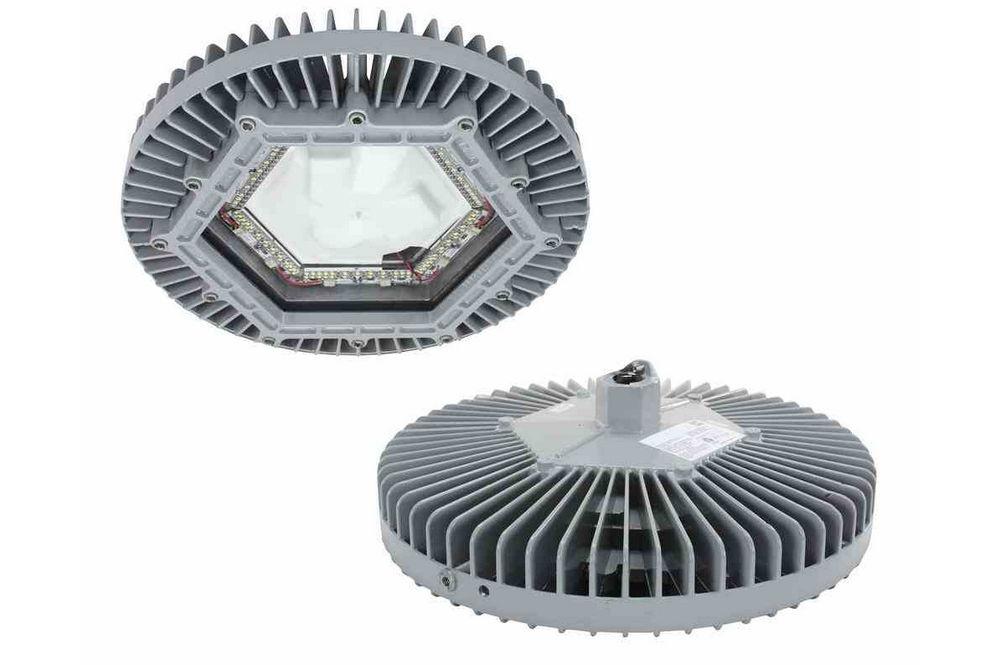

Click Photo to Enlarge
This light is multi-voltage capable and can be operated with 100-277 VAC, 50/60Hz without any need for a special ballast. The aluminum body and LED lamp give this light excellent durability and resistance to vibration and impacts. The housing is specially designed to dissipate heat which increases the efficiency and lifespan of the LED luminaries. The LED lamp produces 16,000 lumens with a color temperature of 6000K and a color rendering index of 70 which produces colors and details much more accurately than high pressure sodium or mercury vapor luminaries. The HBLP-1MLED  can be pendant mounted by bringing a rigid conduit down to the fixture. LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life. LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps.
Click Photos to Enlarge
5-15 Straight Blade Plug 5-20 Straight Blade Plug 6-20 Straight Blade Plug
Plug Options: The HBLP-1MLED-200C-EPP High Bay light fixture is equipped with 200 feet of 16/3 chemical and abrasion resistant SOOW cord that is fitted with an explosion proof cord cap for easy connection to explosion proof outlets. Plug options include a 5-15 15 amp straight blade plug for use with 120V explosion proof outlets, a 5-20 20 amp straight blade plug for use with 120V explosion proof outlets, or a 6-20 20 amp straight blade plug for use with 220-240V explosion proof outlets. **PLEASE NOTE** voltage ratings on plugs and outlets are MAXIMUM voltage. For low voltage applications, proper voltage must be applied to the outlet or damage to the light fixture will occur. Mounting Option Notes: (2) 5/16"-18 x .75" NPT threaded holes on sides of fixture.
High Quality Features Superior LED Benefits
1. Low power consumption. 2. Instant on/off operation. 3. Fixture constructed of extruded corrosion resistant copper free aluminum alloy. 4. Superior color rendering compared to HPS, LPS, MH. 5. Retains 80% lumen output after 60,000 operating hours. 6. Powder coated aluminum fixture body. 7. Multiple Mounting Options Including Pendant, Wall, Ceiling, Cable Mounting and Swivel Bracket. 8. Low profile - Light weight 9. 16,000 Lumen output from only 150 watts 1. 100,000 hour lifespan. 2. Can SAVE 50% or more on energy. 3. Qualifies retrofit projects for financial incentives, including utility rebates, tax credits and energy loan programs. 4. Reduces energy use and prolongs life-spans of peripheral cooling units (A/C, refrigeration) 5. 100% recyclable. 6. No toxins-lead, mercury. 7. No UV light, infrared radiation or CO2 emissions. 8. Qualifies buildings for LED and other sustainable business certifications. 9. Bright, even light maintains consistent color over time. 10. Instant on/off €“ No flickering, delays or buzzing. 11. Very good color rendering. 12. Vibration/impact resistant. 13. Significantly cooler operation. 14. Less frequent outages, higher output improves workplace safety.
