Red Handheld LED Spotlight with Inline Dimmer - 550 Foot Beam - 9-32 Volts DC - Coil Cord
Red Handheld LED Spotlight with Inline Dimmer - 550 Foot Beam - 9-32 Volts DC - Coil Cord
| HL-85-3W1-RED-D Spotlight | HL-85-3W1-RED-D Spotlight Features |
| Lamp Type: LED | High Output 3 Watt Red LED |
| Dimensions: 4.5"-L 1.5"-Depth 5/8" W | Lightwieght Pistol Grip Design |
| Weight: 10.Oz | No Tools Field Serviceable |
| Watts: 3 watts | 50,000 Hour LED Lamp Life |
| Voltage: 9 to 32 Volts DC | Heavy Duty Nylon and Aluminum Construction |
| Lamp Life Expectancy:50,000 Hours | PWM Dimming Controller - 0 to 100% |
| Amps: 0.25 on 12 VDC, 0.125 on 24VDC | |
| Light Color: Red | |
| Beam Type:Â Spot | |
| Mounting: Handheld | Toll Free:Â 1-800-369-6671 |
| Dimming: PWM Controller - 0 to 100% | Intl:Â 1-214-616-6180 |
| Fax:Â 1-903-498-3364 | |
| E-mail: | |
Buy American Compliant

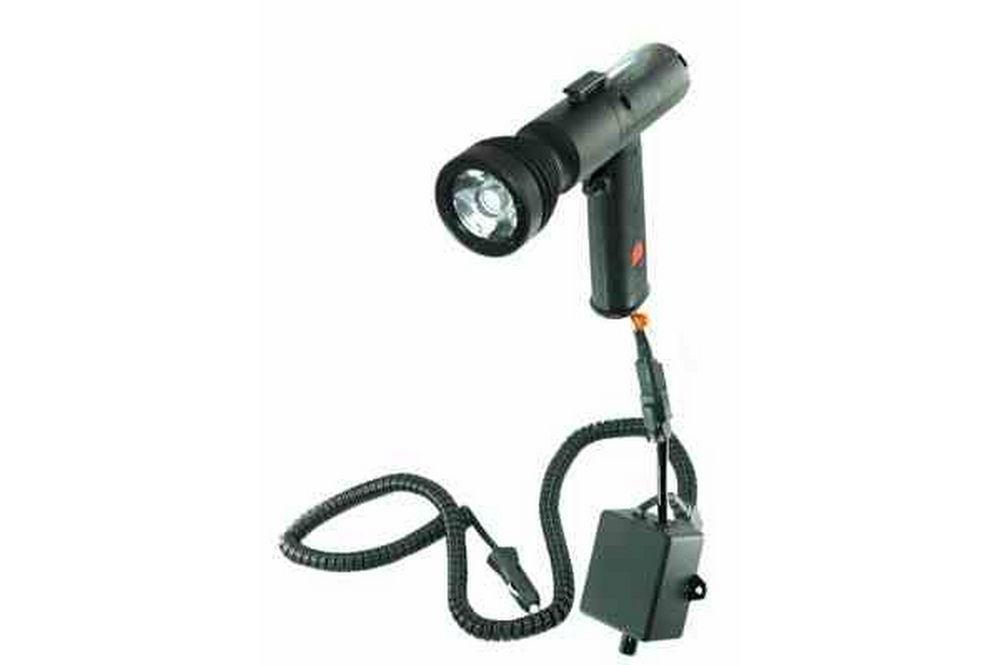

The HL-85-3W1-RED-D LED Pistol Grip Spotlight from Larson Electronics is an extremely rugged and effective spotlight designed to give users a powerful, durable and easy to use source of reliable red light output. This spotlight produces a powerful beam of red light reaching approximately 550’ long by 100’ wide. This spotlight is built for power, durability and versatility with a detachable 16 foot coil cord with cigarette plug, inline dimmer switch, and a patented 3 Watt LED reflector assembly packaged in a machined aluminum head .
This light weight, 3 watt red LED spotlight is ergonomically designed to produce a well balanced and easily managed handheld light source that can withstand abuse under tactical conditions with a handle constructed of high impact nylon and an LED fully potted within a lamp assembly constructed of machined aluminum. This spotlight and the materials it is constructed from are water, UV ray, impact and vibration resistant and designed to be easily field serviceable. This unit requires no tools to remove any components and the internal connectors are accessed through a snap in base at the bottom of the handle. This spotlight will work with 12 or 24 volt DC, and power is provided through a 16 foot coil cord and cigarette plug connector.
The HL-85-3W1-RED-D is equipped with an inline dimmer switch (PWM) that controls the brightness of the light emitted by the LED head. This switch operates with pulse width modulation technology for precise control and reliable operation and allows the operator adjust the brightness simply by turning a dial.
|
||||||||||
| Durability-Convenience: The HL-85-3W1-RED-D Pistol Grip LED Spotlight has a booted push button switch, sealed cord connectors, IP67 (watertight) rated LED light head and contains a single LED that is fully potted within a machined aluminum lamp housing protected by a thick Lexan lens. This LED has an expected life span of 120,000+ hours and the entire LED lamp housing can be removed and replaced. This light is constructed of UV, water and impact resistant materials including a handle constructed of high impact nylon for extreme durability and resistance to damage from vibrations, shocks and impacts. The machined aluminum lamp housing is finished with an anodized coating for corrosion resistance. 16 gauge wiring is used to connect the internal components for maximum reliability and durability. Each HL-85-3W1-RED-D comes with a detachable 16 foot coil cord with cigarette plug. The cord is detached via a weatherproof, 2 pin Deutsch connector which easily and securely attaches and detaches the coil cord from the spotlight. Other cords, including 21 foot cords with ring terminals (C-21RT), 16 foot cord with spring battery clamps (alligator clips) (C-16BC) and a 16 foot straight cord with cigarette plug (C-16CP) are available. Also included is a lanyard attachment for securing the light to wrists to prevent dropping if the user loses their grip. This light operates on any voltage from 9 to 32 VDC, making it ideal for connecting to vehicles and equipment as well as hunting, boating, security and any application where typical 12 or 24 VDC electrical power is available. Versatility: The entire unit weighs only 14 ounces and comes with an included wrist lanyard for added carrying security. We also offer an optional magentic base and permanent mount bases, which can be screwed into the 3/8-16 inch brass nut fastener eimbedded in the base of the handle . This unit is fully field serviceable and requires no tools to disassemble or reassemble. This unit can be run from any 12 volt vehicle, ATV or boat battery and is ideal for military, security and law enforcement use as well as hunting and any application that requires an extremely durable and effective source of portable illumination. Inline Dimmer: We have fitted this unit with an encapsulated, inline pulse width modulation controller to allow operators to dim the LED output to any desired level from 0 percent to 100 percent light output. This feature is ideal for hunters and other operators who don`t need maximum output at all times and wish to subdue the light for more covert applications. |
