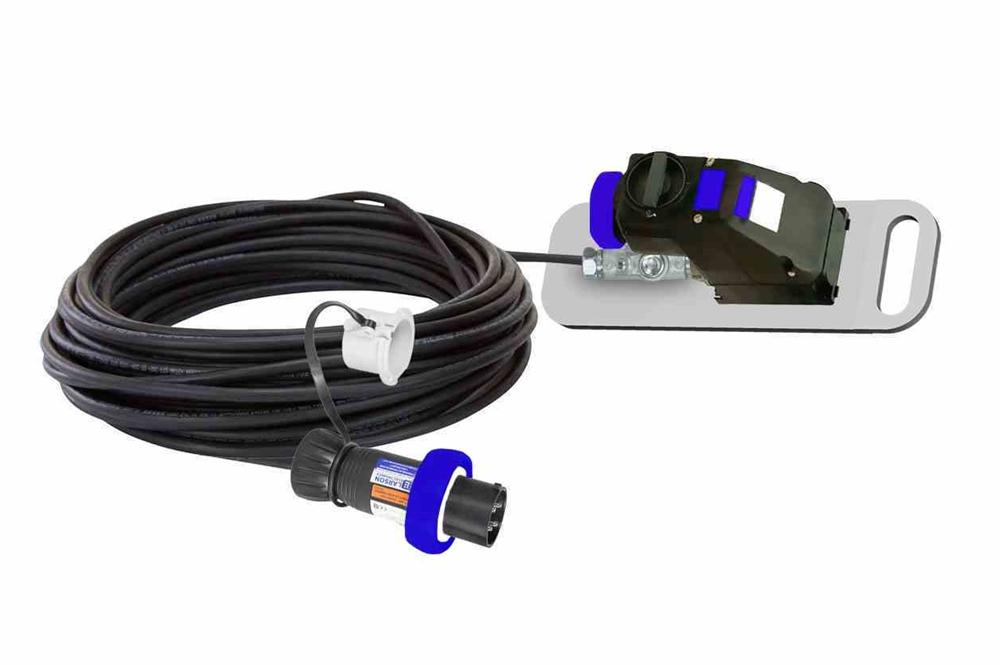

Explosion Proof Extension Cord - 50M 12/3 SOOW Cord - 220V - 20A Cont Capacity - Blue

LARSON ELECTRONICSSKU: PL3-HLEXC-EX-50M-12.3-20A-2P3W-220V
filler

Price:
Sale price$5,504.00
 更多支付选项

Description

Specifications / Additional Information
HLEXC-EX-50M-12.3-20A-2P3W-220V Explosion Proof Extension Cord Ratings/Approvals
Listing: NRTL Listed for North America, Europe, Brazil, Korea & International Locations NEC, CEC, ATEX, IEC Ex Rated
Device Series: IEC 60309 (International Standard) Class I, Division 2, Groups A, B, C, D
Cable Type: 12/3 SOOW Class I, Zone 1 & 2, Groups IIC, IIB, IIA
Cable Length: 50 Meters Class II, Divisions 1 & 2, Groups E, F, G
Cable Color: Black Class III, Divisions 1 & 2
Receptacle Dimensions: 9.13"-H x 4.13"-W x 6.6"-D Approved for Zone 1 and 2
Weight: - Approved for Zone 21 and 22
Amperage Rating: 20A Ex db eb IIC T6 Gb
Voltage: 220 V AC Ex tb IIIC T80 °C Db
Frequency: 50/60 Hz Ex II 2 G Ex db eb IIC T6 Gb
Phase: Single Phase Ex II 2 D Ex tb IIIC T80 °C Db
Horsepower: 3 HP @ 220 V NRTL Certified to IEC 60079
Configuration: 2P3W NRTL Certified to EN 60079
# of Poles: 2-Pole CE Certified
# of Wires: 3-Wire RoHS Certified
Max Voltage Rating: 220 V AC NEMA 3, 4, 4X
Clock Hour: 6H IP66 Weatherproof
Color Code: Blue Compatible with IEC 60309 Compliant Products
Protection: Interlocking Switch Mechanism & Padlockable Certified for Full Load Interrupting
# of Operations: > 5000 Connects/Disconnects Under Load @ Full Rated Current and Voltage
Minimum Withdrawal Force: 5 lb
Temperature Rise: Max +30°C at Full-Rated Current After 50 Cycles of OL at 150% Rated Current
Operating Temperature Range: -55°C to +65°C
Waterproof Rating: IP65, NEMA 4X
Shock Resistance: IK09
Flammability: V-2 Rated
Cable Secureness: Force: 30 lb; Torque: 0.4 ft-lb; Max Disp: <= 3/32"
Seals: Neoprene
Material, Housing Body: Polyamide
Material, Housing Cover: Polyamide
Material, Contacts: Brass
Material, Contact Carrier: Nylon
Material, External Screws: Acid-Proof Stainless Steel
Material, Internal Screws:Stainless Steel Special Orders - Requirements
Material, Phase/Ground Sleeves: Brass
Material, Sleeve Spring: Stainless Steel
Material, Terminal Screws: Stainless Steel
Shipping Dimensions: -
Shipping Weight: -
' Product Overview '
function MM_openBrWindow(theURL,winName,features) { //v2.0 window.open(theURL,winName,features); }
Made in the USA The HLEXC-EX-50M-12.3-20A-2P3W-220V from Larson Electronics is an Explosion Proof Extension Cord that allows operators to safely extend the range of their explosion proof light or equipment beyond the boundaries of the hazardous work area. Compatible with 220 V, the ATEX/IECEX rated unit features a maximum continuous capacity of 20 amps and contains one explosion proof receptacle. This 12/3 Type W cord measures 50 meters in length and is equipped with a 63-amp explosion proof plug. The HLEXC-EX-50M-12.3-20A-2P3W-220V extends electrical connections in combustible facilities. This 50 meters of 12/3 SOOW cord is compatible with 220 V. Featuring a continuous capacity of 20 amps, the unit contains an ATEX-rated plug and receptacle with integrated locking features. With Zones 1, 2, 21 and 22, as well as IP66 ratings, the explosion proof extension cord is suitable for rugged locations. The ATEX-rated receptacle/plug feature non-metallic, polyamide, and fiber-reinforced glass construction. Specially designed color coding and pin configuration reduces the possibility of making incorrect power connections. To ensure safety, the components are coded blue. The color coding of these units makes it impossible to connect different voltages and current ratings, to ensure safe power connection. Suggested Applications: Manufacturing, Industrial, Warehouse, Lighting, ATEX-rated Light Fixtures, Grinders, Wet areas or Locations Where Combustible Dust is Present.
