Hazardous Location Pin and Sleeve Outlet - 2 Pole 3 Wire - 16 Amp - C1D2/C2D1 - 600V Rated
Hazardous Location Pin and Sleeve Outlet - 2 Pole 3 Wire - 16 Amp - C1D2/C2D1 - 600V Rated
| HLO-16A-2P3W Explosion Proof Outlet | Certifications - Compliance |
| Amp Rating: 16 | Class I, Division 2, Groups A, B, C, D |
| Dimensions: | Class I, Zone 1 & 2, Groups IIC, IIB, IIA |
| Configuration: 2-Pole 3-Wire | Class II, Div 1 & 2, Groups E, F, G |
| Suitable Cable Diameter: 0.30" to 0.80" | Class III |
| Seals: Neoprene onion skin gasket | NEMA 3, 4, 4X |
| Compatibility: HLO-16A-2P3W | IP66 Waterproof |
| Protection: Twist Lock Activation on Compatible Twist Lock Receptacles | |
| Hub Size: 3/4" NPT or 1/2" NPT | |
| 1P Horsepower: 1.5HP @ 120V, 3HP @ 240V, 5HP @ 480V | |
| 3P Horsepower: 5HP @ 240V, 10HP @ 480V, 15HP @ 480V | |

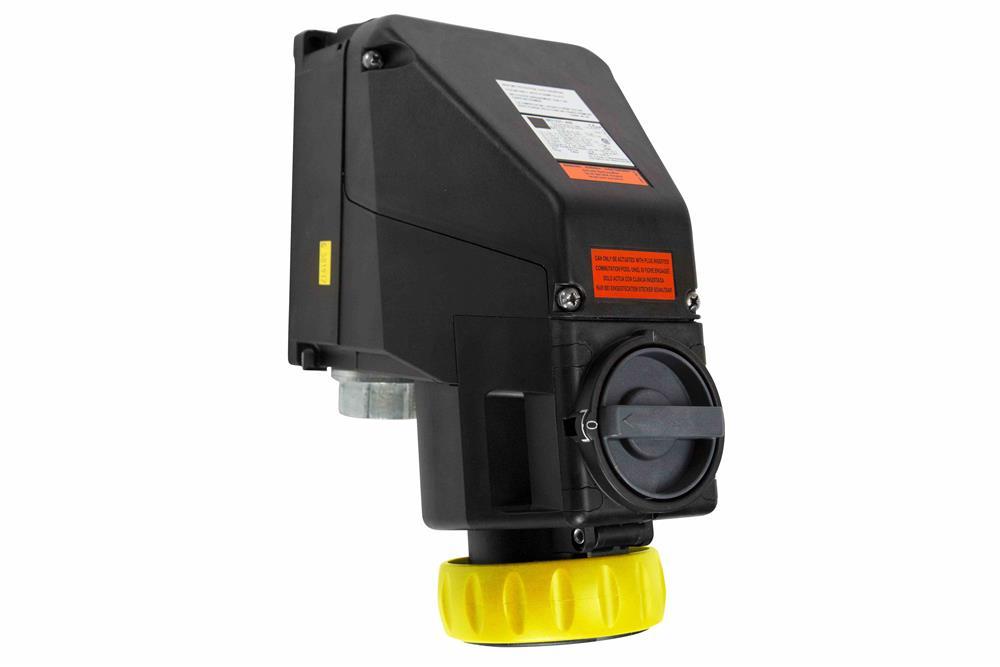

| The Larson Electronics HLO-16A-2P3W Hazardous Location Pin and Sleeve Outlet is a Class 1, Division 2 and Class 2, Divisions 1 & 2 rated receptacle approved for use in hazardous environments where flammable or explosion gases, vapors, or dusts stand the potential to exist and where flammable dusts, fibers, or flyings exist. This 3-pole, 4-wire outlet is designed to provide a secure connection for electrical equipment within the hazardous location. This hazardous location 2-pole 3-wire pin and sleeve receptacle is compatible with our HLO-16A-2P3W hazardous location power plugs. This outlet is rated for 16 amps and is suitable for Class 1, Divisions 2, Groups A, B, C and D, Class 1, Zones 1 & 2, IIC, IIB, and IIA, Class 2, Divisions 1 & 2, Groups F and G, and Class III rated. This hazardous location outlet features polyamide construction, recessed brass pins, a 16 amp current rating, and maximum voltage rating of 600V AC and 250V DC. |
| Suggested Applications: Manufacturing, industrial, warehouse, lighting, motor-generator sets, compressors, wet areas or locations where combustible dusts, fibers, or flying are present or where explosive gases or vapors may be present. |
| Â |
