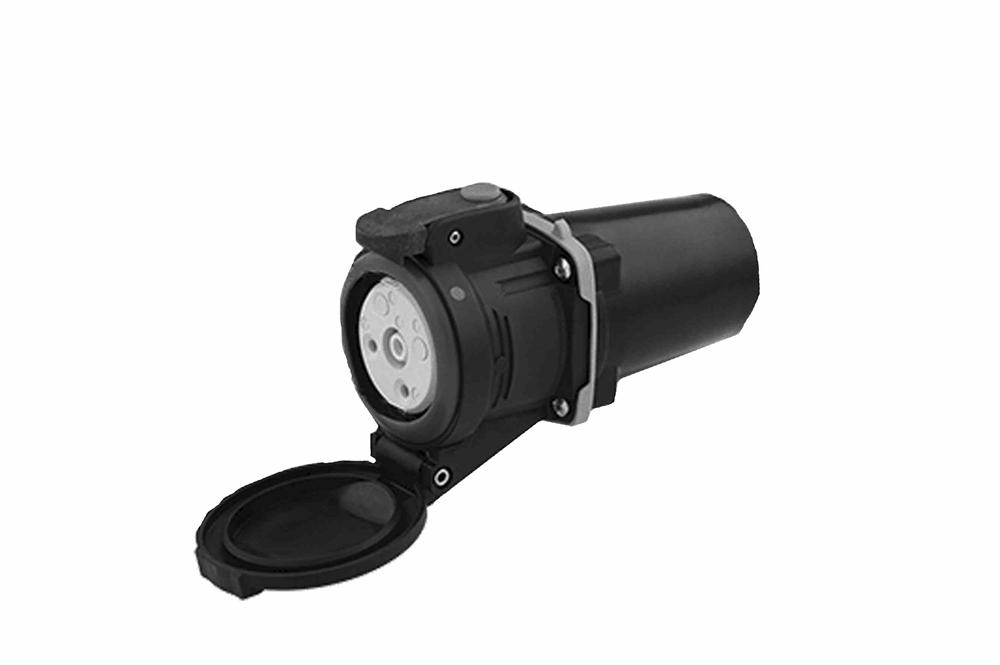

30A Hazardous Location Connector - 2P3W - Class I/II, Div 2 - 125V - IP67 - Attached Cover

LARSON ELECTRONICSSKU: PL3-HLX-MXH-30A-125V-2P3W-C
filler

Price:
Sale price$5,338.00
 更多支付选项

Description

Specifications / Additional Information
HLX-MXH-30A-125V-2P3W-C Hazardous Location Connector Ratings
Listing: NRTL Listed for United States and Canada Class I, Division 2 Groups A, B, C, D
Dimensions: 6.10"-L x 2.60"-Face Diameter Class II, Division 2 Groups F, G
Weight: - Zone 1, Groups IIC, IIB, IIA
Amperage Rating: 30 A Zone 21, Groups IIIC, IIIB, IIIA
Voltage: 125 V AC, 1-Phase IP66/IP67
HP: 1/2 HP
Connector Type: Female, Pin and Sleeve
Connector Configuration: 3-Wire, 2-Pole
Operating Temperature Range: -40°F to 140°F
Temperature Rating: T5
Housing Materials: Polyester Plastic Special Orders - Requirements
Pin/Sleeve Material: Silver-Plated Nickel
Mount: -
Mating Plug: HLX-MXH-30A-125V-2P3W-P Int'l: 1-214-616-6180
Mating Receptacle: HLX-MXH-30A-125V-2P3W-R
Color: Black
' Product Overview '
function MM_openBrWindow(theURL,winName,features) { //v2.0 window.open(theURL,winName,features); }
Made in the USA The HLX-MXH-30A-125V-2P3W-C from Larson Electronics is a Hazardous Location Connector that allows operators to safely connect their equipment within Class I and II, Division 2 rated areas. This 30-amp hazardous location female connector with attached cover is IP66/IP67 rated and features a T5 temperature rating. The HLX-MXH-30A-125V-2P3W-C hazardous location 3-wire, 2-pole connector is rated at 30 amps of continuous service and has flameproof protection by the enclosure. This female connector is from the Larson Electronics MXH series. The connector is protected by a polyester plastic housing with silver-plated nickel pin and sleeve components. This hazardous location connector carries a T5 temperature rating and is suitable for -40°F to 140°F environments. Suggested Applications: Manufacturing, Industrial, Warehouse, Lighting, Explosion Proof Light Fixtures, Grinders, Wet areas or Locations Where Combustible Dust is Present.
