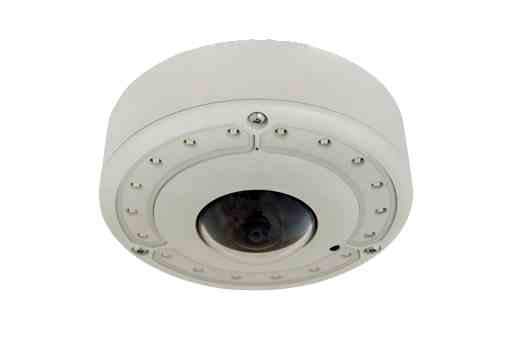

Larson 12MP Fisheye Security Camera - 12V DC/PoE - OZT, Day/Night - 65' Infrared Distance, IP68/N4X - NDAA Compliant

PuriLite suggests you place an order directly with us for large Larson orders due to the potential customization requirements. Please call us at 1(647) 254-9757 to place your order. If you prefer to place your order online, a PuriLite agent will be in touch with you to discuss any custom options.
The Larson Electronics IDCMR-NDAA-IP-POE-DPTZ-12MP Fisheye Outdoor Security Camera is designed for discreet monitoring and remote observation in indoor/outdoor industrial environments. This 12MP high resolution security camera features 65`infrared LED range for monitoring in low-light conditions, a built-in microphone and automatic defog. The NDAA compliant device operates on 12V DC or PoE.
Camera Features:
The IDCMR-NDAA-IP-POE-DPTZ-12MP security camera provides operators with crisp 4072 x 3046 resolution images. A fixed focal lens offers precise 198.5° x 121.1° viewing. Adaptive infrared LEDs enable the day/night camera to see objects at distances up to 65` under nighttime conditions. White balance, brightness, contrast, sharpness, automatic gain control, flickerless and automatic defog enhance images during recording. This unit features H.264 and MJPEG video compression. The OZT camera measures a compact 6" x 2.8" and supports a variety of mounting options.
This outdoor security camera complies with the 2019 National Defense Authorization Act (NDAA). The regulation bans federal governments, their contractors and businesses with national security interests from buying and using surveillance equipment made by specific major China-based manufacturers, including Hikvision, Dahua and their OEMs. Security products sold by Honeywell, Bosch, Panasonic, ADT, Flir and many more are affected by the ban. NDAA compliance also includes a ban on ZTE, Huawei and Hytera telecommunication equipment.
The NEMA 4X rated security camera is designed to perform in outdoor locations and rainy conditions. This IP68-rated unit resists the negative effects of non-corrosive liquids. This device is capable of operating in temperatures between -40°F and 122°F.
Mounting/Wiring:
The IDCMR-NDAA-IP-POE-DPTZ-12MP security camera can be secured to a flat surface, such as a ceiling or wall (mounting accessories sold separately). The security camera is designed to operate on 12V DC or PoE. Link-up with the device is achieved via a customer provided cable.
Our outdoor cameras with Power over Ethernet (PoE) features enable data transfers and power to be passed through a single Ethernet cable that is usually a Cat 3/Cat 5 cable or better. There are several types of PoE, which come with their own respective standard and maximum power to port capabilities. The IEEE 802.3af PoE standard, with a voltage range of 44.0 - 57.0V, offers 15.4W of DC power for each port. The IEEE 802.3at PoE standard, with a voltage range of 50.0 – 57.0V, provides up to 30W of DC power per port, which is ideal for surveillance cameras, antennas and network access points. The IEEE 802.3bt PoE standard, with a voltage range of 50.0 – 57.0V, provides 60W of DC power for each port. In order to utilize PoE properly, the components, such as the receiving unit and sending device, must be PoE compliant.
Applications:
Security systems, remote surveillance, general locations, law enforcement, police, indoor/outdoor facilities, commercial establishments, monitoring, military, industrial sites and more.
Contact info@purilite.ca for more information about our custom options tailored to meet your specific industry needs.

Specifications
Unit Type: Hemispheric Dome Outdoor Security Camera
Dimensions: 6"-OD x 2.8"-H
Camera Weight: 2.06 lbs
Total Watts: 12.95W (PoE, IR on), 10.77W (PoE, IR off), 7W (DC)
Voltage: 12V DC
PoE: PoE Class 3 (IEEE802.3af)
Image Sensor: Progressive Scan CMOS
Sensor Size: 1/1.7"
Camera Resolution: 4072(H) X 3046(V)
Megapixel: 12MP
Compression Type: H.264 (Baseline/ Main/ High Profile), MJPEG
Frame Rate: Fisheye View- 18 fps at 4000 x 3000, 30 fps at 2048 x 2048, 30 fps at 1600 x 1200, 30 fps at 1280 x 960, 30 fps at 1024 x 1024, 30 fps at 800 x 600, 30 fps at 640 x 480; Dewarped View- 10 fps at 4096 x 2160 4K Ultra HD, 10 fps at 3840 x 2160 4K Ultra HD, 30 fps at 1920 x 1080, 30 fps at 1280 x 960, 30 fps at 1280 x 720, 30 fps at 800 x 600, 30 fps at 640 x 480; ePTZ View- 30 fps at 1920 x 1080, 30 fps at 1600 x 1200, 30 fps at 1280 x 960, 30 fps at 1280 x 720, 30 fps at 1024 x 1024, 30 fps at 800 x 600, 30 fps at 640 x 480, 30 fps at 320 x 240
Electronic Shutter: 1/5-1/16000 Second (Manual Mode); 1/5-1/16000 Second (Auto Mode)
Focal Length: Fixed Focal, f1.65mm
Aperture: F2.8
Iris: Fixed
Focus: Fixed
Horizontal Viewing Angle: 198.5° (Overview Area) 121.1° (High Detail Area)
Vertical Viewing Angle: 198.5° (Fisheye View)
Viewing Angle Adjustment:
Rotation- 175°-175°
Overview, Zoom and Tracking (OZT): Yes
Minimum Illumination: Color- 0.1 lux at F2.8 (30 IRE, 2400 K); B/W- 0 lux at F2.8 (IR LED on)
Color to B/W Switch:
ISP Based Switch, Configurable
Mechanical IR Cut Filter: Yes
IR Sensitivity Range: 700-1100nm
IR LED:
Adaptive IR LED x 18 (850 nm)
IR Working Distance: 65.6'
Horizontal Resolution (TV Lines): 2250 TVL
S/N Ratio: 56 dB
View Mode: Fisheye View, Dewarped View, 270-degree Corner View, Multiple View, ePTZ View
Multi-streaming:
Simultaneous Triple Streams Based on Three Configurations
Bit Rate: 128Kbps - 12Mbps (per Stream)
Bit Rate Mode: Constant, Variable
Wide Dynamic Range: Extreme WDR (130 dB)
Image Enhancement: White Balance, Brightness, Contrast, Sharpness, Automatic gain control, Flickerless, Defogging
Digital Noise Reduction: 2D + 3D DNR
Privacy Mask: 8 Configurable Regions
Text Overlay: Yes
Network Protocol/Service: IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, QoS, SNMP, IEEE 802.1X
Network Security: IP Address Filtering, HTTPS encryption, Password-protected User Level, Anonymous Login, IEEE 802.1X Network Access Control
Capabilities: Event Trigger, Video Motion Detection, External Device Through Digital Input, Sound Detection, Intelligent Event Detection, Event Response, Video Analytics (Built-in and Server-based), Standard Metadata Accuracy
Audio Type: 2-way, Built-in Microphone, Mic-in, Line-in, Line-out
Audio Compression: 8 kHz, 16 bit encoding, Mono, PCM, G.711
Audio Interface: 1/1, Terminal Block, Built-in Microphone
Storage: MicroSDHC, MicroSDXC Memory Card Slot (Card Not Included)
Digital Input/Output: 2/2 (Terminal Block)
Integration: Software Development Kit, GPS Position (Manual Setting), ONVIF Compliant (Profile S, Profile G, Profile G, Profile T), GB28181 Compliant, Web Browser (IE11), Auto Firmware Upgrade
Ambient Temperature Range: -40°F ~ 122°F
Housing Material: -
Lens Material: -
Mounting: Surface/Ceiling (Mounting Accessories Not Included)
Wiring: -
