Larson UV Air Sanitation Purifier - 120V - (2) 15W T8 UVC Lamps - 15' 16/3 SOOW Cord - Occupied Areas - Type A HEPA Filter

Larson ElectronicsSKU: PL3-IND-AHF-BX-UVC-R2-120V-15C
filler

Price:
Sale price$9,898.00

Description

PuriLite suggests you place an order directly with us for large Larson orders due to the potential customization requirements. Please call us at 1(647) 254-9757 to place your order. If you prefer to place your order online, a PuriLite agent will be in touch with you to discuss any custom options.
This unit is Made In USA - Manufactured in Texas

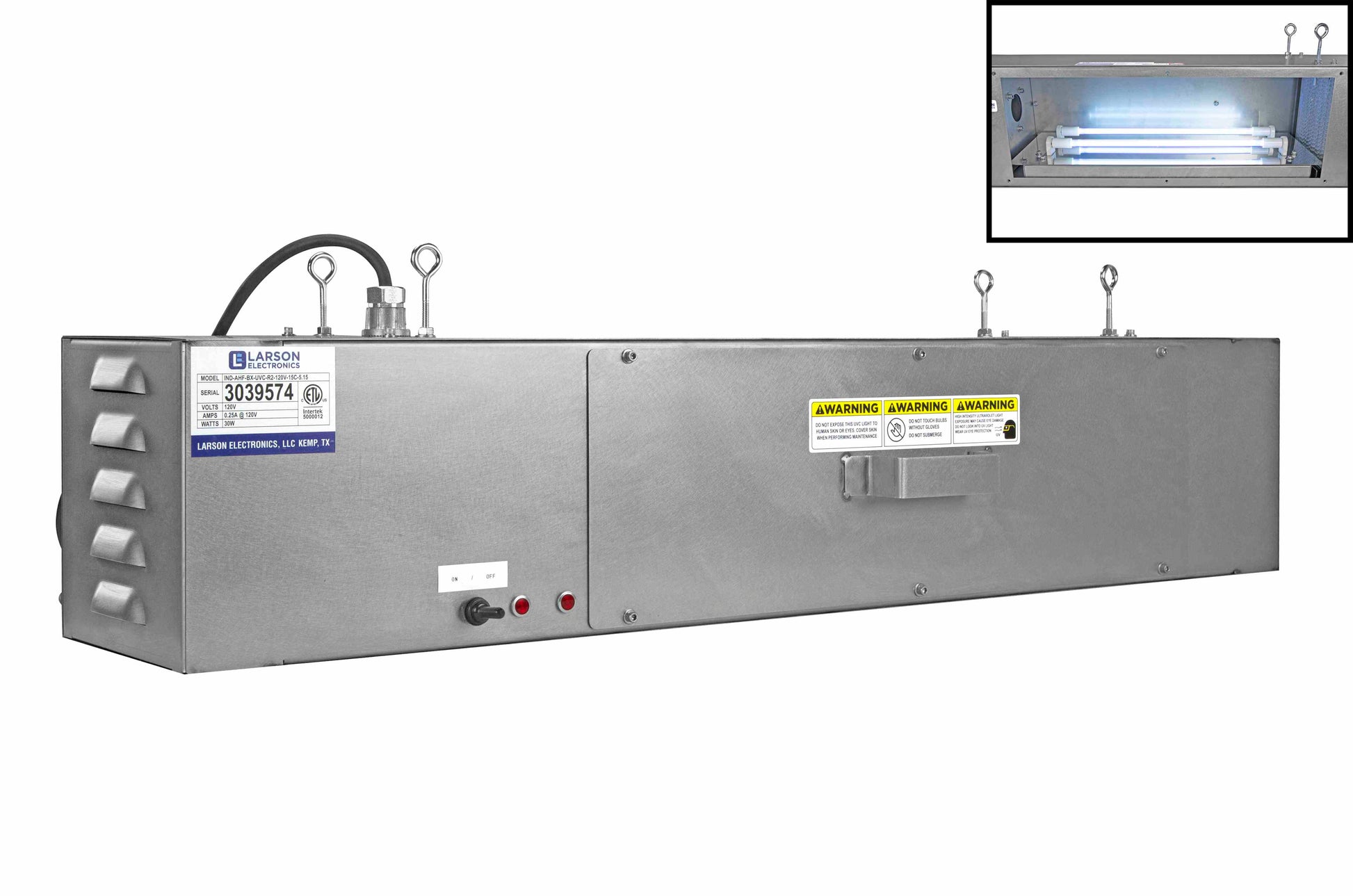

The IND-AHF-BX-UVC-R2-120V-15C Industrial UV Air Purifier from Larson Electronics actively disinfects the surrounding air in occupied areas without noise. This unit uses two T8 UVC lamps that provide 10.6 watts of total UV output during UV treatment as well as a Type A HEPA filter. Designed for free-standing operation and permanent installation on walls, surfaces or ceilings, the UV air purifier operates on 120V AC and is protected by 304 stainless steel enclosure.
*Please note: This product produces UV light. Make sure to follow all safety guidelines and protocols found in the user manual.
*
The IND-AHF-BX-UVC-R2-120V-15C is a powerful sanitation solution for occupied areas in buildings. Equipped with two T8 UVC fluorescent lamps, this system offers 10.6 watts of total UV output, within the 200nm - 280nm UV-C range (254 nm peak). The lights have an expected lifespan of 8,000+ hours and emit a flood beam pattern inside the unit. The UV chamber has a polished surface to maximize light distribution during UV treatment. Constructed of 304 stainless steel, the UV lights are enclosed inside the unit preventing UV exposure in occupied areas. A limit safety switch ensures automatic disconnection of power to the system during servicing, installation or maintenance. LED indicator lights on the unit notify individuals when the system is in operation and when the lamps must be replaced (one LED indicator light per lamp).
Blower Capacity
72 cubic ft/minute
Nominal Fixture Capacity
54 cubic ft/minute
Max Treatment Capacity
3,240 cubic ft/hour
Max Room Size @ 3 Air Changes/Hour
1,080 cubic ft
Max Room Size @ 4 Air Changes/Hour
648 cubic ft
Max Room Size @ 5 Air Changes/Hour
810 cubic ft
Max Room Size @ 6 Air Changes/Hour
540 cubic ft
Operation:
Surrounding "dirty" air is drawn into the UV purifier via a type A HEPA filter. Type A HEPA filters have a minimum efficiency rating of 99.97% for 0.3 µm particles. The "dirty" air passes through the UV sanitation chamber where it is treated with UVC light using the two T8 fluorescent lamps. The disinfection process kills up to 99.9% of viruses, bacteria, mold, spores and other harmful microbes. Clean sanitized air exits the chamber through a louvered exhaust panel and is released back into the environment. This low-maintenance air disinfection process is continuous and quiet.
5-15 Straight Blade Plug
L5-15 Twist Lock Plug
Flying Leads / Pigtail Wires
Wiring/Plug:
This unit is equipped with 15 feet of 16/3 chemical and abrasion resistant SOOW cord that is fitted with an industrial grade cord cap for easy connection to common wall outlets. Plug options include standard 5-15 15 amp straight blade plug for 110V wall outlets with ground or NEMA L5-15 15 amp twist lock plug for 125V twist lock outlets. Alternatively, we can provide flying leads with no plug for hard wire applications or for operators who prefer to wire in user provided cord caps. Please choose pigtail option below for flying leads with no plug.
Mounting:
The IND-AHF-BX-UVC-R2-120V-15C can be deployed as a free-standing unit in occupied areas. This unit is also compatible with permanent installations on walls, surfaces or ceilings. We offer models with 2x2 and 2x4 troffer mount features for installations on ceilings with tiles or grids.
Note on Environment:
Sunlight and visible light fixtures do not impact the effectiveness of the disinfecting on this UVC sanitation product. Metal halide, high pressure sodium, fluorescent, and LED light fixtures can be left on. The UV radiation emitted from this product is not disrupted by any type of lighting in the environment. Put simply, NO it DOES NOT need to be dark in the area you plan to disinfect. The UV radiation is harmful to the eyes and skin, and that is why you should not be in the area while it is in operation. Please see user manual for additional safety information.
Applications:
Sanitation, disinfection, retail spaces, occupied areas lobbies, commercial locations, industrial parks, schools, public transportation hubs, airports, office buildings, medical centers and more; kill 99% of viruses, bacteria, mold, and spores.
Larson Electronics is a manufacturer and as such can build stationary and portable transformer systems to your Specifications. Although we carry several models of power distribution transformer systems, we can deliver custom ordered units almost as quickly as our prebuilt units. If this model does not meet your needs, please contact us at 1(647) 254-9757 or
Contact info@purilite.ca
to discuss your specific requirements.

Specifications
Lamp Technology: UV-C Fluorescent
Lamp Quantity: (2) UVC Lamps
Dimensions: 36"-L x 7.75"-W x 7.75"-H
Weight: -
Voltage: 120V AC
Total Watts: 30W
Single-lamp Watts: 15W
Total UV Output: 10.6W
Single-lamp UV Output: 5.3W
Total UV Irradiance: 88 uW/cm2 at 3 feet
Expected Lifespan: 8,000+ Hours
UV Wavelength: 254nm
Lamp Type: T8 1.5F
Lamp Base: G13
Replacement Lamp: -
Beam Angle: 360º
Light Configuration: Flood
Internal Reflector: Polished
LED Indicator Lights : In Operation, Lamp Replacement (One Light per Lamp)
: - 30W 15W 10.6W 5.3W 88 uW/cm2 at 3 feet 8,000+ Hours 254nm T8 1.5F G13 - 360º Flood PolishedLED Indicator Lights In Operation, Lamp Replacement (One Light per Lamp) Limit Switch 72 cubic ft/minute 54 cubic ft/minute 3,240 cubic ft/hour 1,080 cubic ft 810 cubic ft 648 cubic ft 540 cubic ft - 304 Stainless Steel, Aluminum Free Standing and Wall, Surface, or Ceiling Mount Louvered Exhaust Panel 15' 16/3 SOOW Cord w/ 120V Cord Cap 5-15 Straight, L5-15 Twist, or Pigtail info@purilite.ca
Safety Switch: Limit Switch
Blower Capacity: 72 cubic ft/minute
Nominal Fixture Capacity: 54 cubic ft/minute
Max Treatment Capacity: 3,240 cubic ft/hour
Max Room Size @ 3 Air Changes/Hour: 1,080 cubic ft
Max Room Size @ 4 Air Changes/Hour: 810 cubic ft
Max Room Size @ 5 Air Changes/Hour: 648 cubic ft
Max Room Size @ 6 Air Changes/Hour: 540 cubic ft
Amps: 0.25A @ 120V
Ambient Operating Temp Range: -
Materials: 304 Stainless Steel, Aluminum
Mounting: Free Standing and Wall, Surface, or Ceiling Mount
Air Flow Exit: Louvered Exhaust Panel
Cord: 15' 16/3 SOOW Cord w/ 120V Cord Cap
Cord Cap: 5-15 Straight, L5-15 Twist, or Pigtail
