Larson 36W Germicidal UV-C Fixture - (2) T5 Lamps - Motion Sensor, Remote - 6' 18/3 SJTW Cord
Larson 36W Germicidal UV-C Fixture - (2) T5 Lamps - Motion Sensor, Remote - 6' 18/3 SJTW Cord
The Larson Electronics IND-LD-4P18-24-2L-MS-120V-6C UV-C Germicidal Fluorescent Fixture disinfects 99% of viruses, bacteria, mold and spores in large facilities. This budget-friendly sanitation fixture operates on 120V AC or 120/277V AC and consists of two, T5 fluorescent lamps that each provide 5 watts of UV-C output at a range of 200nm - 280nm (254nm). For long-term sanitation, we offer an enhanced and more durable version of this unit (see
IND-LP-24-2L-UVC-T8-V1
).
*Please note: This product produces UV light. Make sure to follow all safety guidelines and protocols found in the user manual.
*

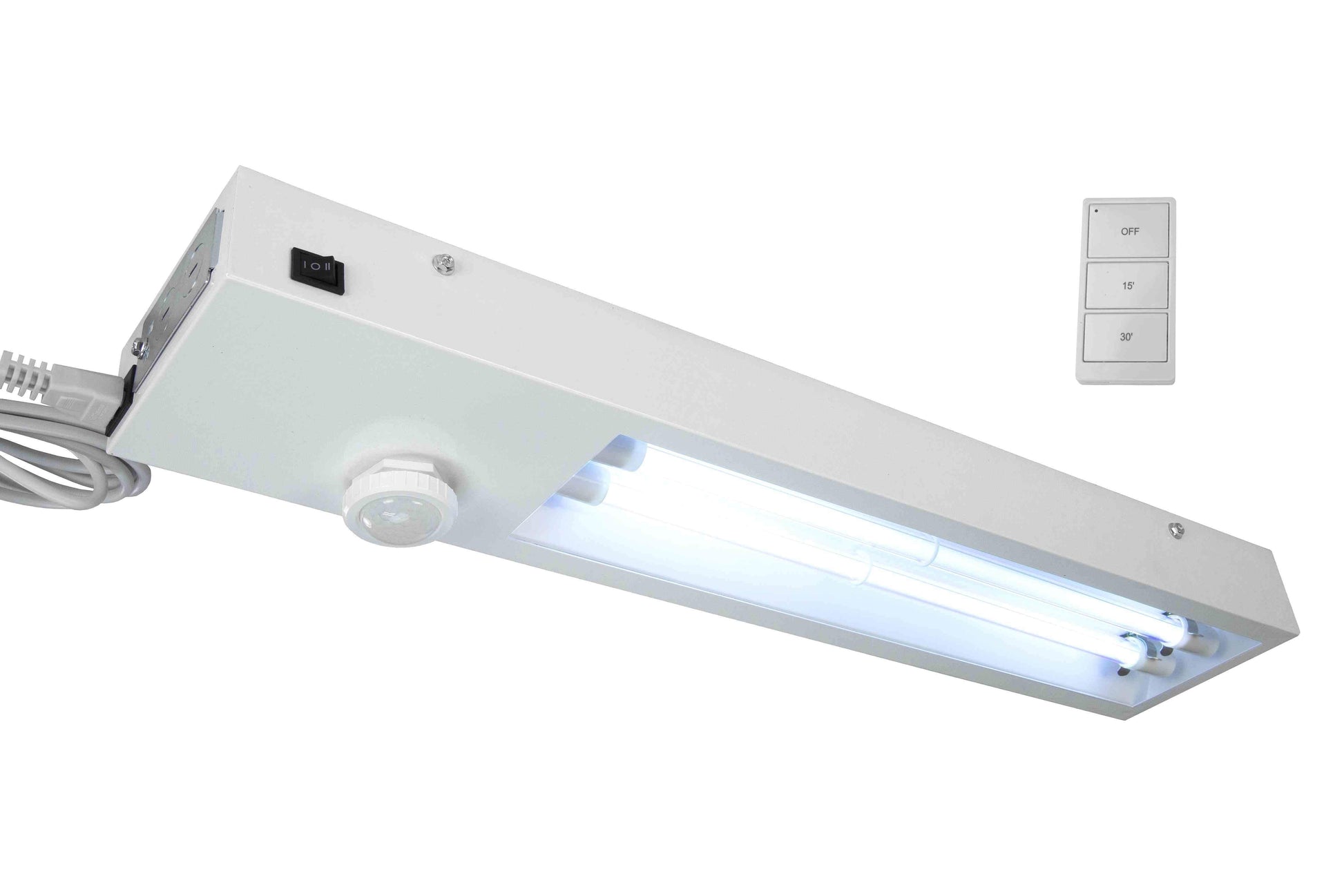

The IND-LD-4P18-24-2L-MS-120V-6C is a convenient sanitation solution for general area lighting systems and commercial indoor spaces. Equipped with two T5 UV fluorescent lamps, this system offers 10 watts of total UV output, within the 200nm - 280nm UV-C range (254 nm). The lights have an expected lifespan of 8,000+ hours and emit a flood beam pattern. With two 18" long lamps, this UV system caters to a wide range of sanitation activities via 180 degrees of coverage. A white surface reflector promotes light distribution during UV treatment.
The UV light can disinfect over 99% of viruses, bacteria, mold and spores.
This unit is made out of 16-gauge powder coated steel with a white finish. A built-in on/off switch is available at the front of the unit. An included PIR motion sensor provides an extra layer of safety by deactivating the unit upon sensing movement within its line of sight. A compact remote can be used to turn the fixture on and off, as well as set 15-minute and 30-minute runtimes.
We offer a heavy-duty version of this UV-C fixture, which is designed for rugged applications (see
IND-LP-24-2L-UVC-T8-V1 for more information). This alternative is more powerful (at 18.2 watts of total UV output, compared to 10 watts of total UV output) and can cover up to 500 square feet of space during UV treatment. Effective coverage with the dual-lamp fixture depends on the mounting height. When it comes to size, this superior alternative is longer, slimmer and shorter than the budget-friendly unit. The UV-C fixture's extended size helps promote beam coverage, while its slimmer and shorter profile caters to space-saving installations. Protected by a cold rolled steel housing with a flat white polyester finish, this model does not need to be frequently replaced, as it is suitable for long-term sanitation.
Voltage/Wiring:
The UV-C sanitation fixture operates on 120V AC when using the included 6' 18/3 SJTW cord with 5-15P cord cap. Two 1/2" NPT knockouts are available for direct wiring to 120/277V AC power sources, which allows the unit to operate on 120/277V AC power.
Mount:
The IND-LD-4P18-24-2L-MS-120V-6C is compatible with surface mounting applications. Operators may access thru-holes at the back of the unit during installation. Four additional knockouts are available, which caters to different types of customer-preferred mounting requirements.
Note on Environment:
Sunlight and visible light fixtures do not impact the effectiveness of the disinfecting on this UVC sanitation product. Metal halide, high pressure sodium, fluorescent, and LED light fixtures can be left on. The UV radiation emitted from this product is not disrupted by any type of lighting in the environment. Put simply, NO it DOES NOT need to be dark in the area you plan to disinfect. The UV radiation is harmful to the eyes and skin, and that is why you should not be in the area while it is in operation. Please see user manual for additional safety information.
Suggested Applications:
Sanitation, disinfection, retail spaces, lobbies, commercial locations, industrial parks, schools, public transportation hubs, airports, office buildings, medical centers, casinos, labs, hospitals, work stations, hotels and more; kill 99% of viruses, bacteria, mold and spores.
Larson Electronics is a manufacturer and as such can build stationary and portable transformer systems to your Specifications. Although we carry several models of power distribution transformer systems, we can deliver custom ordered units almost as quickly as our prebuilt units. If this model does not meet your needs, please contact us at 1(647) 254-9757 or
Contact info@purilite.ca
to discuss your specific requirements.
Specifications
Unit Type: UV-C Germicidal Fluorescent Light
Lamp Technology: UV Fluorescent - Sanitation
Lamp Qty: (2) 18" Lamps
Dimensions: 24.93"-L x 5.32"-D x 3.37"-H
Weight: -
Voltage: 120/277V AC via Direct Wiring, or 120V AC w/ Included 6' 18/3 SJTW Cord and 5-15P Cord Cap
Total Watts: 36W
Single-lamp Watts: 18W
Total UV Output: 10W
Single-lamp UV Output: 5W
UV Irradiance: -
Expected Lifespan: 8,000+ Hours
UV Wavelength: 200nm - 280nm (254nm)
Maximum Area Coverage: -
Lamp Type: T5 Fluorescent
Lamp Base: 4-pin
Replacement Lamp: -
Beam Angle: 180º
Light Configuration: Flood
Power Efficiency: -
Power Factor: -
Built-in Switch: On/Off
Sensor Type: PIR Motion Sensor
Remote Functions: On/Off, 15-minute Runtime, 30-minute Runtime
Amps: 0.3A @ 120V
Ambient Operating Temp: -
Housing Material: 16 Gauge Powder Coated Steel w/ White Finish
Mounting: Surface via Back-located Thru-holes; (4) Additional Mounting Knockouts Available
Wiring: 6' 18/3 SJTW Cord w/ Cord Cap
Cord Cap:
Knockouts: (2) 1/2" NPT Hubs @ Side for Direct Wiring to 120/277V AC
