Description
PuriLite suggests you place an order directly with us for large Larson orders due to the potential customization requirements. Please call us at 1(647) 254-9757 to place your order. If you prefer to place your order online, a PuriLite agent will be in touch with you to discuss any custom options.

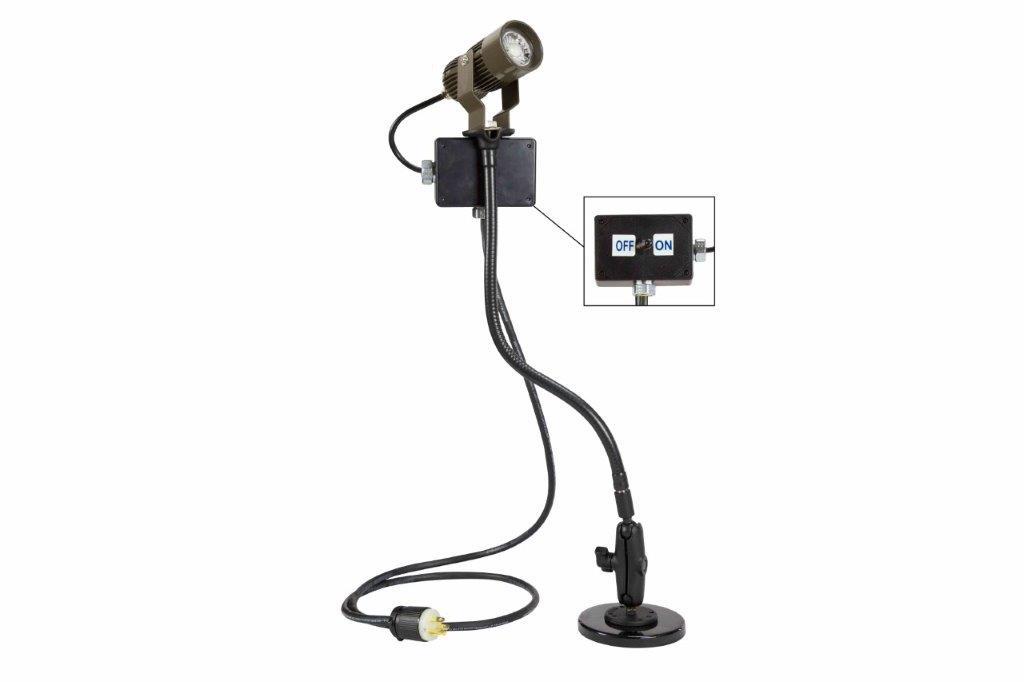

The Larson Electronics IND-ML-BLT18W-GNM-10C LED Machine Light is a compact lighting solution for illumination around CNC machines and fabrication equipment and in industrial locations. This powerful LED light produces 1,530 lumens and features a double magnetic ball joint gooseneck mount for versatile positioning and installation. The IP65 rated lamp comes with a 10' cord and an inline on/off switch.
The IND-ML-BLT18W-GNM-10C is designed for machining lighting in rugged work stations and environments. This LED light is offered in a focused 25° spot beam for distance or 60° flood beam for a diffused wide angle beam. The housing is constructed of precision machined aluminum for excellent strength and durability, powder coated bronze for corrosion resistance, and is rated IP65 for ingress protection against direct exposure to water jets from all directions.
The IND-ML-BLT18W-GNM-10C provides a cool white light output with a color temperature of 5000K and color rendering index of 85 for maximum illumination. The high output, cool running operation and good color rendering properties of this light makes it an ideal replacement for older, bulkier, and less reliable incandescent and halogen lamps.
Available in a 25° spot beam or 60° flood beam
Durability:
The IND-ML-BLT18W-GNM-10C industrial grade LED light is constructed of machined aluminum for high strength and durability with a powder coated finish for increased corrosion resistance. Equipped with an accessible inline on/off switch, the housing is IP65 rated, providing protection against intrusion into the housing from oils and water directly sprayed on the housing from all directions. This LED light features an impact resistant polycarbonate lens for increased safety compared to glass lenses. This design is weather resistant, suitable for indoor or outdoor applications, and ideal for areas where wet conditions are commonly encountered.
LED Benefits:
Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life.
LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps.
High Output LEDs:
The LEDs in this unit are Cree units that have been chosen for their high lumen per watt ratio and extreme long life. These Cree LEDs provide over 85 lumens per watt effective lumen output and have a 70% lumen retention at 50,000 hours, giving them better efficiency and operational life than traditional light sources. These lights are equipped with high purity optics and available in a 25° spotlight configuration for long beam length or 60° flood configuration for wide area coverage. Utilizing a polycarbonate lens, this fixture produces a higher light output than similar fixtures equipped with thicker glass lenses. The IND-ML-BLT18W-GNM-10C has is offered in 5,000K cool white with a color rendering of 85.
Voltage:
These light are universal voltage capable and can be operated with 100-277V AC, 50/60Hz. We also offer a low voltage version of this LED fixture that operates on low voltage from 11-25 volts AC/DC. This light draws 0.15A at 120V, 0.075A at 240V, 0.065A at 277V, 1.5A at 12V, or 0.75A at 24V.
5-15 Straight Blade Plug
L5-15 Twist Lock Plug
L6-15 Twist Lock Plug
UK BS1363 Straight Blade Plug
Intl Schuko 2-Pin Plug
Flying Leads / Pigtail Wires
Wiring/Plug:
This LED light is equipped with 10 feet of cord that is fitted with an industrial grade cord cap for easy connection to common wall outlets. Plug options include standard 5-15 15 amp straight blade plug for 110V wall outlets with ground, standard 6-15 15 amp straight blade plug for 220-240V wall outlets with ground, NEMA L5-15 15 amp twist lock plug for 125V twist lock outlets, NEMA L6-15 15 amp twist lock plug for 240V twist lock outlets, British BS1363 13 amp fused 3-blade plug for United Kingdom outlets, or a two pin 16 amp rated Schuko plug with ground contact and socket for European outlets up to 250V. Alternatively, we can provide flying leads with no plug for hard wire applications or for operators who prefer to wire in user provided cord caps. Please choose pigtail option below for flying leads with no plug.
Mounting:
The mounting assembly for this LED lamp consists of a 200-pound grip magnetic base, flexible goose-neck arm and two ball joints that provide 360 degrees of rotation and 180 degrees of tilt/pivot.
Applications:
Machine lighting, CNC machining, fabrication, manufacturing, machining, work light, industrial and more.
Contact info@purilite.ca for more information about our custom options tailored to meet your specific industry needs.
Specifications
Unit Type: LED Machine Light
Lamp Technology: Cree LED
Lamp Dimensions: Â 2.3" Diam" x 4.75"-Length
Weight: -
Voltage: 120-277V AC 50/60 Hz or 11-25V AC/DC
Total Watts: 18W
Total Lumens: 1,530 lms
Luminous Efficacy: 85 lm/W
Lamp Life: 50,000+ Hours
LED Color Temperature: 5,000K
Color Rendering Index: 85 CRI
Lamp Type: -
Lamp Base: -
Replacement Lamp: -
Beam Type: 25° Spot or 60° Flood
Lighting Configuration: Â -
Power Efficiency: -
Power Factor:
Switch:
Amps: 0.15A @ 120V, 0.075A @ 240V, 0.065A @ 277V; 1.5A @ 12V, 0.75A @ 24V
Ambient Operating Temp Range: -40° C to +85°C
Typical Case Temperature:
Housing Material:
Housing Finish: Powder Coated Bronze
Lens Material: Polycarbonate
Mounting: Magnet, Flexible Neck, Dual Ball Joint
Wiring: 10' Cord w/ General-area Cord Cap
Cord Cap Options: 5-15 Straight, 6-15 Straight, L5-15 Twist, L6-15 Twist, UK BS1363, Intl. Schuko, Pigtail
The Larson Electronics IND-ML-BLT18W-GNM-10C LED Machine Light is a compact lighting solution for illumination around CNC machines and fabrication equipment and in industrial locations. This powerful LED light produces 1,530 lumens and features a double magnetic ball joint gooseneck mount for versatile positioning and installation. The IP65 rated lamp comes with a 10' cord and an inline on/off switch.
The IND-ML-BLT18W-GNM-10C is designed for machining lighting in rugged work stations and environments. This LED light is offered in a focused 25° spot beam for distance or 60° flood beam for a diffused wide angle beam. The housing is constructed of precision machined aluminum for excellent strength and durability, powder coated bronze for corrosion resistance, and is rated IP65 for ingress protection against direct exposure to water jets from all directions.
The IND-ML-BLT18W-GNM-10C provides a cool white light output with a color temperature of 5000K and color rendering index of 85 for maximum illumination. The high output, cool running operation and good color rendering properties of this light makes it an ideal replacement for older, bulkier, and less reliable incandescent and halogen lamps.
Available in a 25° spot beam or 60° flood beam
Durability:
The IND-ML-BLT18W-GNM-10C industrial grade LED light is constructed of machined aluminum for high strength and durability with a powder coated finish for increased corrosion resistance. Equipped with an accessible inline on/off switch, the housing is IP65 rated, providing protection against intrusion into the housing from oils and water directly sprayed on the housing from all directions. This LED light features an impact resistant polycarbonate lens for increased safety compared to glass lenses. This design is weather resistant, suitable for indoor or outdoor applications, and ideal for areas where wet conditions are commonly encountered.
LED Benefits:
Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life.
LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps.
High Output LEDs:
The LEDs in this unit are Cree units that have been chosen for their high lumen per watt ratio and extreme long life. These Cree LEDs provide over 85 lumens per watt effective lumen output and have a 70% lumen retention at 50,000 hours, giving them better efficiency and operational life than traditional light sources. These lights are equipped with high purity optics and available in a 25° spotlight configuration for long beam length or 60° flood configuration for wide area coverage. Utilizing a polycarbonate lens, this fixture produces a higher light output than similar fixtures equipped with thicker glass lenses. The IND-ML-BLT18W-GNM-10C has is offered in 5,000K cool white with a color rendering of 85.
Voltage:
These light are universal voltage capable and can be operated with 100-277V AC, 50/60Hz. We also offer a low voltage version of this LED fixture that operates on low voltage from 11-25 volts AC/DC. This light draws 0.15A at 120V, 0.075A at 240V, 0.065A at 277V, 1.5A at 12V, or 0.75A at 24V.
5-15 Straight Blade Plug
L5-15 Twist Lock Plug
L6-15 Twist Lock Plug
UK BS1363 Straight Blade Plug
Intl Schuko 2-Pin Plug
Flying Leads / Pigtail Wires
Wiring/Plug:
This LED light is equipped with 10 feet of cord that is fitted with an industrial grade cord cap for easy connection to common wall outlets. Plug options include standard 5-15 15 amp straight blade plug for 110V wall outlets with ground, standard 6-15 15 amp straight blade plug for 220-240V wall outlets with ground, NEMA L5-15 15 amp twist lock plug for 125V twist lock outlets, NEMA L6-15 15 amp twist lock plug for 240V twist lock outlets, British BS1363 13 amp fused 3-blade plug for United Kingdom outlets, or a two pin 16 amp rated Schuko plug with ground contact and socket for European outlets up to 250V. Alternatively, we can provide flying leads with no plug for hard wire applications or for operators who prefer to wire in user provided cord caps. Please choose pigtail option below for flying leads with no plug.
Mounting:
The mounting assembly for this LED lamp consists of a 200-pound grip magnetic base, flexible goose-neck arm and two ball joints that provide 360 degrees of rotation and 180 degrees of tilt/pivot.
Applications:
Machine lighting, CNC machining, fabrication, manufacturing, machining, work light, industrial and more.
Contact info@purilite.ca for more information about our custom options tailored to meet your specific industry needs.
Specifications
Unit Type: LED Machine Light
Lamp Technology: Cree LED
Lamp Dimensions: Â 2.3" Diam" x 4.75"-Length
Weight: -
Voltage: 120-277V AC 50/60 Hz or 11-25V AC/DC
Total Watts: 18W
Total Lumens: 1,530 lms
Luminous Efficacy: 85 lm/W
Lamp Life: 50,000+ Hours
LED Color Temperature: 5,000K
Color Rendering Index: 85 CRI
Lamp Type: -
Lamp Base: -
Replacement Lamp: -
Beam Type: 25° Spot or 60° Flood
Lighting Configuration: Â -
Power Efficiency: -
Power Factor:
Switch:
Amps: 0.15A @ 120V, 0.075A @ 240V, 0.065A @ 277V; 1.5A @ 12V, 0.75A @ 24V
Ambient Operating Temp Range: -40° C to +85°C
Typical Case Temperature:
Housing Material:
Housing Finish: Powder Coated Bronze
Lens Material: Polycarbonate
Mounting: Magnet, Flexible Neck, Dual Ball Joint
Wiring: 10' Cord w/ General-area Cord Cap
Cord Cap Options: 5-15 Straight, 6-15 Straight, L5-15 Twist, L6-15 Twist, UK BS1363, Intl. Schuko, Pigtail
