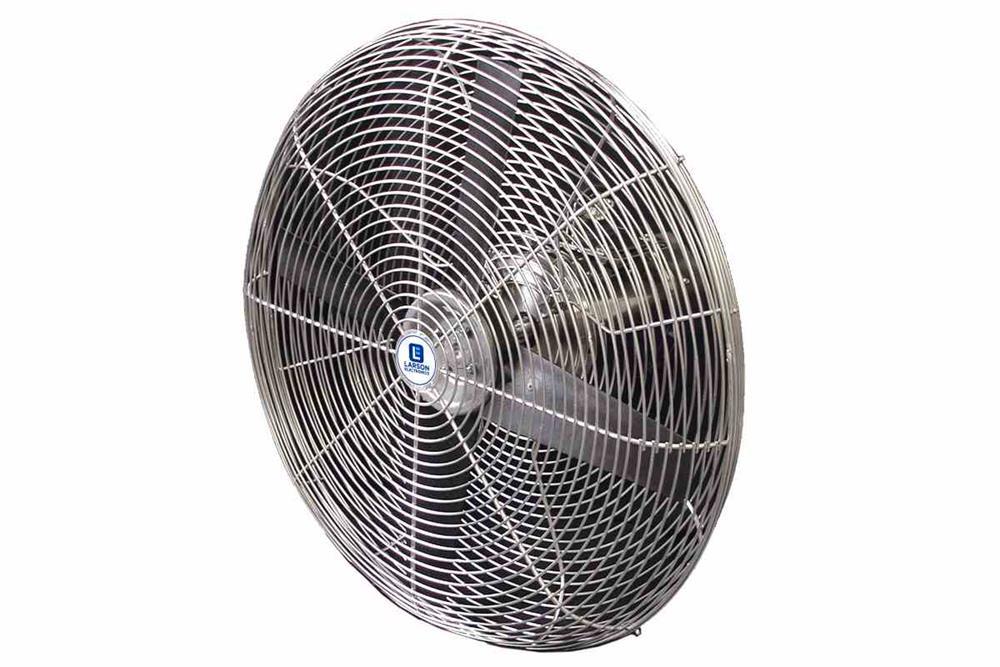

24" High Velocity Washdown Fan - 115/230V 60 Hz - 7350 CFM - 1/2 HP - Poly Blade - Epoxy Motor

LARSON ELECTRONICSSKU: PL3-IND-WDF-24-ECM-PB-1PH-0.5HP
filler

Price:
Sale price$3,374.00

Description

Specifications / Additional Information
IND-WDF-24-ECM-PB-1PH-0.5HP Industrial Direct Drive Fan Ratings
Unit Type: Fixed Washdown Duty Fan High Velocity Fan
Blade Diameter: 24" OSHA Stainless Steel Guard
Weight: 44 lbs Epoxy Coated Motor
Voltage: 115/230V AC 60 Hz Corrosion Resistant
Phase: 1 Thermal Protection
HP: 1/2 IP55
CFM: 7350 (Free Air)
Maximum RPM: 1725
Speeds: 1
Oscillating: NA
Wings: 4
Nameplate Amps: 7.4A/4.3A-3.7A
Materials: Polypropylene (Blade), Stainless Steel
Mount: Fixed/Permanent, SS Wall Mount
Guard Spacing: 1/2" OSHA
Color: Metallic (Housing/Guard), Black (Blade)
' Product Overview '
The Larson Electronics IND-WDF-24-ECM-PB-1PH-0.5HP High Velocity Washdown Duty Circulation Fan is designed for use in buildings where washdown sessions involving corrosive agents and abrasive chemicals are conducted on a regular basis. Compatible with single-phase 115/230V 60 Hz, this direct-drive non-oscillating fan provides 7,350 CFM (free air) via 4 wings. Constructed of stainless steel and polypropylene, the IP55-rated unit is suitable for fixed wall mounting applications. The IND-WDF-24-ECM-PB-1PH-0.5HP is a circulation fan for washdown environments and industrial facilities. This direct-drive system operates on single-phase 115/230V AC 60 Hz. During use, the 1/2 HP unit offers up to 7,350 CFM (free air) and a maximum RPM of 1,725. The single-speed, non-oscillating fan contains a 24" blade diameter and four wings for powerful circulation. These fans last longer in washdown locations, compared to non-heavy duty models (with steel or aluminum builds) that break down or require immediate replacement after 2 months of use. This unit is constructed of stainless steel (housing and guard) and polypropylene (blade), with an epoxy coated motor. Equipped with an IP55 rating and thermal protection, the direct drive fan is corrosion resistant and contains 1/2" of guard spacing for OSHA compliance. The metallic industrial fan should not be used with VFDs and speed control devices. Mount: The IND-WDF-24-ECM-PB-1PH-0.5HP is designed for fixed or permanent mounting applications. For best results, stainless steel wall mounting configurations are recommended for this unit. Applications: Washdown locations, chemical processing, industrial sites, food processing plants, warehouses, harsh locations and more.
